    Interne referentie: SWE-40453230
    Technische Fiche:

    THE 5TH GENERATION OF THE ULTIMATE FAMILY

    The 5th generation of the Ultimate Series feature a complete toolbox for today’s lighting designers. The perfectly balanced atmospheric haze effect envisioned for lighting productions is always reliably achievable. By separating the compressor and haze units, the Ultimate 3000 operates quietly on stage and generates a unique atmospheric canvas with refined gain of optical clarity, light reflectivity and color brightness. High output together with the Crystal Haze fluids’s long hang time and small particle size effortlessly brings the preferred calm haze to your venue.

    CHARACTER

    Key features of the Ultimate 3000

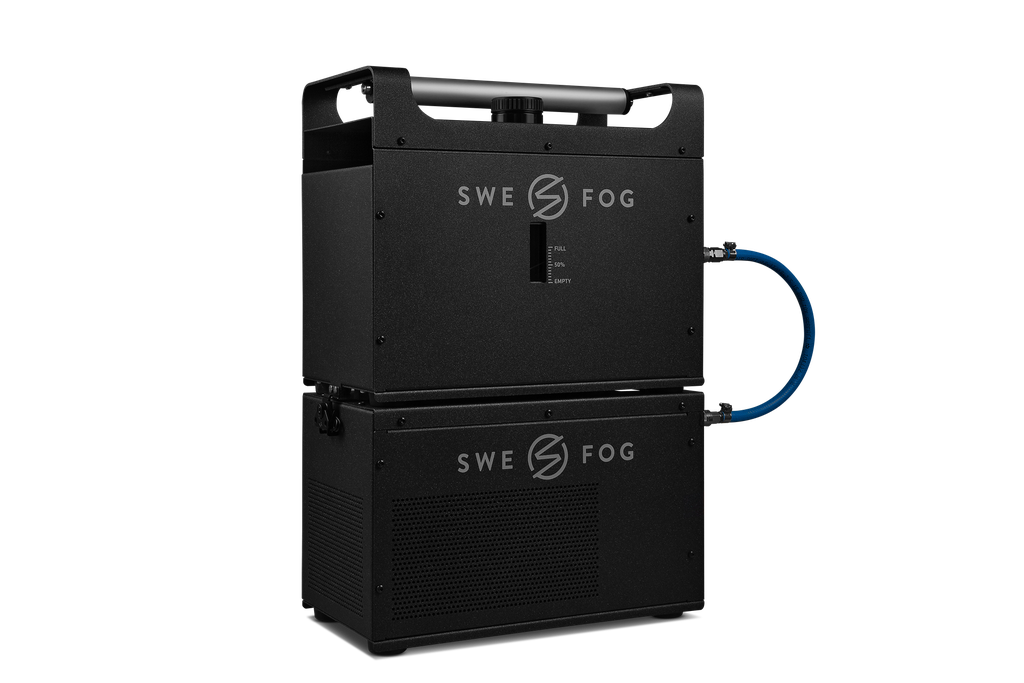

    SEPARATE COMPRESSOR FOR ULTRA SILENT OPERATION

    Compressor and haze units can be used as one, compact hazer, or placed separately up to 25 m apart. The haze unit’s noise emission at 1 m (3.3 ft) is X dB.

    TRUE COLOR™

    Colours are key for great lighting design both live and recorded. TrueColour fluids deliver the full palette from smooth and subtle pastels to rich and vibrant saturated colors. Thus, ensuring that costumes, set pieces and ambience tones will render naturally in true colors. Bright vibrant colors to soft pastel shades, and varieties of warm amber shades maintain high CRI values.

    HIGH-END QUALITY MATERIALS

    Ultimate 2000 is handcrafted and manufactured in Sweden. The compact hazer is assembled and tested by our experienced technicians, for complete effect consistency and durability throughout your career or when renting it. With the True Color™ series of Swefog hazers even the last show will look as initially designed.

    POWER ON AND GO

    Ultimate 2000 can instantly be switched on, no warm-up time is required and can be operated continuously both manually and through DMX.

    LONG HANG TIME

    The haze from Swefog’s C-series of fluids have a hanging time of as much as 4 hours.

    CALM HAZE

    True Color™ systems help you create calm atmospheric effects with little preparation. Leaving the hazer on for some time before the show allow even density levels of haze to be equally distributed throughout the stage area. The refined optical clarity and colour rendering originate from the TrueColour haze particles and calmness of the atmospheric effect. Hence, preventing irregularities and incomplete effects. Smooth dimming and precise degrees of zoom are accurately experienced on calm haze.

    LOW FLUID CONSUPTION

    Ultimate 2000 uses only 50 ml (1.86 oz) of fluid per hour. Resulting in a total running time of 40 hours from its 2 L (0.66 US gallon) reservoir.



    SPECIFICATIONS

    Fluid consumption : 0.05 ltr per hour

    Reservoir capacity : 2.0 ltr (0.53 US gallon)

    Continuous running time : 40 hours

    Haze colour : True white

    Particle size :  0,7 – 1 micron

    Continuous output : Yes

    Included air hoses : 1 x 0.5 m (20”) and 1 x 10 m (33 ft)

    Optional air hoses :  16 m (52.5 ft) and 25 m (82 ft)

    Warm-up time : None

    Fluid types : Crystal Haze Fluid, Ultimate C Fluid & C-XL Fluid

    Operating voltage : 230 V, 50 Hz

    Power consumption haze unit :  40 W

    Power consumption compressor unit : 540 W

    DIMENSIONS & WEIGHT

    Compressor unit :

    Length 41.7 cm (16.4”)

    Width 20.3 cm (8.0”)

    Height 29.3 cm (11.5”)

    Weight 14.7 kg (32.4 lb)

    Haze unit :

    Length 41 cm (15.5”)

    Width 20.3 cm (8.0”)

    Height 33.5 cm (13.2”)

    Weight 11.9 kg (26.2 lb)

    Both units together :

    Length 41.7 cm (16.4”)

    Width 20.3 cm (8.0”)

    Height 57.5 cm (22.6”)

    Weight 26.6 kg (58.6 lb)
