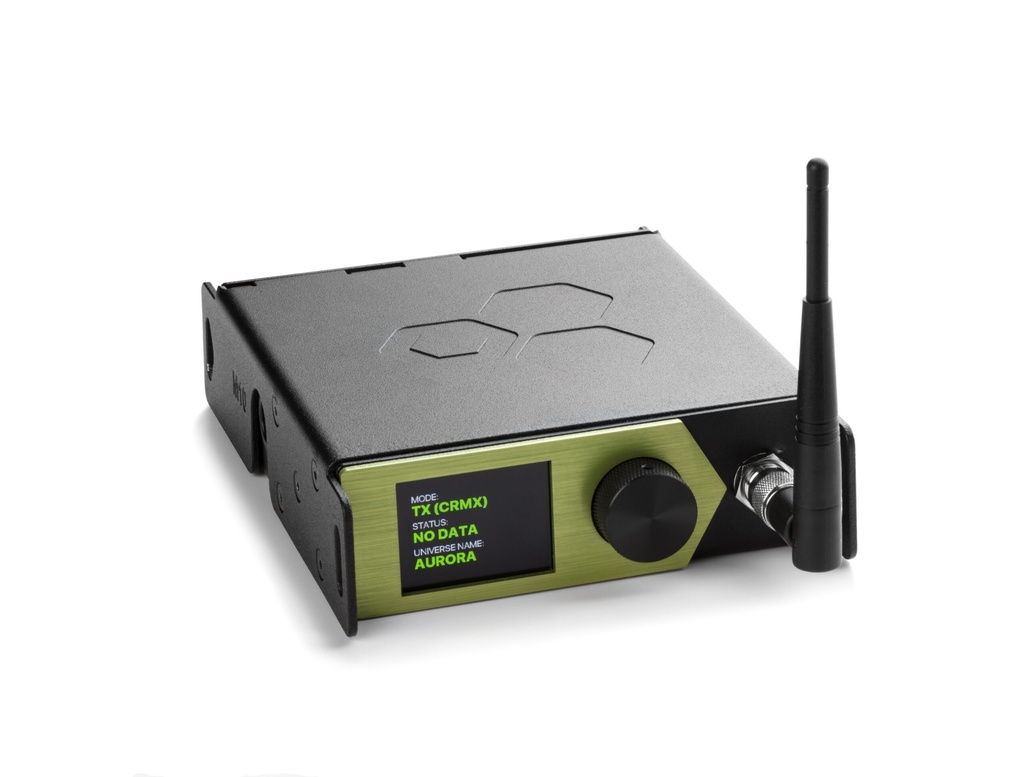

LumenRadio Aurora - Single Universe DMX/RDM Transc. (RX/TX)

https://www.avl.be/web/image/product.template/2465/image_1920?unique=3a2358e

    Deze combinatie bestaat niet.

    Aanmelden

    Prijzen exclusief btw
    Algemene voorwaarden


    Interne referentie: LUM-800-2212
    Technische Fiche:

    Aurora is the flexible CRMX transceiver with a multitude of connectivity options, powerful enough for single universe transmissions as well as being a receiver packing the most advanced features. Capable of transmitting or receiving one universe of DMX/RDM, it is the flexible unit that can also move between universes. The enhanced radio design allows for record breaking ranges with a rock solid experience.

    The onboard WiFi can receive sACN and Art-Net, while the Bluetooth interface enables configuration via the CRMX Toolbox App and streaming of DMX. The 5-pin XLR can be used as input or output for DMX/RDM from any source making the Aurora act as a protocol converter.

    With the intuitive color screen it’s easier than ever to configure locally, using the rotary knob to move between setting and universes. For even more control the CRMX Toolbox App is capable of configuration from any smart device.

    LumenRadio continues to deliver the most reliable Wireless DMX with both CRMX and W-DMX compatibility, featuring Linking Key* along with industry standard 5 ms latency, error correction and 128 bit encryption at full refresh rate for a full universe.

    FEATURES
    • Single Universe CRMX Flex unit
    • DMX/RDM, sACN and Art-Net 1-3
    • 5 GHz WiFi and Bluetooth
    • Configuration via App or Front panel
    • Compatible with CRMX and W-DMX G3/G4s

    Supported Protocols

    • DMX / RDM
    • sACN / Art-Net 1-3
    • CRMX
    • W-DMX G3 / G4s
    • WiFi IEEE802.11b/g/n/ac
    • Bluetooth 5.0

     RF Characteristics

    • Frequency range: 2402-2480 MHz
    • Radio module: TimoTwo
    • 5ms latency
    • 128-bit encryption
    • Forward Error Correction

    Connectors

    • Antenna: RP-TNC
    • DMX: 5-pin XLR female
    • DC: 2.5mm/5.5mm Barrel connector
    • AC: powerCON Tru1

    Power

    • DC 10-20v
    • AC 100-240 VAC

    Physical

    • IP20 Aluminium enclosure
    • Front panel color screen and rotary knob
    • M10 and ⅜” Threads
    • Rack and wall mount accessories
    • V-Lock battery mount accessory
    • 14 x 20 x 4.4 cm
