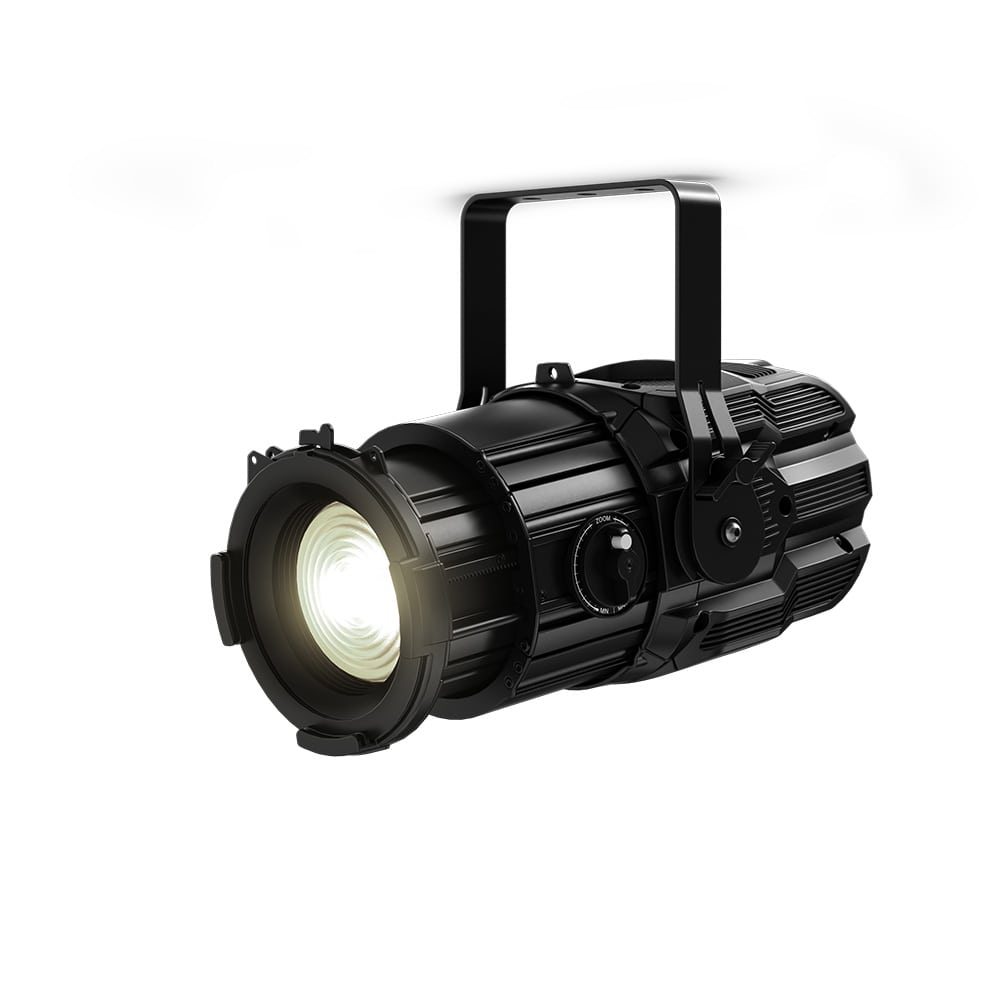

TENORE 3 WH

The new conventional projector with Fresnel or PC lens, white source and Italian design.
High performance and low noise.


single white source (3000 K - 4000 K - 5700 K)

Ø 130 mm Fresnel or PC lens

Lumens output: 7,400 lm

noise management

Fresnel or antihalo lens


Technical data

TENORE 3 WH is the un-conventional evolution to the conventional series of static LED lights.
Thanks its white source, this conventional projector offers maximum versatility and lighting quality with an optimal color rendering up to 95.
With a power consumption of 145 W and 8,700 lumen output, Tenore 3 WH represents a perfect example of uncompromising professional lighting performance.
To meet the needs of theater and television locations, Tenore allows noise control with 4 fan management modes up to 22dBA.

Output

• Single white 3000 K LED source
- Lumens output: 7,400 lm (Fresnel lens)
- Lumens output: 2,300 lm (PC lens)
- CRI: >95

• Single white 5700 K LED source
- Lumens output: 8,700 lm (Fresnel lens)
- Lumens output: 2,600 lm (PC lens)
- CRI: >90

• Also available with 4000 K LED
- Lumens output: 8,100 lm (Fresnel lens)
- Lumens output: 2,500 lm (PC lens)
- CRI: >95

• LED Lifespan: 20,000 hours (70% lumen output)

Optical group

• Ø 130 mm Fresnel lens or Antihalo (PC) lens

• Linear zoom
- 13° - 77° with Frensel lens
- 7° - 45° with PC lens

Dimmer

• PWM Dimming technology

Control

• LCD graphic display + Jog Shuttle

• RDM/DMX 512 protocols

• ‘Standard’, ‘Silent’, ‘Ultra Silent’ and ‘Automatic’ fan modes

• Noise level
- Fan Standard: 24dBA @ 1m (normal operation, 100% power)
- Fan Silent: 23dBA @ 1m (normal operation, 100% power)
- Fan Ultra Silent: 22dBA @ 1m (normal operation, 95% power)
- Automatic: fans adapt to operational status (output power priority)

• Firmware updatable via DTS firmware uploader dongle

DMX

• 4 DMX channels (Default)
- Shutter; Dimmer 16bit; Fixture Control channel

• 1 DMX channels
- Dimmer 8bit

• “Fine” mode
- Dimmer 16bit


Power supply

• Wide range100/240 Vac 50-60 Hz

• Power consumption: 145 W max / 230Vac

• Power Factor: PF >0.95

Connections

• DMX: XLR 5 pole In/Out panel connectors

• Power supply: PowerCON TRUE1 In/Out panel connectors

Circuits protections

Overvoltage and overtemperature circuits protection

Operating temperature

-10° / 45° C

Storage temperature

-20° / 60° C

Physical

• IP20

• Weight:
- FR - 7.8 Kg (17.1 lbs)
- PC - 8.6 Kg (19 lbs)

• Finishing: Black

Accessories included

• 1x PowerCON TRUE1 female cable connector (code 0520P066)

• 1x XLR 5 pins female cable connector (code 0508B147)

• 1x XLR 5 pins male cable connector (code 0508B148)

• 1x Filter frame Black finishing - already installed on the projector (code 02M093424.49)

Accessories on request

• Barndoor 4 leaf Black finishing (code 03.TBD06.49)

• Barndoor 8 leaf Black finishing (code 03.TBD08.49)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Aliscaf clamp for Ø 48-51 mm tube-max load 100 Kg 8code 0521A033)

• Professional G-QUICK clamp - max load 100 Kg (code 0521A037)

• Safety cable 3 x 600 mm - BGV-C1 certified (code 0521A049)
- Single stranded: Max 20 Kg (44 lbs)
- Double stranded: Max 30 Kg (66 lbs)

• Safety cable for Barndoor / FIlterframe - Ø 0,8mm (code 0521A048)

• DTS firmware uploader dongle (code 03.LA.206)
