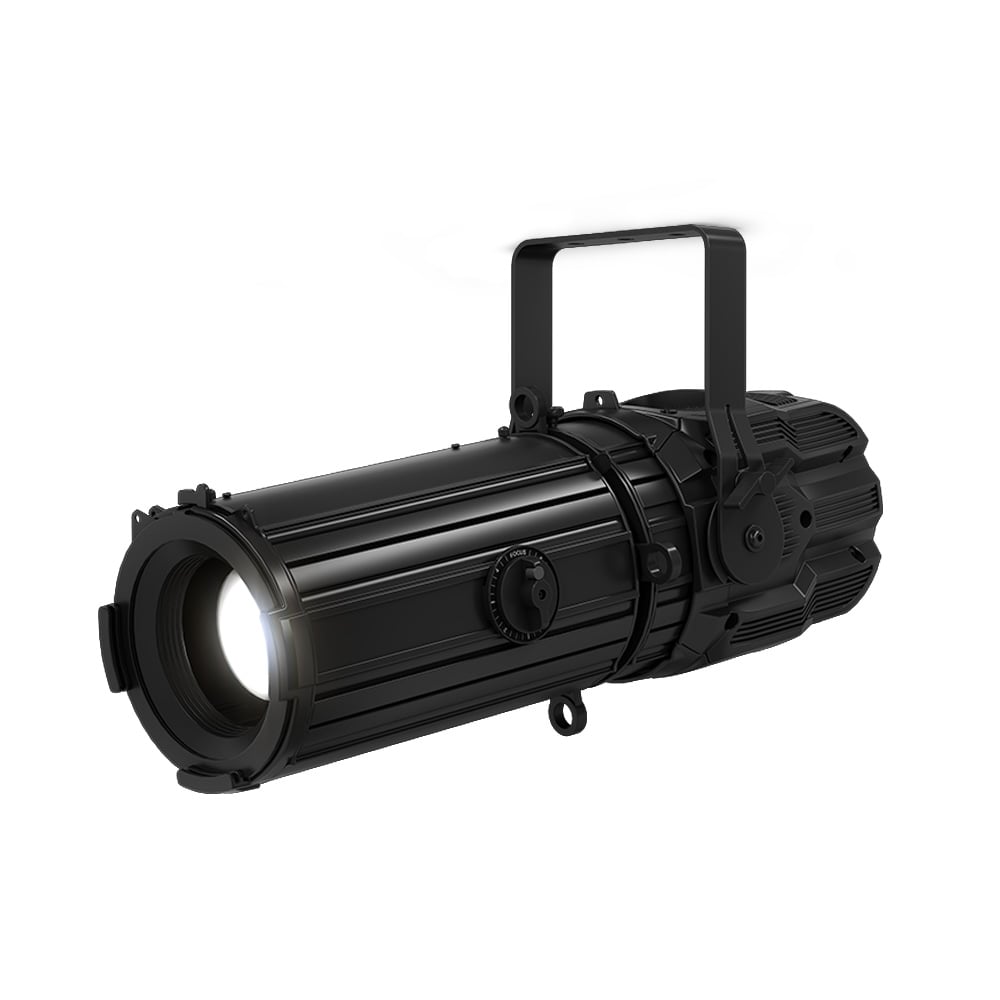

SOPRANO 3 WH

Ellipsoidal projector with interchangeable optics and white LED source.
High performance and low noise.

Highlights

single white source (3000 K - 4000 K - 5700 K)

interchangeable optics

lumen output: up to 6.800 lm

CRI up to 95

noise management

Framing system composed of 4
symmetric blades

Technical data

SOPRANO 3 WH is the new ellipsoidal fixture in the DTS portfolio. The product features an innovative Italian design and a zoom barrel that can be applied to any LED source in the Soprano range. Thanks its white source, this conventional projector offers maximum versatility and lighting quality with an optimal color rendering up to 95.
As for their framing system, the four blades equipped on Soprano’s optics are fixed within the body of the barrel itself so that the user can never lose them. Framing distortion is at a minimum, with a projection quality that rivals any modern spot/profile moving head.
To meet the needs of theater and television locations, Tenore allows noise control with 4 fan management modes up to 22dBA.

Output

• Single white 3000 K LED source
- Lumens Output: 4,900 lm
(Optical group 15-30)
- Lumens Output: 5,800 lm
(Optical group 25-50)

• CRI >95

• Single white 4000 K LED source
- Lumens output: 5,300 lm
(Optical group 15-30)
- Lumens output: 6,100 lm
(Optical group 25-50)

• CRI: >95

• Single white 5700 K LED source
- Lumens Output: 5,700 lm
(Optical group 15-30)
-Lumens Output: 6,800 lm
(Optical group 25-50)

• CRI >90

• LED Lifespan:20,000 hours
(70% lumen output)

Optical group

• Changeable optics (Led engine and
optical group are sold separately)

• Optical Group 15-30
- 15°-30° linear zoom

• Optical Group 25-50
- 21°-46° linear zoom

Framing system

• Framing system composed of 4 symmetric blades
Blades are integrated in the optical
group (not removable)

• Blades operate on three discrete planes

• 64° full system rotation (+/- 32°)

Gobos

• Ø external (ED): 80 mm + 0.2/-0.2 mm

• Ø of image (ID): 50 mm

• Thickness: from 0.2 to 1.5 mm

Dimmer

• PWM Dimming technology

Control

• LCD graphic display + Jog Shuttle

• RDM/DMX 512 protocols

• ‘Standard’, ‘Silent’, ‘Ultra Silent’ and
‘Automatic’ fan modes Noise level

- Standard: 24dBA @ 1m
(normal operation, 100% power)

- Silent: 23dBA @ 1m
(normal operation, 100% power)

- Ultra Silent: 22dBA @ 1m
(normal operation, 95% power)

- Automatic: fans adapt to operational
status (output power priority)

• Firmware updatable via DTS firmware
uploader dongle

DMX

• 3 DMX modes:

4 DMX channels (Default) -Shutter, Dimmer 16bit and Fixture Control channe
1 DMX channel - Dimmer 8bit
_ “Fine” mode - Dimmer 16bit


Power supply

• Wide range100/240 Vac 50-60 Hz

• Power consumption: 145 W max / 230Vac

• Power Factor: PF >0.95

Connections

• DMX: XLR 5 pole In/Out panel connectors

• Power supply: PowerCON TRUE1 In/Out panel connectors

Circuits protections

Overvoltage and overtemperature circuits protection

Operating temperature

-10° / 45° C

Storage temperature

-20° / 60° C

Physical

• IP20

• LED engine weight:
- 6.6 Kg (14.6 lbs)

• Optical group weight:
- 15-30: 5.2 Kg (11.5 lbs)
- 25-50: 5.9 Kg (13 lbs)

• Finishing: Black

Accessories included

• 1x PowerCON TRUE1 female cable connector (code 0520P066)

• 1x XLR 5 pins female cable connector (code 0508B147)

• 1x XLR 5 pins male cable connector (code 0508B148)

• 1x Filter frame Black finishing - already installed on the projector (code 02M093424.49)

Accessories on request

• Gobo holder (code 03.TA229)

• Gobo Holder + Filter Soft Edge (03.TA230)

• Iris/Diaphram (code 03.TA228)

• Barndoor 4 leaf Black finishing (code 03.TBD06.49)

• Barndoor 8 leaf Black finishing (code 03.TBD08.49)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Aliscaf clamp for Ø 48-51 mm tube-max load 100 Kg 8code 0521A033)

• Professional G-QUICK clamp - max load 100 Kg (code 0521A037)

• Safety cable 3 x 600 mm - BGV-C1 certified (code 0521A049)
- Single stranded: Max 20 Kg (44 lbs)
- Double stranded: Max 30 Kg (66 lbs)

• Safety cable for Barndoor / FIlterframe - Ø 0,8mm (code 0521A048)

• DTS firmware uploader dongle (code 03.LA.206)
