Technische Fiche:

adjustable zoom 12° - 91°

noiseless

manual or DMX control

available with 3000K, 4000K or 5000K LED source

easy maintanance

long life LED (50,000 hours)


Technical data

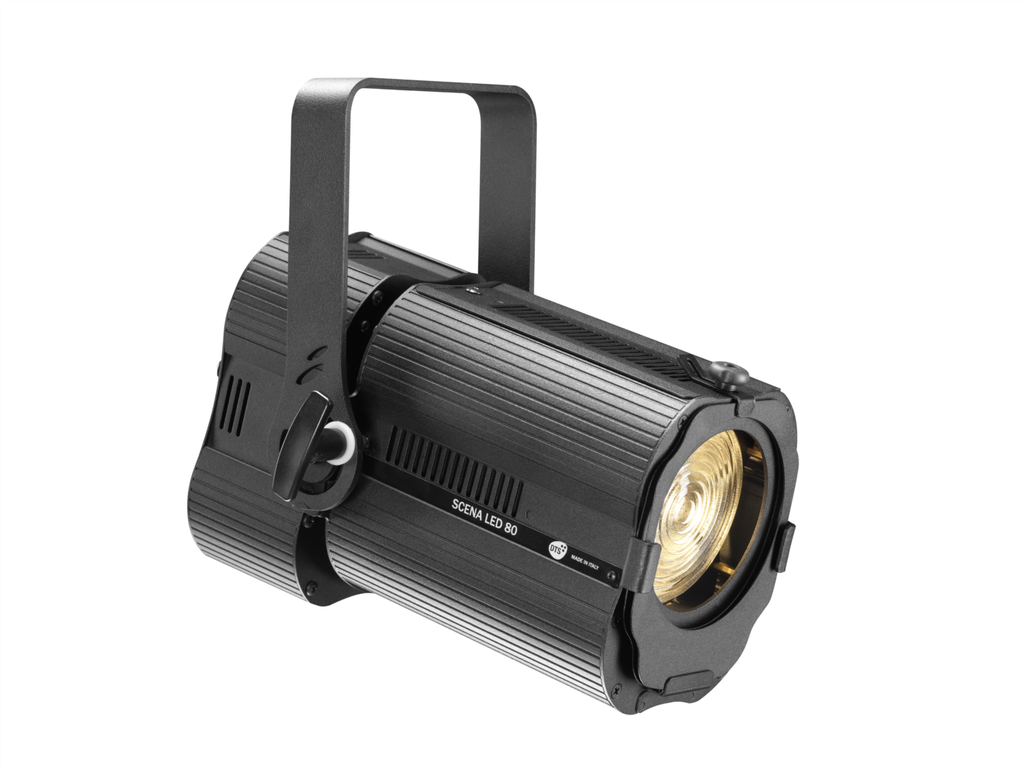

SCENA LED 80 is a LED-based projector in a very compact and lightweight size. The unit is equipped with an high efficiency 80 W white LED source, available with different color temperatures: 3000K, 4000K or 5000K. The unit is suitable for small to medium TV studios, theatres or museums and it is a real alternative to 1000 W conventional lights. Thanks to a dedicated kit is possible to instal the fixture on electrified rails.

Output

• Single White 3000 K LED source

• Lumen output (3000 K): up to 6,923

• CRI > 90

• Also available with 4000 K and 5000 K LED

• LED lifespan: 50,000 hours (70% lumen output)

Optical group

• Ø 112 mm Antihalo (PC) lens

• 12°- 91° linear zoom

Control

• DMX 512 / RDM or Manual control

• Multi-function 4-digit 7-segment LED display + 4 soft keys

• Firmware updatable via DTS firmware uploader dongle

DMX

• 2 DMX channels (default)

• 3 DMX channels

• 1 DMX channel

Power supply

• Electronic Wide-range 100-240Vac 50-60 Hz;

• Power consumption: 100 W max

• Power Factor: PF >0.95

Connections

• Power supply: PowerCON In&Out panel connectors

• DMX: XLR 5-pole In&Out panel connectors


Circuits protections

Overvoltage and overtemperature circuits protection

Operating temperature

-10° / 40° C

Physical

• IP20

• Weight: 4.2 Kg (9.3 lbs)

• Finishing: Black

Accessories included

• 1 x PowerCON female cable connector (code 0520P014)

• 1 x XLR 5 pins male cable connector (code 0508B028)

• 1 x XLR 5 pins female cable connector (code 0508B027)

• 1 x FilterframeBlack finishing - already installed on the projector (code 02M00422.46)

Accessories on request

• Barndoor Black finishing (code 03.TA206)

• Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

• DTS firmware uploader dongle (code 03.LA.206)

ACCESSORIES FOR ELECTRIFIED RAIL MOUNTING

• Track adapter - black finishing (code 03.LA.235)
