Technische Fiche:

high efficiency white LED sorce

flicker free

adjustable zoom 20° - 36°

noiseless

manual or DMX control

easy maintanance

long life LED (50,000 hours)

Technical data

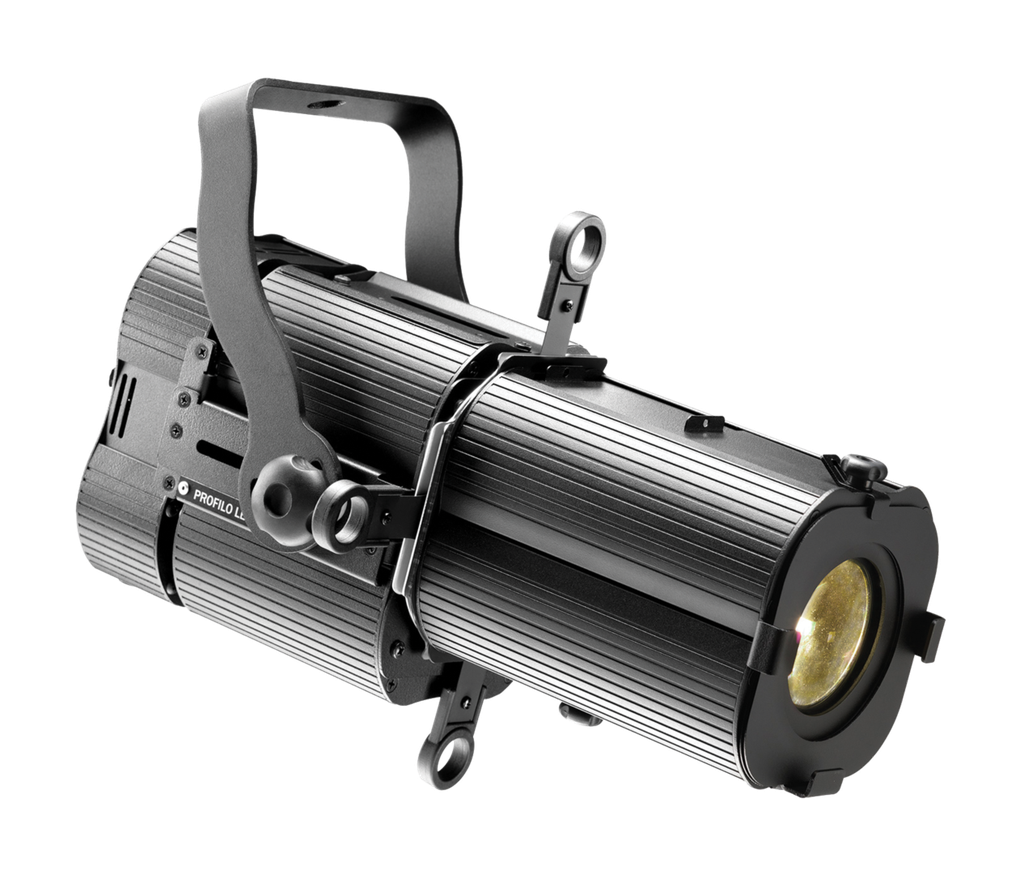

PROFILO LED 80 is a LED-based profile spot contained in a strong and lightweight housing. The unit features an internal four-shutter shaping system, and a 20° to 36° linear zoom. The unit is equipped with a high efficiency 80 W white LED source available with 3000 K, 4000 K or 5000 K color temperature. The unit is suitable for small to medium TV studios, theatres or museums and it is a valid alternative to conventional lights. Thanks to a dedicated kit is possible to instal the fixture on electrified rails.

Output

• Single high-power White 3000 K LED

• CRI > 90

• Also available with 4000 K and 5000 K LED

• LED lifespan: 50,000 hours (70% lumen output)

Optical group

• 20° - 36° linear zoom

• High definition zoom lens with double optical condenser lens

Gobos

• Gobo type M
• Ø external: 66 mm
• Ø of image: 48 mm
• Thickness: from 0,2 to 3 mm

Control

• DMX 512 / RDM or Manual control

• Multi-function 4-digit 7-segment LED display + 4 soft keys

• Firmware updatable via DTS firmware uploader dongle

DMX

• 2 DMX channels (default)

• 3 DMX channels

• 1 DMX channel

Power supply

• Electronic Wide-range 100-240Vac 50-60 Hz;

• Power consumption: 100 W max

• Power Factor: PF >0.95

Connections

• Power supply: PowerCON In/Out panel connectors

• DMX: XLR 5-pole In/Out panel connectors


Circuits protections

• Overvoltage and overtemperature circuits protection

Operating temperature

OPERATING TEMPERATURE
-10° / 40° C

Physical

• IP20

• Internal system with four removable shutters

• Strong housing with folded edges

• Yoke featuring an exclusive round flange + clutch system

• Weight: 6.3 Kg (13.9 lbs)

• Finishing: Black

Accessories included

• 1 x PowerCON female cable connector (code 0520P014)

• 1 x XLR 5 pins male cable connector (code 0508B028)

• 1 x XLR 5 pins female cable connector (code 0508B027)

• 1 x Filterframe - Black finish - already mounted on the unit (code 02M00426.46)

• 4 x Shutter blades (single blade code 02SK0335)

Accessories on request

• Gobo holder (code 03.TA224)

• Iris/diaphram (code 03.TA223)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

• Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

• DTS firmware uploader dongle (code 03.LA.206)

ACCESSORIES FOR ELECTRIFIED RAIL MOUNTING

• Track adapter - black finishing (code 03.LA.235)
