Technische Fiche:

high-power white LED (3200 K)

CRI >95

internal 4-shutter shaping system

flicker free

adjustable zoom 15.5° - 38°

noiseless operation

manual or DMX control

easy maintenance

long life led (50,000 hours)

Technical data

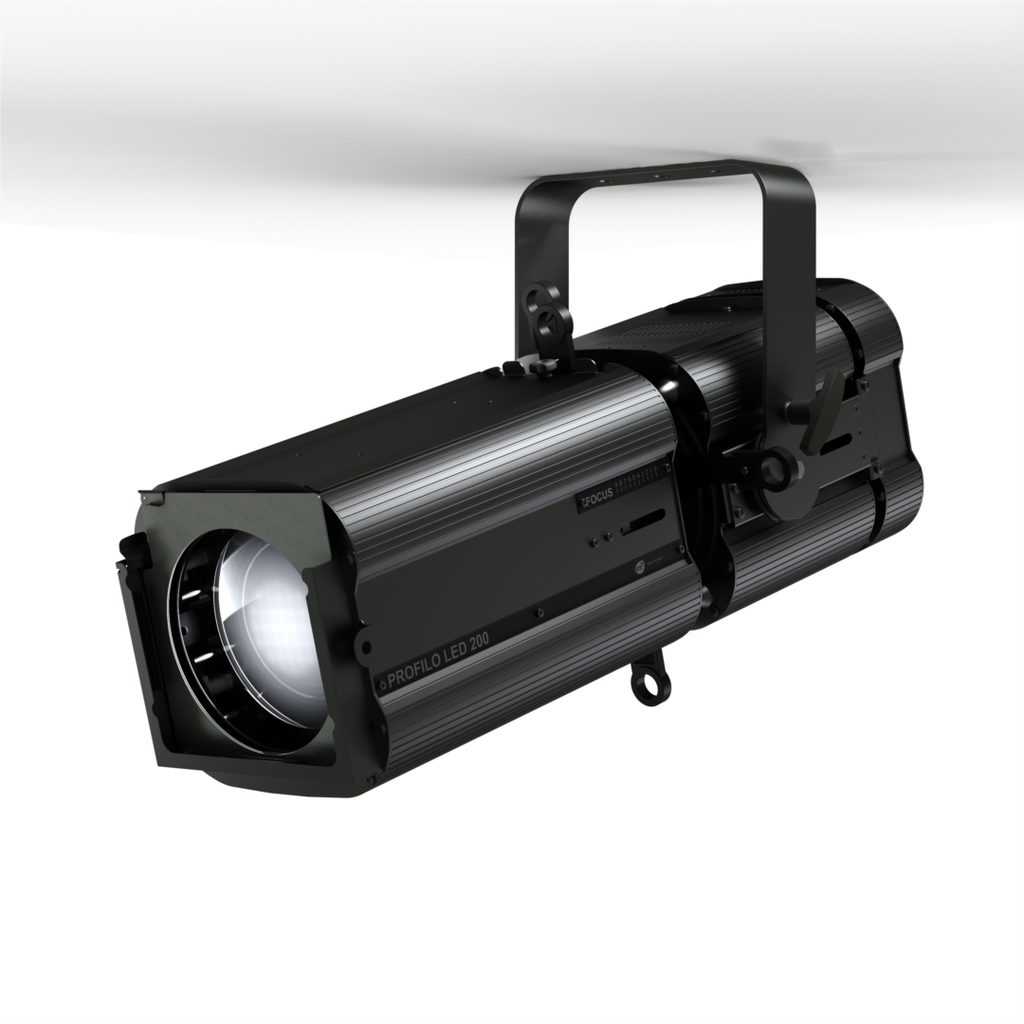

PROFILO LED 200 is a high-power LED-based profile spot contained in a strong and lightweight housing. The unit features an internal four-shutter removable shaping system, and a high-definition 15.5° to 38° linear zoom. The unit is equipped with a high efficiency 200 W White 3200 K LED source. PROFILO LED 200 is suitable for medium to large TV studios and theatres and it is a powerful and versatile alternative to conventional lights.

Output

• Single high-power 200 W white LED (3200 K)

• CRI >95

• Also available with 4000 K or 5600 K LED (CRI>90)

• LED lifespan: 50,000 hours (70% lumen output)

Optical group

• 15.5°- 38° linear zoom

• High definition zoom lens with double optical condenser lens

Framing system

• Framing system with 4 asymmetric blades

• Each blade can be inverted

• 70° full system rotation (+/- 35°)

• Blades operate on three discrete plans

• A 5th blade can be added

Gobos

Gobo type B metal or glass
• Ø external: 86 mm
• Ø of image: 60 mm
• Thickness: from 0,2 to 2 mm

Control

• DMX 512 / RDM or Manual control

• Multi-function 4-digit 7-segment LED display + 4 soft keys

• Firmware updatable via DTS firmware uploader dongle

DMX

• 4 DMX channels (default)
• 1 DMX channel
• “Fine” mode

Power supply

• Wide-range 100-240Vac 50-60 Hz

• Power consumption: 200 W max

• Power Factor: PF >0.94

Connections

• DMX: XLR 5-pole In/Out panel connectors

• Power supply: PowerCON TRUE1 In/Out panel connectors


Circuits protections

Overvoltage and overtemperature
circuits protection

Operating temperature

-10° / 40° C

Physical

• IP20

• Internal system with four removable shutters

• Yoke featuring an exclusive sliding system with clutch for a wider tilt

• Weight: 16.9 Kg (37.3 lbs)

• Finishing: Black

Accessories included

ON BOARD

• 1 x Soft edge filter assembly (code 02TP0047)

• 1 x Filterframe Black finishing (code 02M00420.49)

IN THE BOX

• 1 x PowerCON TRUE1 female cable connector (code 0520P066)

• 1 x XLR 5 pins female cable connector (code 0508B147)

• 1 x XLR 5 pins male cable connector (code 0508B148)

• 4 x Shutter blades assembly (single blade code 02SK0429)

Accessories on request

• 5th shutter blade (code 02SK0429)

• Iris/Diaphragm (code 03.TA225)

• Gobo holder (code 03.TA226)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

• Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

• DTS firmware uploader dongle (code 03.LA.206)
