HELIOS is our line of recessed projectors that, thanks the round flange perfectly integrated into the flooring, is particularly suitable for installations on traditional or industrial surfaces. Available in full-color or in a white LED version, with built-in or external control drivers, Helios is the ideal product to create the best outdoor atmosphere and to highlight architectural elements with wall washing lighting.

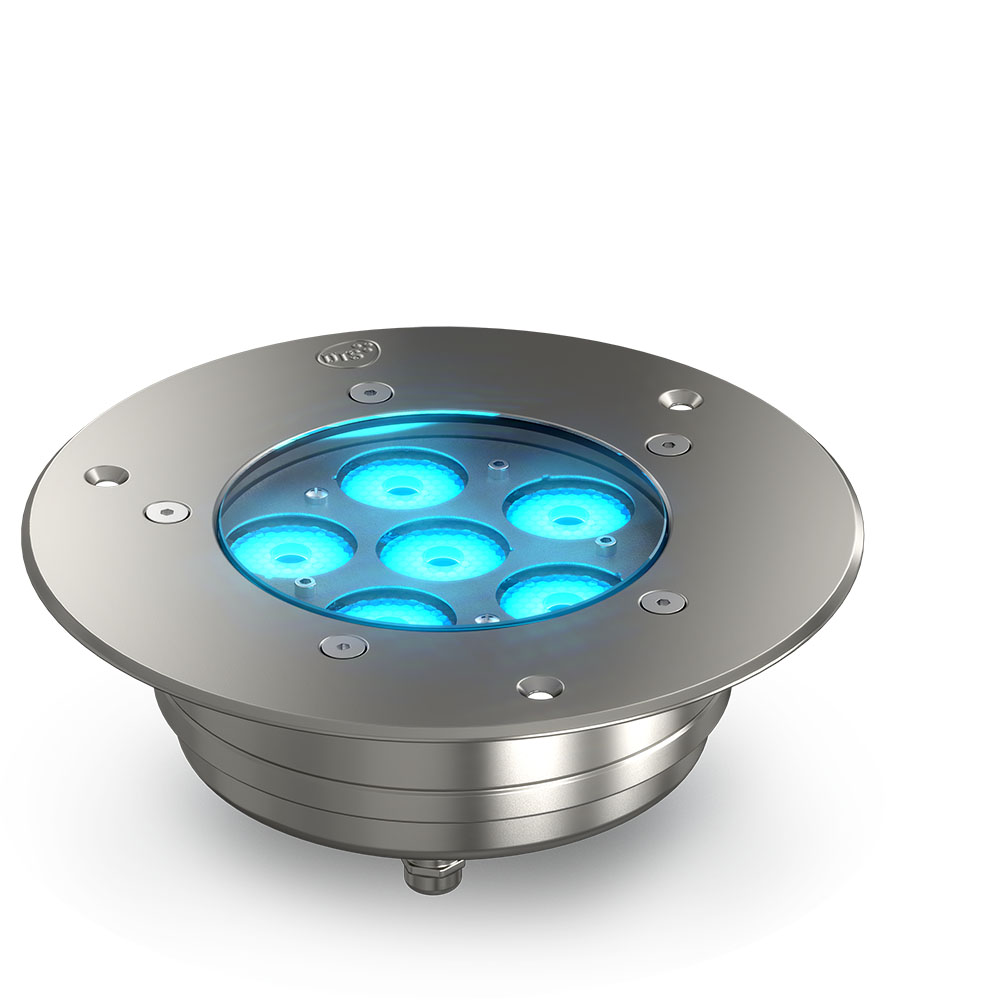

Helios.D 6 is a 4-color LED projector fitted with on-board LED driver that allow to control it via DMX 512 / RDM communication protocols. With a 60 W consumption this projector is designed to meet any requirements for architainment outdoor recessed installations. Helios.D 6 has a reinforced IP65-rated structure made in aluminum and steel for high resistance to atmospheric agents.

Output

• 6 x 4-colors LED

• Lumens output (RGBW): 2,660 @ 700mA

• LED lifespan: 50,000 hours (70% lumen output)

Optical group

• Medium flood 22°
• Wide flood 40°

Control

• DMX 512 / RDM protocols

• DMX address settings and functions can be also managed by the dedicated DLC 901 remote control

• Internal operating system updatable via DTS dongle firmware uploader

DMX

• 4 DMX channels (Default)
• 11 DMX channels

Power supply

• LED driver on board

• External constant voltage PSU Led driver 27 ÷ 48 VdC

• Consumption: 60 W max


Connections

• 90 cm end-stripped 4-pole cable for Power and DMX

Physical

• Housing: Body in aluminium and flange in Stainless Steel

• Weight: 2 Kg (4.41 lbs)

Accessories on request

• 0502T063 • Constant voltage PSU 48VdC 100W IP67 - Max 1 unit

• 0502T099 • Constant voltage PSU 48VdC 240W IP67 - Max 4 units parallel wired

• 0509C152 • 4-pole outdoor cable

• 03.LA.063.1 • Dongle DLC 901

• 03.LA.206 • DTS dongle firmware uploader

• 03.LA.190 • Outercase IP20 rated
