Interne referentie: DTS-03.MW012
Technische fiche:

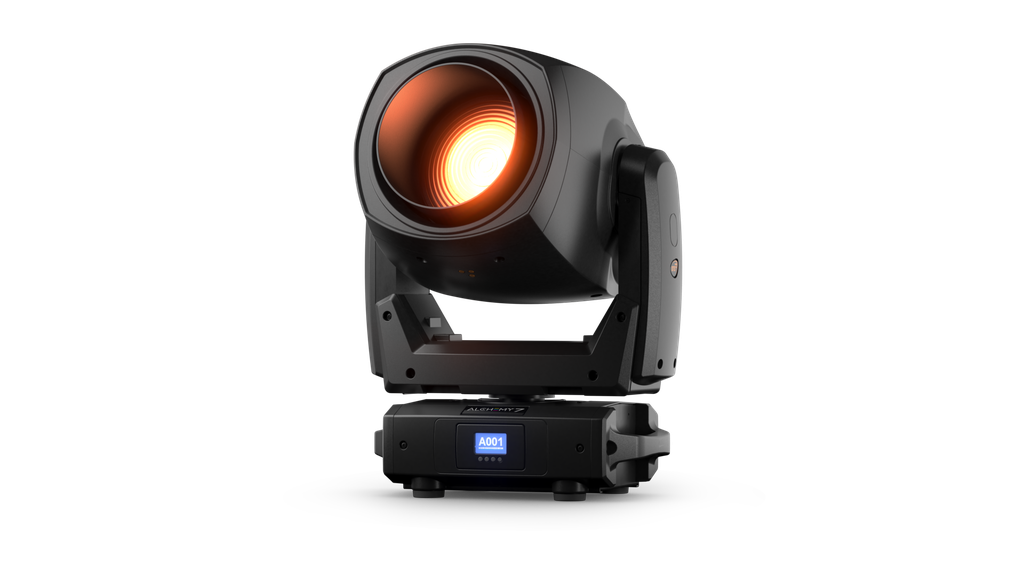

ALCHEMY 7

HQS wash-moving head that combines superior light quality
and a two-blade framing system

Highlights

6-color LED source with Ø 250 mm Fresnel lens

Linear zoom 15° - 50°

High luminosity with an evenly diffused and flat beam

Superior white light quality
and precise color rendering

Extensive colour palette, wide range of pastel colors

linear CCT

Silent mode for theatres and TV studios

 ‘Hi-Q Dimming’ Technology

"Tungsten emulation" function

Technical data

ALCHEMY 7 is a high performance LED wash moving head that guarantees high luminosity with a superior light quality, both in white lights in which an accurate color rendering is assured and in colors. Alchemy 7 is marked HQS (High Quality Spectrum-DTS trademark) with which we emphasize its ability to generate high quality whites and an extensive range of colors that provides beautiful pastel shades. Moreover, Alchemy 7's tungsten emulation function was developed to accurately recreate that of halogen lamps. This projector was designed to perform in theatres and television where quietness, versability and quality of  light are fundamental.

Output

• Multi-chip LED source

• LED source: 800 W

• Lumen output: 22,000 lm

• CRI: up to 98

• TLCI: up to 96

• LED lifespan: 20,000 hours (70% lumen output)

Optical group

• 15°- 50° linear zoom

• Ø 250 mm Fresnel lens

• Indexable beam shaper (2:1 ratio) with endless continuous rotation

• Heavy frost filter insertable via DMX

• Retractable ‘top hat’

White and color generation

• 6-color LED engine

• Linear CCT (1,800 K - 10,000 K)

• Green saturation: Linearly adjustable green/magenta point

• 100 gel filters emulation
- Linear crossfade from gel filters emulation to CCT whites
- Linear crossfade between emulated gel filters
- True color of gel filters emulation at any CCT value

• “Raw” RGBACL color-mixing in ‘Advanced’ mode

• Extra deep colors: Two DMX-selectable filters (‘deeper blue’ and ‘deep red’) allow to further extend the range of reproducible colors toward the two ends of the visible spectrum

• HQS (High Quality Spectrum) - DTS’ trademark certifies a product’s superior white light quality and its ability to generate an extended color palette offering a wider range of pastel shades with rich warm nuances.

Framing system

• 2-blade rotating framing system

• Real “curtain” effect for each blade

• 60° rotation for each blade (+/- 30°)

• 180° full system rotation (+/- 90°)

Dimmer

• ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in increasing and decreasing the level of brightness in multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between values

• Tungsten emulation - CCT variation perfectly emulates the behavior of Halo-lamps

Control

• LCD graphic display + 4 soft-keys ("auto-flip" and "key-Lock" functions available)

• Art-Net 4, sACN, RDM/DMX 512 protocols

• “Standard” and “Silent” operation modes
- Noise level at Silent mode: 38 dBA @ 1 m (normal operation, full power)

• Firmware updatable via DTS firmware uploader dongle

• “Li-Fe” backup battery allows the use of the unit’s on-board display when it is not powered, besides ensuring a safe return and blockage of the top hat during shut down

DMX

• 5 DMX functions:
- 1. CCT (default)
- 2. Advanced (raw)
- 3. Basic
- 4. Expo
- 5. CMY Emulation


Pan and Tilt

• Pan 540° : 3.8 s

• Tilt 220° : 2.1 s

• 16-bit resolution

• Pan / Tilt lock

Power supply

• Wide range 100-240Vac 50-60 Hz

• Power consumption: 800 W max

• Power Factor: PF >0.90

Connections

• Power supply: PowerCON TRUE1 In/Out panel connectors

• DMX: XLR 3-pole and 5-pole In/Out panel connectors

• Art-Net / sACN: etherCON RJ45 connector

Circuits protection

Overvoltage and overtemperature circuits protection

Operating temperature

-10 / 45 °C

Storage temperature

-20 / 60 °C

Physical

• IP20
• Weight: 34 Kg (75 lbs)
• Finishing: Black

Accessories

• 1 x PowerCON TRUE1 female connector (code 0520P066)

• 2 x Omega bracket with “Fast Lock” connection 1/4 turn (code 02K00549)

Optional accessories

•  Aliscaf clamp for tube diameter 48-51 mm - max. load. 200 Kg (code 0521A033)

• G-QUICK clamp Professional - max. load 100 Kg (code 0521A037)

• Safety cable 5 x 600 mm - max capacity load 60 Kg (code 0521A038)

•  DTS firmware uploader dongle (code 03.LA.206)
