ChamSys MagicQ MQ500M+ Stadium Console

https://audiovisuallighting.odoo.com/web/image/product.template/4419/image_1920?unique=6353a84

Voor prijzen en bestellingen: sales@chamsyslighting.be

Deze combinatie bestaat niet.

Neem contant met ons op

Prijzen exclusief btw
Algemene voorwaarden

Interne referentie: CS100607
Technische fiche:

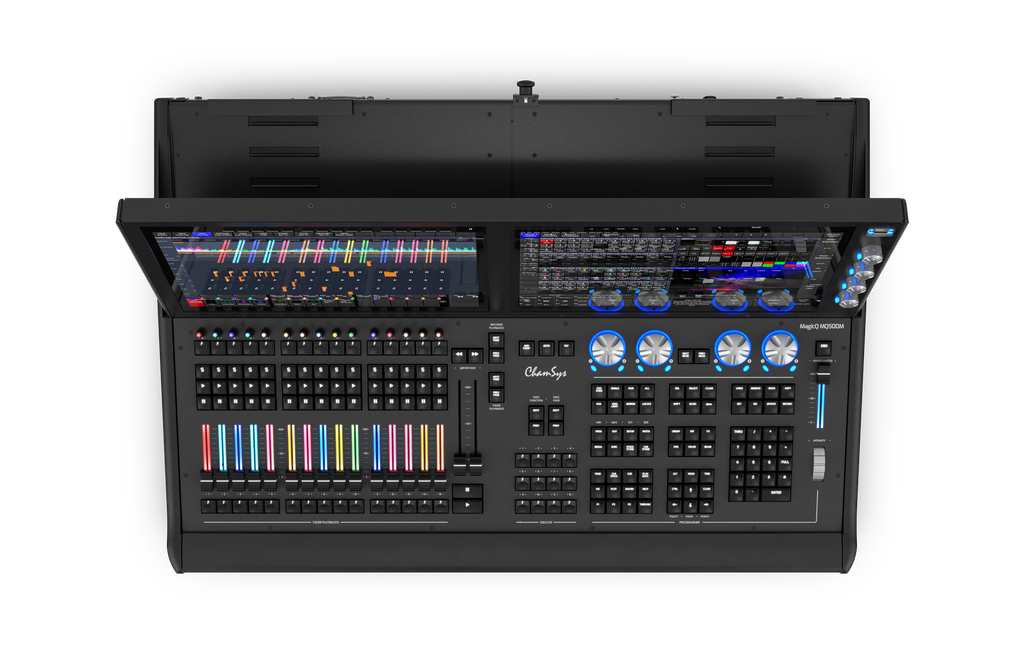

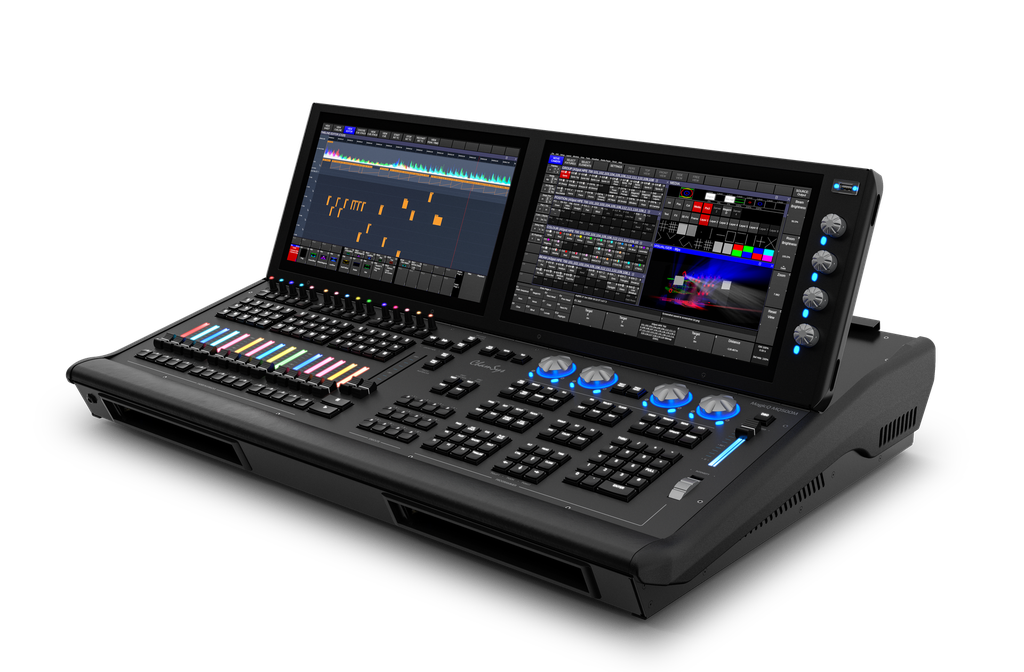

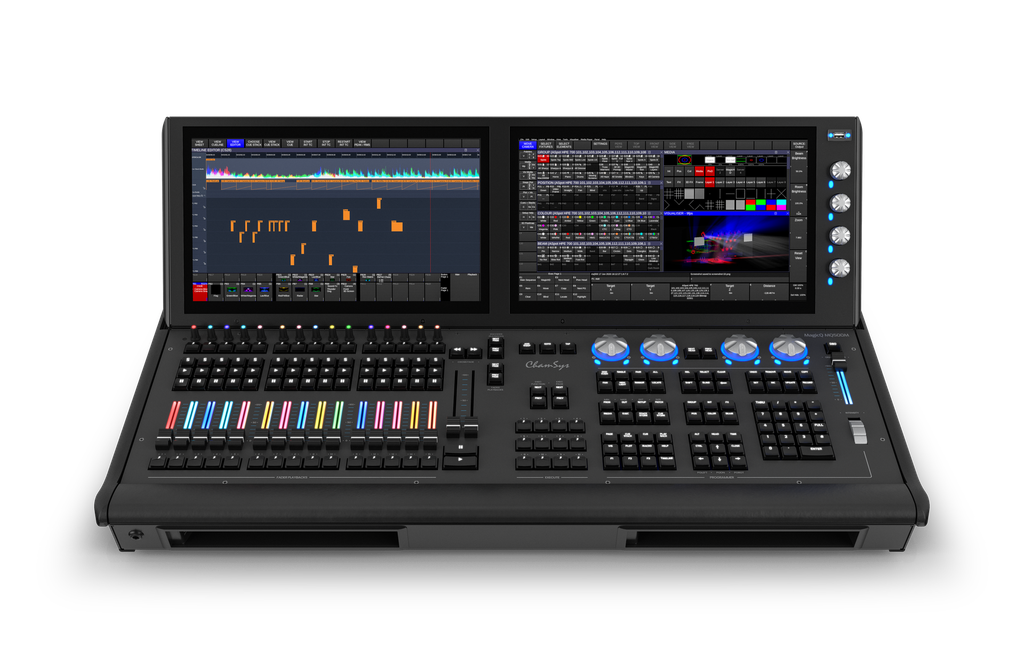

MagicQ MQ500M+ Stadium Console

At home on the largest of shows, MagicQ MQ500M+ Stadium supports 400 universes direct from the console without the need for external processing. MQ500M+ introduces the ability to expand screen real estate via its two Display Port++ External Monitor ports, and adds inbuilt Wi-Fi for connection of Remote Focus application and an inbuilt 4-port Gigabit Network Switch.

MQ500M+ features RGB-illuminated faders and encoder playbacks, with 15 fully-motorised fader playbacks, 15 encoder playbacks and 12 backlit multi-purpose Macro/Execute/Playbacks/Palette keys, giving the console a total of 42 playbacks and providing programmers with a powerful work station well-suited for Concert & Touring, TV & Broadcast, Live Events, House of Worship and Theatre applications.

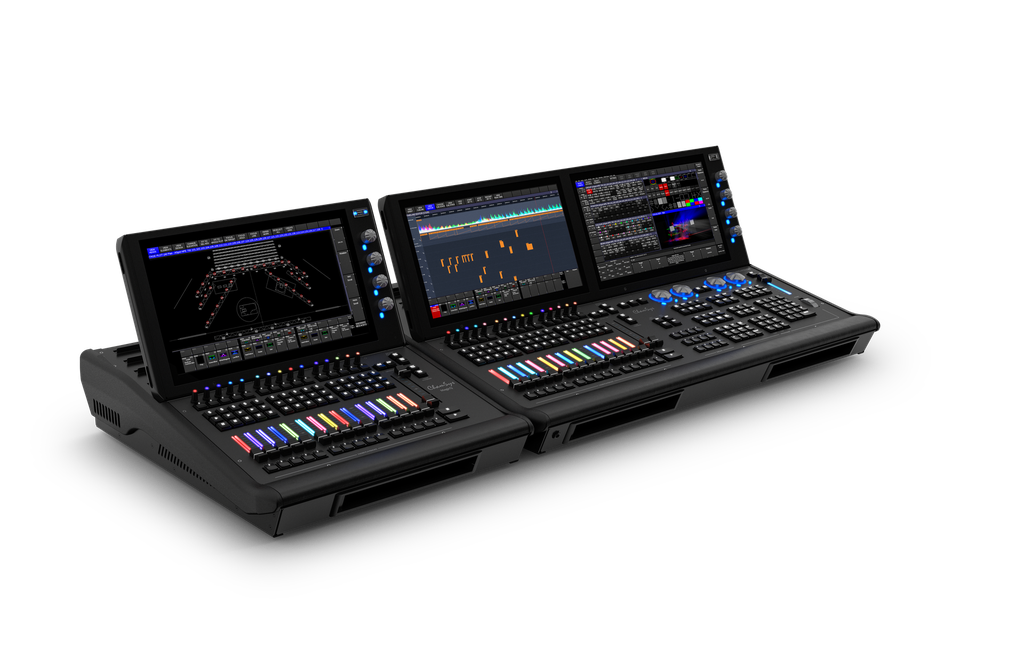

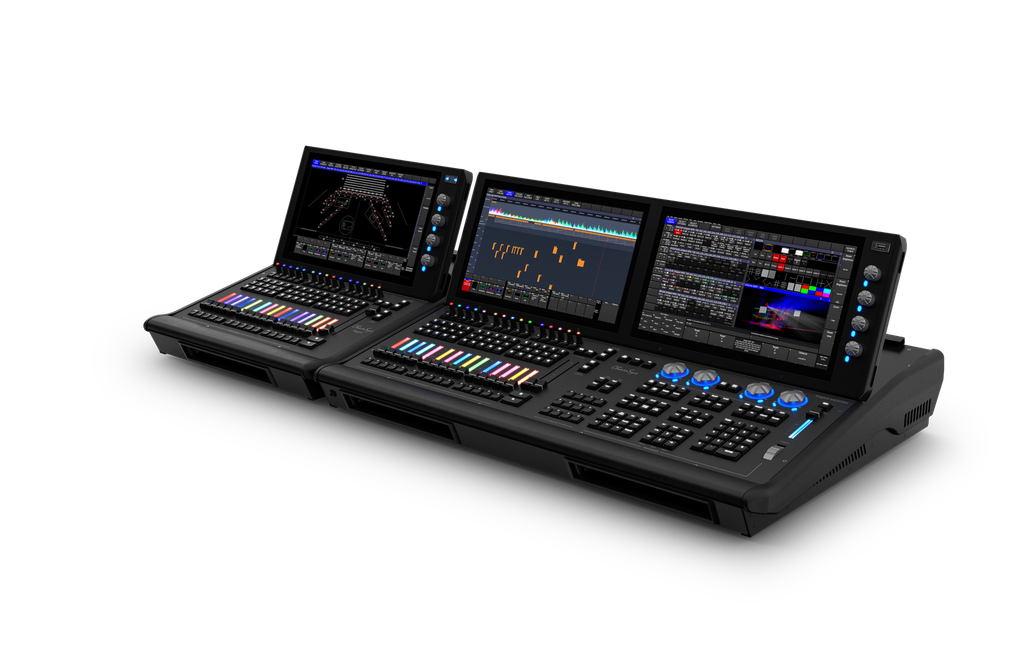

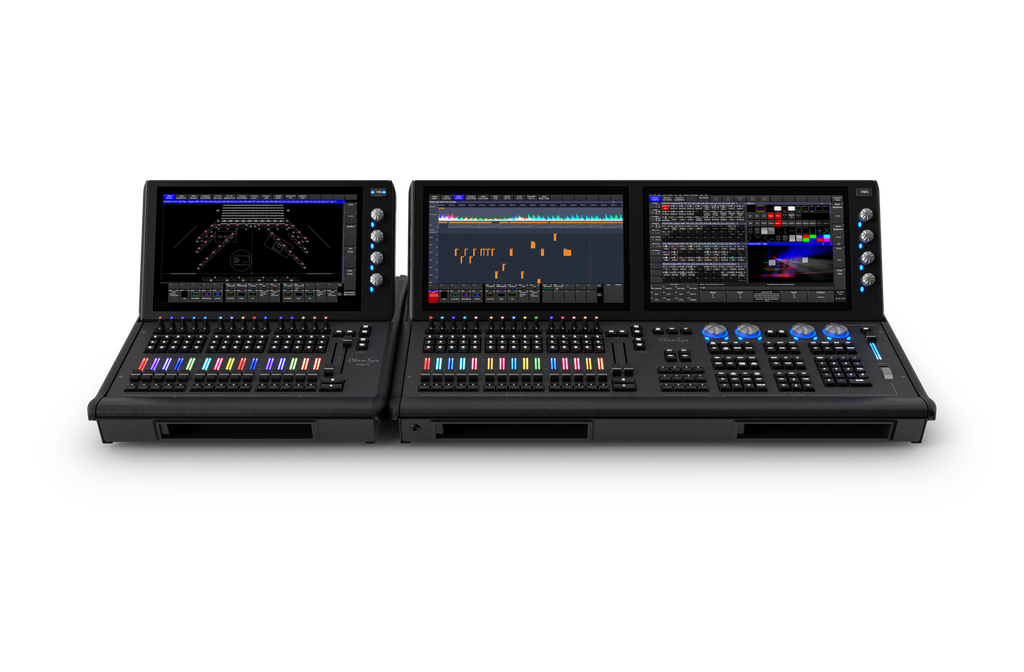

MQ500M+ also features dual HD resolution multi-touch 15” displays with adjustable viewing angles and multi-touch gesture support, for a more intuitive workflow. For additional control, connect a MagicQ MQ500M Stadium Wing and get even more playbacks and another touchscreen display as well.

MQ500M+ Stadium has inbuilt MagicVis 3D visualiser with high quality beam and gobo rendering, enabling you to pre-program shows offline and save time onsite. This versatile console comes with 4 DMX ports, an intensity wheel and 100-mm split crossfaders for theatre control.

Overview:

  • 400 universes direct from the console
  • 15 fully motorised fader playbacks
  • 15 encoder playback with RGB indicators
  • 12 multi-purpose Macro/Executes/Playbacks keys
  • RGB illumination of playbacks
  • Backlit buttons
  • Dual Inbuilt 15" Multi HD touch displays
  • Two Display Port++ External Monitor Support
  • Inbuilt Wi-Fi for connection of Remote Focus application
  • Inbuilt 4-port Gigabit Network Switch
  • 4 DMX ports

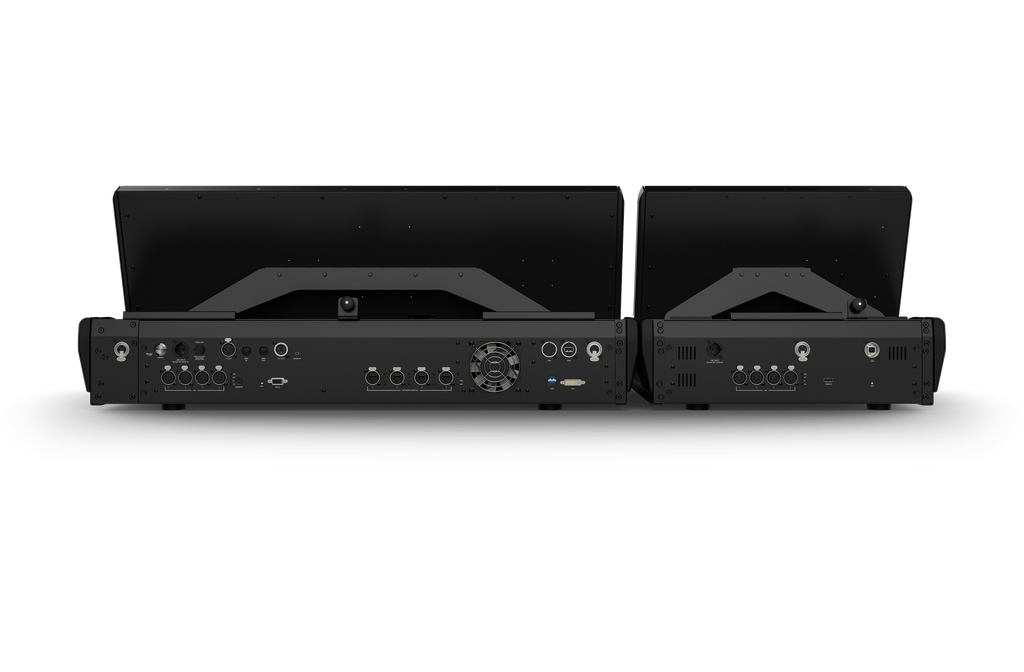

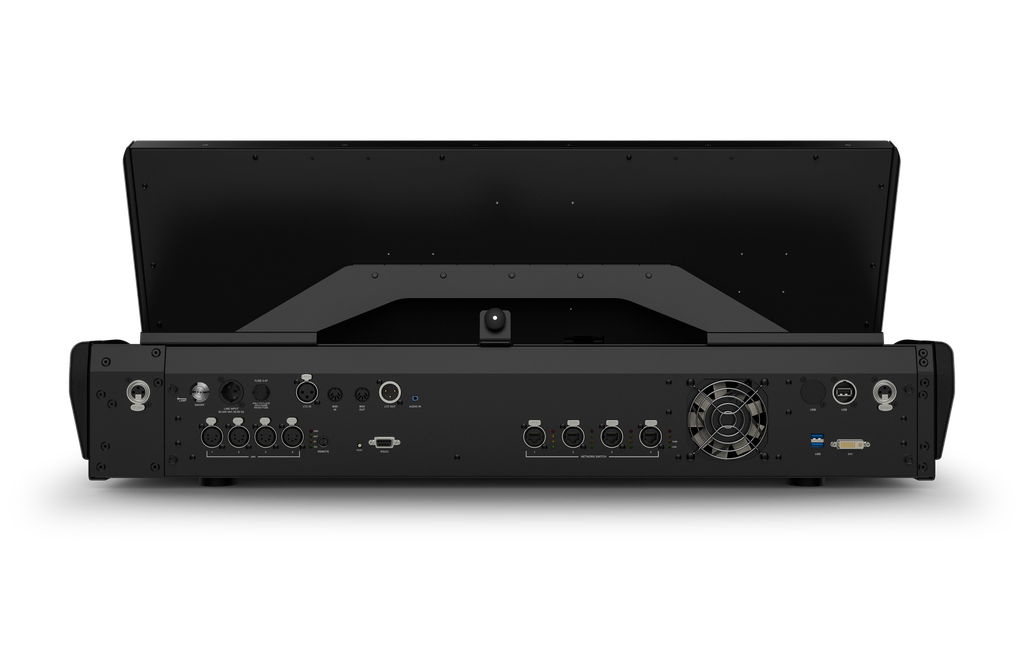

  • Audio In/Out on the Rear Panel
  • Power Out for MQ500M Stadium Wing
  • Up to 8 touch displays support (4 via remote network)
  • Dual motorised 100mm crossfaders ideal for Theatre
  • Inbuilt MagicVis Visualiser with full rendering of beams and gobos



Hardware Specifications:

  • Universes direct from the console (via Artnet/sACN/Pathport): 400
  • Direct DMX Outputs: 4
  • Motorised Playbacks: 15
  • Encoder Playbacks: 15
  • Macro/Execute/Playback Section keys: 12
  • Total no of Playbacks: 42 (15+15+12)
  • Dual Motorised Cross Faders: Yes
  • Attribute Encoders: 8
  • Backlit Keys: Yes
  • Illuminated Playback/Encoders with RGB control: Yes
  • Intensity Wheel: 1
  • Network Ports: 4 (Gigabit)
  • In-built Wi-Fi: Yes
  • Inbuilt 15" HD Multi-Touch Displays: 2
  • External Monitors DP++ Port: 2
  • USB Ports, including 2 High Power USBs: 6
  • Audio Input (1 channel, 7 band): Yes
  • Audio Input: Yes
  • Audio Output: Yes
  • MIDI Ports 1 in and out: Yes
  • LTC Timecode Ports in and out: Yes
  • Remote Input: Yes
  • Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
  • Front Storage Pockets: 2
  • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
  • Power Output, Neutrik powerCON TRUE1

Boxed Weights and Dimensions:

  • Width: 960mm (37.8 inches)
  • Depth: 690mm (27.2 inches)
  • Height: 330mm (13 inches)
  • Weight: 40kg (88 lb)

Console Weights and Dimensions:

  • Width: 860mm (33.8 inches)
  • Depth: 585mm (23 inches)
  • Height: 90mm high at front (3.5 inches), 175mm high at rear (screens stored) (6.9 inches)
  • Weight: 32kg (70.5 lb)


The MQ500M uses a 12v Sealed Lead Acid Battery. Manufacturer battery Safety sheet can be found here

Software Specifications:

  • Max Number of DMX Channels: 204,800
  • Max Number of Fixtures Supported: 204,800
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (each different content)
  • Numbers of Shows: Virtually unlimited (500GB SSD)

Included Accessories:

  • Dual Colour Desk lights: 2
  • Dust cover: 1
  • Neutrik powerCON TRUE1 Power Cable: 1
  • Monitor arm with VESA mount: 1
  • USB Keyboard: 1
  • USB Mouse: 1

Flight Cased Weights and Dimensions:

  • Width: 940mm (37 inches)
  • Depth: 670mm (26.4 inches)
  • Height: 290mm (11.4 inches)
  • Weight (console in flightcase): 55kg (121 lb)
