    Interne referentie: CHR-163-027100-02
    Technische Fiche:

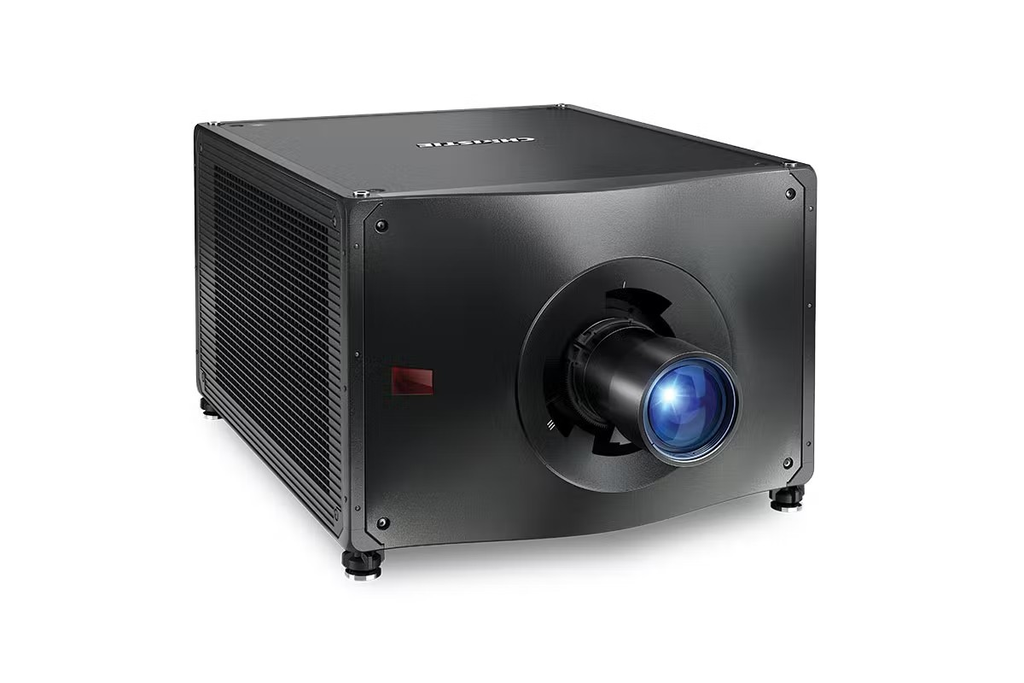

    Take large-s​​cale projection to new heights with the Christie® D4K40-RGB. This all-in-one, 45,000 lumen RGB pure laser projector raises the bar for design, image quality, built-in processing, and connectivity.

    All-in-one design

    What sets the Christie D4K40-RGB apart from the competition?

    Thanks to our engineering expertise, we are able to produce the smallest and lightest, high-brightness, all-in-one RGB laser projector on the market. There are no heavy external chillers, remote laser racks, or special pedestals – everything is completely integrated into a single chassis.

    Spectacular visuals

    The D4K40-RGB provides an exceptionally wide color gamut and when combined with TruLife™ electronics and 4K resolution, allows the D4K40-RGB to produce an astounding depth of detail. Add high frame rates​ (HFR) up to 120fps, 5000:1 On/Off contrast ratio, omnidirectional capabilities and the D4K40-RGB sets the new standard for large-scale pure laser projection.

    Designed for the professional

    Like all Christie projectors, the Christie D4K40-RGB is designed with the AV professional in mind. Featuring 12G-SDI, DisplayPort, Christie Terra SDVoE input card, Christie Link and more, connecting a variety of sources is easy. The D4K40-RGB is also compatible with most Christie 4K lenses for added convenience and cost savings. Power runs are also less costly thanks to single-phase, 220V operation.

    Key features

    • All-in-one, compact design – No external chillers, laser racks or parts and a manageable weight of 285lbs makes it the smallest and lightest high-brightness laser projector available
    • Omnidirectional – Operates in any orientation for increased installation flexibility
    • Long-lasting, reliable light source – Illumination p​erformance of 20,000 hours
    • High-contrast – Achieves 5,000:1 On/Off contrast for amazing depth of detail
    • Expanded color gamut – Produces >95% of the Rec. 2020 color space for rich, vibrant and true-to-life visuals
    • Energy efficient – Consume​s less power than any other 40,000 lumen RGB laser projector with 220V single phase operation
    • Christie TruLife electronics – Powerful processing that delivers ultra-high resolution, high frame rate video up to 120fps and unprecedented image fidelity at 4K resolution and 240Hz at 2K resolution
    • Christie Terra input card – Seamlessly integrates into SDVoE networks
    • 4K lens compatibility – Compatible with most Christie 4K lenses
    • Christie Twist – Built-in warping and blending
    • Compatible with Christie Mystique automated camera-based alignment software solution
    • Supports Christie Guardian – Invisible, real-time automatic blended-image correction even when content is playing

    ISO lumens

    45,000


    Center lumens

    41,000


    ANSI lumens

    40,000


    Contrast ratio

    5000:1 On/Off (w/ high contrast lens)

    Display type

    3DLP® 1.38" sealed to the prism

    Orientation

    Omnidirectional

    Image processing

    Christie TruLife electronics, 1.2Gpx/s

    Supported frame rates

    Standard: 24-60Hz | Optional: 96-120Hz 4K, 240-480Hz 2K scaled

    Standard inputs

    • Choose one signal input card for slot 0 (specified at time of order): HBMIC (2 x 12G-SDI, HDMI 2.0, DisplayPort 1.2, 1x QSFP+ module for fiber use with Christie Link Transmitter) OR QDPIC (Quad DisplayPort 1.2 input card) OR TSIC (Terra SDVoE input card)
    • - HDBaseT
    • - Audio

    Optional inputs - Slots 1 to 4

    • Dual 3G SD/HD-SDI input card
    • Dual Link DVI input card
    • Quad DisplayPort 1.1 input card
    • Twin HDMI 1.4a input card

    Warping & Blending

    • Standard:
    • - Christie Twist
    • Optional:
    • - Christie Twist Premium and Twist Pro
    • - Christie Mystique
    • - Christie Guardian

    Lenses

    • 0.72:1
    • 0.9:1
    • 1.13-1.31:1
    • 1.31-1.63:1
    • 1.63-2.17:1
    • 1.99-2.71:1
    • 2.71-3.89:1
    • 3.89-5.43:1 (not available in the USA)

    Input line voltage

    • Single phase 220VAC, 19A, 4000W, 13,650 BTU/h
    • Connector: 30A IEC309

    Cooling

    • Liquid, self-contained

    Laser class

    • Class 1 - Risk Group 3

    Operating environment

    • 5-40°C (41-104°F)
    • Relative humidity:
    • 10-80% non-condensing

    Dimensions​

    • Size (not including lens): (LxWxH): 37 x 28 x 21.8" (947 x 711 x 553mm)

    Weight

    • 285lbs (130kg)

    Control and networking

    • Ethernet
    • GPIO
    • RS232
