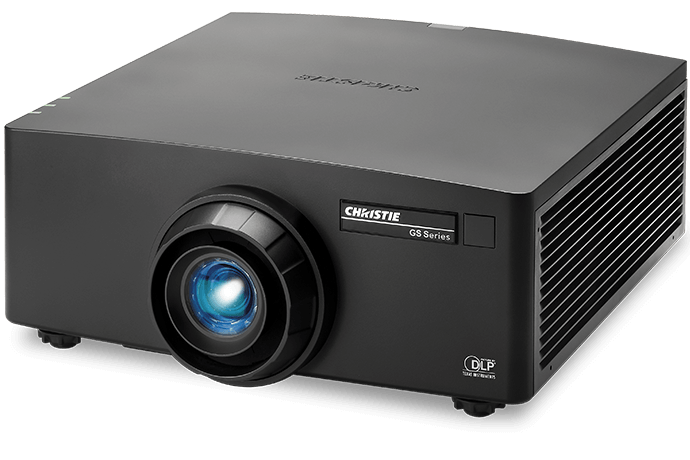

    Christie DWU630-GS

    6,750 lumen, WUXGA, 1DLP laser projector


    Bring bright, vibrant and high resolution visuals into your class or meeting room with the Christie® ​DWU630-GS. This affordable, low maintenance laser ​projector provides 20,000 hours of operation coupled with zero consumables for a budget-friendly cost of ownership.

    Benefit from the crisp, high-quality images, HD resolution and reliability of 1DLP® technology. Featuring Christie RealBlack™ technology and advancements in solid-state illumination, the DWU630-GS produces an incredible 4,000,000:1 full on/off contrast ratio making visuals pop off the screen. Built for reliable, 24/7 operation applications this projector is ideal for education spaces, places of worship and corporate environments.

    Key features

    • High brightness – Advanced, highly efficient laser diodes for 6,750 ISO lumens of light output.
    • Unbeatable contrast – Christie RealBlack technology produces an incredible 4,000,000:1 full on/off contrast ratio.
    • Range of lenses to choose from – Compatible with all GS Series lenses, including the new Ultra Short Throw (UST) lens.
    • Whisper quiet – A very quiet noise rating of 36dBA allows it to be placed anywhere in the room without being a distraction.
    • Compact and light – One of the smallest and lightest projectors in its brightness class.
    • 24/7 operation – 1DLP reliability ideal for high usage environments.
    • TAA compliant

    ISO lumens

    6,750


    ANSI lumens

    6,000


    Color wheel

    4 Segment (RGBY) - 2X or 3X speed


    Contrast ratio

    Full on/off (Christie RealBlack™ enabled): 300,000:1, Full on/off (Christie Real Black disabled): 1,200:1

    Dynamic contrast

    6,000:1

    Display type

    1 x 0.67" DMD

    Resolution

    WUXGA (1920 x 1200)

    Illumination type

    High efficiency blue laser phosphor

    Illumination performance (hrs)

    20,000 to 50% brightness

    Scan rates

    Horizontal: 15-91kHz, Vertical: 24- 120Hz

    Pixel clock rate

    162 MHz (1600 x 1200); 154 MHz (1920 x 1200)

    Signal input

    • Standard:
    • - HDMI x 2
    • - DVI-D x 1 (Digital only)
    • - HD15 x 1
    • - Remote in: 3.5mm stereo female (provides serial communications and power)
    • - HDBaseT (RJ45 x 1)
    • - RJ45 x 1 (Control over wired network connection)
    • 3D:
    • - HDMI 1.4, HDBaseT - Frame Packed, Top/Bottom, Side by side (Up to 1080p @ 144Hz)
    • - Up to 1080p @ 144Hz output
    • - Does not support frame sequential 3D
    • - 3D Sync Out (BNC) - for genlocking projectors or controlling emitters
    • Signals:
    • - HDTV formats VGA through to WUXGA (1920 x 1080)
    • - Horizontal and vertical scaling while maintaining aspect ratio, all inputs

    Signal output

    • HD15 x1

    Control & networking

    • - RS232 In
    • - Control via HDBaseT
    • - Ethernet (10/100) RJ45
    • - Built-in backlit keypad
    • - IR remote
    • - Wired remote control (3.5mm stereo)

    Lens mount

    • - Boresight adjustable
    • - Motorized horizontal and vertical lens offset
    • - Motorized zoom and focus adjustment

    Lens options

    • - Lens 0.75-0.95 Zoom G/GS
    • - Lens 0.95-1.22 Zoom G/GS
    • - Lens Zoom HP G/GS 1.22-1.52
    • - Lens 1.52-2.89 Zoom G/GS
    • - Lens 2.9-5.50:1 Zoom G/GS
    • - Lens UST 0.36 (140-133108-XX)

    Power requirements

    • Operating voltage:
    • - Normal: 100-240 VAC @ 50/60 Hz (w/ 15A fuse)
    • Power consumption:
    • - Normal mode: 650W
    • Operating current:
    • - Normal mode: 9.5A (100V-240V)
    • Dissipation:
    • 97.5W

    Dissipation

    • Normal Mode: 2218 BTU/hr
    • ECO1 Mode 1672 BTU/hr
    • ECO2 Mode: 1068 BTU/h

    Audible noise (typical 2x wheel speed)

    • 36dB(A) standard mode
    • - 34dB(A) eco mode

    Dimensions (L x W x H)

    • - 19.90 x 17.95 x 7.60" without feet or lens
    • - 505 x 456 x 190mm without feet or lens

    Weight

    • 39.94lbs (15.85kg) without lens

    Shipping dimensions (L x W x H)

    • - 24.65 x 23.43 x 13.74"
    • - 626 x 596 x 349mm

    Shipping weight

    • 47.06lb (21.35kg)

    Operating environment

    • - 0 to 40° C (32 to 1- 04° F), 0-2500 ft altitude
    • - 0 to 30° C (32 to 86° F), 5,000-10,000 ft altitude
    • - Humidity: 0 - 85% non-condensing


    Regulatory

    • - Contact Christie for timing of certifications: UL/CSA/IEC 60950-1
    • - FCC Class A, CE, FDA, CCC, KC, PSE, EAC, BIS, VCCI, RCM, TER
    • - This product conforms to all relevant European directives, standards, safety, health and environmental concerns
    • - RoHS, REACH, WEEE

    Limited warranty

    • - 3 years parts and labor on the projector
    • - 3 years or 20,000 hours parts and labor on the illumination system*
    • - Contact an authorized Christie representative for full details of our limited warranty
    • - *Please reference the Christie Standard Limited Warranty document for details.

    Accessories (standard)

    • - IR Remote w/ wired remote jack (wire not included)
    • - AC Line cords for projector
    • - User Manual
