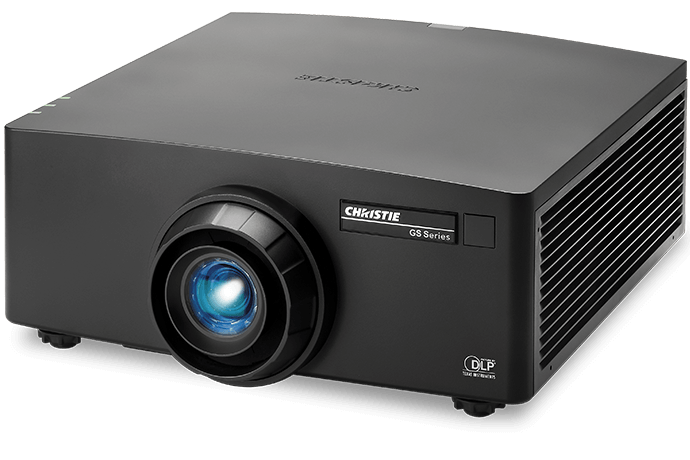

Christie DWU630-GS

6,750 lumen, WUXGA, 1DLP laser projector


Bring bright, vibrant and high resolution visuals into your class or meeting room with the Christie® ​DWU630-GS. This affordable, low maintenance laser ​projector provides 20,000 hours of operation coupled with zero consumables for a budget-friendly cost of ownership.

Benefit from the crisp, high-quality images, HD resolution and reliability of 1DLP® technology. Featuring Christie RealBlack™ technology and advancements in solid-state illumination, the DWU630-GS produces an incredible 4,000,000:1 full on/off contrast ratio making visuals pop off the screen. Built for reliable, 24/7 operation applications this projector is ideal for education spaces, places of worship and corporate environments.

Key features

  • High brightness – Advanced, highly efficient laser diodes for 6,750 ISO lumens of light output.
  • Unbeatable contrast – Christie RealBlack technology produces an incredible 4,000,000:1 full on/off contrast ratio.
  • Range of lenses to choose from – Compatible with all GS Series lenses, including the new Ultra Short Throw (UST) lens.
  • Whisper quiet – A very quiet noise rating of 36dBA allows it to be placed anywhere in the room without being a distraction.
  • Compact and light – One of the smallest and lightest projectors in its brightness class.
  • 24/7 operation – 1DLP reliability ideal for high usage environments.
  • TAA compliant

ISO lumens

6,750


ANSI lumens

6,000


Color wheel

4 Segment (RGBY) - 2X or 3X speed


Contrast ratio

Full on/off (Christie RealBlack™ enabled): 300,000:1, Full on/off (Christie Real Black disabled): 1,200:1

Dynamic contrast

6,000:1

Display type

1 x 0.67" DMD

Resolution

WUXGA (1920 x 1200)

Illumination type

High efficiency blue laser phosphor

Illumination performance (hrs)

20,000 to 50% brightness

Scan rates

Horizontal: 15-91kHz, Vertical: 24- 120Hz

Pixel clock rate

162 MHz (1600 x 1200); 154 MHz (1920 x 1200)

Signal input

  • Standard:
  • - HDMI x 2
  • - DVI-D x 1 (Digital only)
  • - HD15 x 1
  • - Remote in: 3.5mm stereo female (provides serial communications and power)
  • - HDBaseT (RJ45 x 1)
  • - RJ45 x 1 (Control over wired network connection)
  • 3D:
  • - HDMI 1.4, HDBaseT - Frame Packed, Top/Bottom, Side by side (Up to 1080p @ 144Hz)
  • - Up to 1080p @ 144Hz output
  • - Does not support frame sequential 3D
  • - 3D Sync Out (BNC) - for genlocking projectors or controlling emitters
  • Signals:
  • - HDTV formats VGA through to WUXGA (1920 x 1080)
  • - Horizontal and vertical scaling while maintaining aspect ratio, all inputs

Signal output

  • HD15 x1

Control & networking

  • - RS232 In
  • - Control via HDBaseT
  • - Ethernet (10/100) RJ45
  • - Built-in backlit keypad
  • - IR remote
  • - Wired remote control (3.5mm stereo)

Lens mount

  • - Boresight adjustable
  • - Motorized horizontal and vertical lens offset
  • - Motorized zoom and focus adjustment

Lens options

  • - Lens 0.75-0.95 Zoom G/GS
  • - Lens 0.95-1.22 Zoom G/GS
  • - Lens Zoom HP G/GS 1.22-1.52
  • - Lens 1.52-2.89 Zoom G/GS
  • - Lens 2.9-5.50:1 Zoom G/GS
  • - Lens UST 0.36 (140-133108-XX)

Power requirements

  • Operating voltage:
  • - Normal: 100-240 VAC @ 50/60 Hz (w/ 15A fuse)
  • Power consumption:
  • - Normal mode: 650W
  • Operating current:
  • - Normal mode: 9.5A (100V-240V)
  • Dissipation:
  • 97.5W

Dissipation

  • Normal Mode: 2218 BTU/hr
  • ECO1 Mode 1672 BTU/hr
  • ECO2 Mode: 1068 BTU/h

Audible noise (typical 2x wheel speed)

  • 36dB(A) standard mode
  • - 34dB(A) eco mode

Dimensions (L x W x H)

  • - 19.90 x 17.95 x 7.60" without feet or lens
  • - 505 x 456 x 190mm without feet or lens

Weight

  • 39.94lbs (15.85kg) without lens

Shipping dimensions (L x W x H)

  • - 24.65 x 23.43 x 13.74"
  • - 626 x 596 x 349mm

Shipping weight

  • 47.06lb (21.35kg)

Operating environment

  • - 0 to 40° C (32 to 1- 04° F), 0-2500 ft altitude
  • - 0 to 30° C (32 to 86° F), 5,000-10,000 ft altitude
  • - Humidity: 0 - 85% non-condensing


Regulatory

  • - Contact Christie for timing of certifications: UL/CSA/IEC 60950-1
  • - FCC Class A, CE, FDA, CCC, KC, PSE, EAC, BIS, VCCI, RCM, TER
  • - This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • - RoHS, REACH, WEEE

Limited warranty

  • - 3 years parts and labor on the projector
  • - 3 years or 20,000 hours parts and labor on the illumination system*
  • - Contact an authorized Christie representative for full details of our limited warranty
  • - *Please reference the Christie Standard Limited Warranty document for details.

Accessories (standard)

  • - IR Remote w/ wired remote jack (wire not included)
  • - AC Line cords for projector
  • - User Manual
