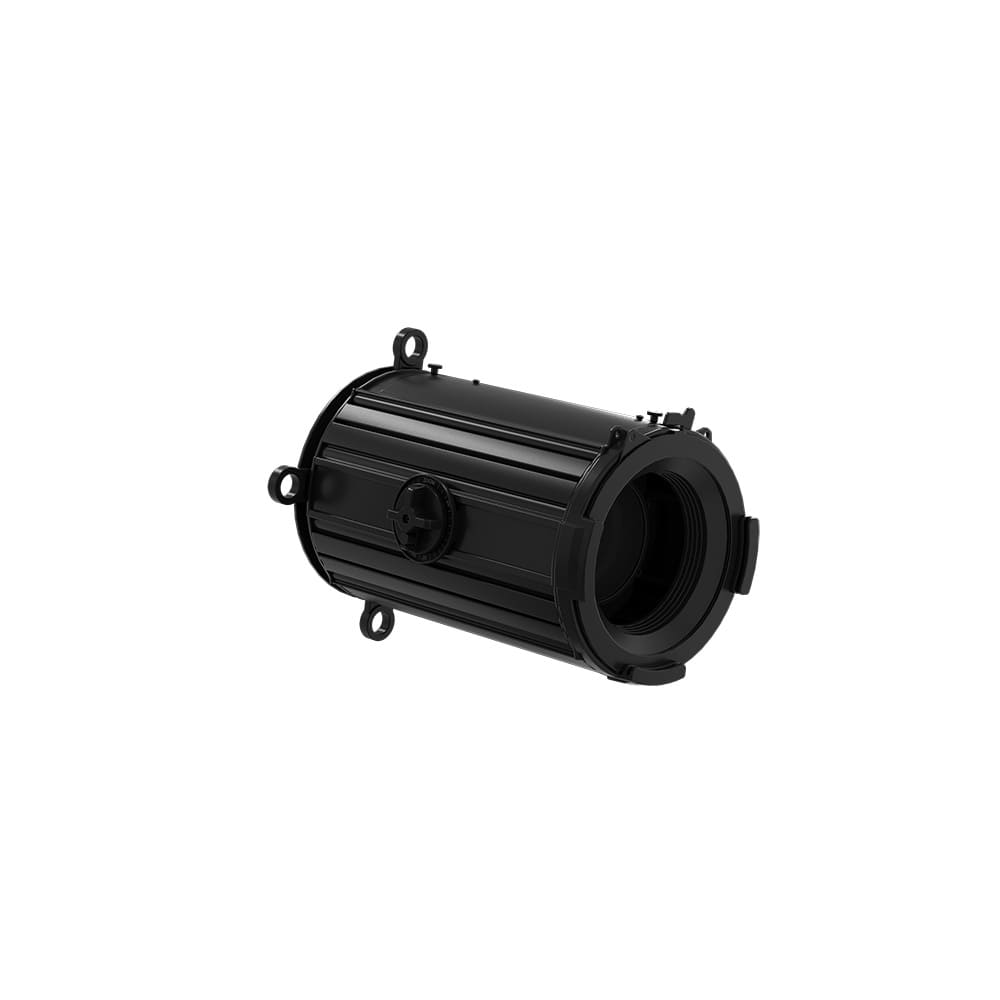

DTS - Soprano Optical group 25/50

https://www.avl.be/web/image/product.template/4342/image_1920?unique=608ae82

Optical Group 25-50 - 21°-46° linear zoom

    Deze combinatie bestaat niet.

    Aanmelden

    Prijzen exclusief btw
    Algemene voorwaarden


    Interne referentie: 03.TSP901.49

    high-power White LED source

    flicker free projection

    high-efficiency 6.5° - 70° linear zoom

    CRI > 95

    noiseless operation

    DMX / RDM control

    low power consumption

    fresnel or antihalo lens


    Technical data

    SCENA LED 200 is a high-power, compact, lightweight LED projector suitable for TV studios, theatres, museums, exhibitions, events. SCENA LED 200 is the most up-to-date alternative to conventional lights, offering technical features that dramatically improve light quality and flexibility of use: CRI > 95, flicker-free projection, DMX-RDM remote control, noiseless operation, virtually zero maintenance costs, lower power consumption. SCENA LED 200 is contained in a strong housing with folded edges, designed to withstand a continuous use.

    Output

    • Single high-power White 3200 K LED

    • CRI > 95

    • Also available with 4000K and 5600K LEDs

    • LED lifespan: 50,000 hours (70% lumen output)

    Optical group

    • Ø 150 mm Fresnel lens

    • Linear zoom
    - 6.5° - 70° with Frensel lens

    Control

    • DMX 512 / RDM or Manual control

    • Multi-function 4-digit 7-segment LED display + 4 soft keys

    • Firmware updatable via DTS firmware uploader dongle

    DMX

    • 4 DMX channels (default)

    • 1 DMX channel

    • “Fine” mode

    Power supply

    • Electronic Wide-range 100-240Vac 50-60 Hz

    • Power consumption: 200 W max

    • Power Factor: PF >0.94

    Connections

    • Power supply: PowerCON TRUE1 In&Out panel connectors

    • DMX: XLR 5-pole In&Out panel connectors


    Circuits protections

    Overvoltage and overtemperature circuits protection

    Operating temperature

    -10° / 40° C

    Physical

    • IP20

    • Weight:
    - FR - 8.5 Kg (18.5 lbs)
    - PC - 9.5 Kg (21 lbs)

    • Finishing: Black

    Accessories included

    • 1 x PowerCON TRUE1 female cable connector (code 0520P066)

    • 1 x XLR 5 pins female cable connector (code 0508B147)

    • 1 x XLR 5 pins male cable connector (code 0508B148)

    • 1 x Filterframe Black finishing - already installed on the projector (code 02M093278.49)

    Accessories on request

    • Barndoor Black finishing (code 03.TBD04)

    • Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

    • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

    • Flightcase for 6 units (code 0521C075)

    • Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

    • DTS firmware uploader dongle (code 03.LA.206)
