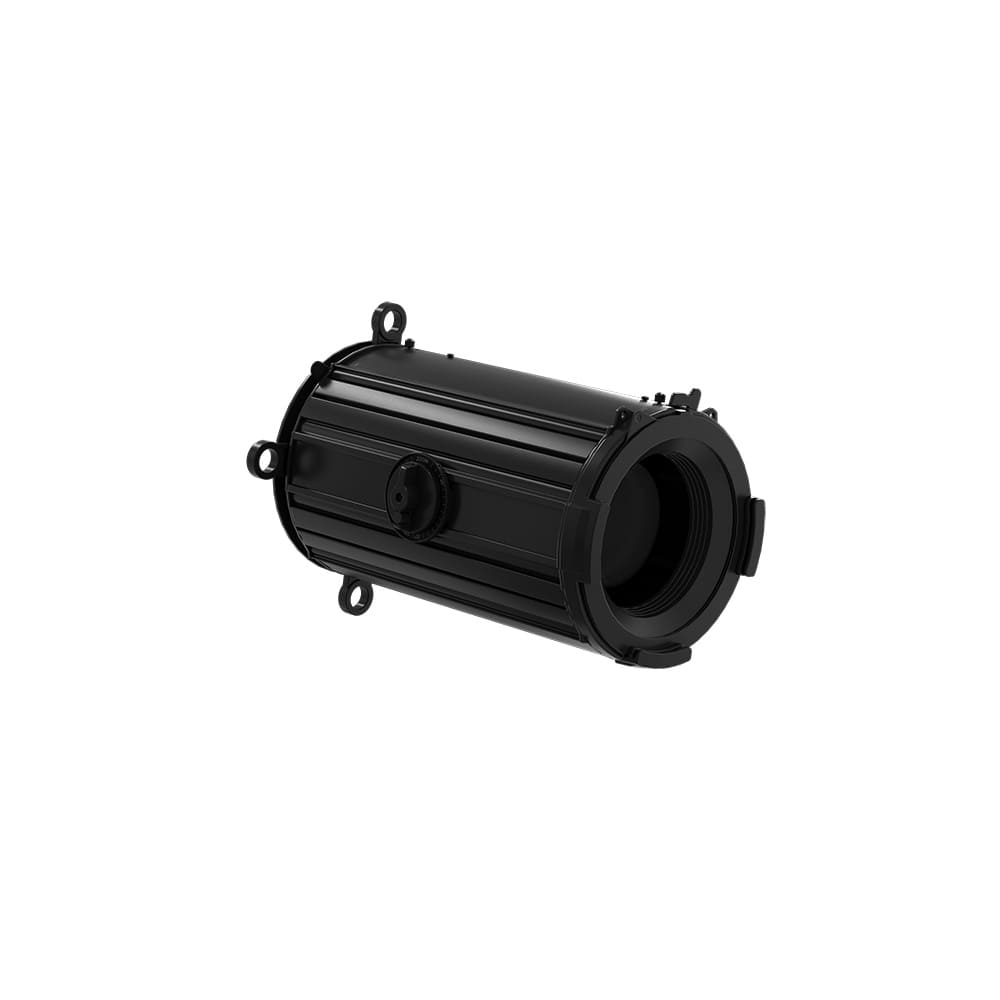

DTS - Soprano Optical group 15/30

https://audiovisuallighting.odoo.com/web/image/product.template/4341/image_1920?unique=4d50454

Optical Group 15-30 - 15°-30° linear zoom

Deze combinatie bestaat niet.

Prijzen exclusief btw
Algemene voorwaarden


Interne referentie: 03.TSP900.49

high-power White LED source

flicker free projection

high-efficiency 6.5° - 70° linear zoom

CRI > 95

noiseless operation

DMX / RDM control

low power consumption

fresnel or antihalo lens


Technical data

SCENA LED 200 is a high-power, compact, lightweight LED projector suitable for TV studios, theatres, museums, exhibitions, events. SCENA LED 200 is the most up-to-date alternative to conventional lights, offering technical features that dramatically improve light quality and flexibility of use: CRI > 95, flicker-free projection, DMX-RDM remote control, noiseless operation, virtually zero maintenance costs, lower power consumption. SCENA LED 200 is contained in a strong housing with folded edges, designed to withstand a continuous use.

Output

• Single high-power White 3200 K LED

• CRI > 95

• Also available with 4000K and 5600K LEDs

• LED lifespan: 50,000 hours (70% lumen output)

Optical group

• Ø 150 mm Fresnel lens

• Linear zoom
- 6.5° - 70° with Frensel lens

Control

• DMX 512 / RDM or Manual control

• Multi-function 4-digit 7-segment LED display + 4 soft keys

• Firmware updatable via DTS firmware uploader dongle

DMX

• 4 DMX channels (default)

• 1 DMX channel

• “Fine” mode

Power supply

• Electronic Wide-range 100-240Vac 50-60 Hz

• Power consumption: 200 W max

• Power Factor: PF >0.94

Connections

• Power supply: PowerCON TRUE1 In&Out panel connectors

• DMX: XLR 5-pole In&Out panel connectors


Circuits protections

Overvoltage and overtemperature circuits protection

Operating temperature

-10° / 40° C

Physical

• IP20

• Weight:
- FR - 8.5 Kg (18.5 lbs)
- PC - 9.5 Kg (21 lbs)

• Finishing: Black

Accessories included

• 1 x PowerCON TRUE1 female cable connector (code 0520P066)

• 1 x XLR 5 pins female cable connector (code 0508B147)

• 1 x XLR 5 pins male cable connector (code 0508B148)

• 1 x Filterframe Black finishing - already installed on the projector (code 02M093278.49)

Accessories on request

• Barndoor Black finishing (code 03.TBD04)

• Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Flightcase for 6 units (code 0521C075)

• Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

• DTS firmware uploader dongle (code 03.LA.206)
