Interne referentie: 03.TS051.46.A
Technische fiche:

linearly tunable white color temperature

flicker free projection

high-efficiency linear zoom

CRI > 90

noiseless operation

DMX / RDM and manual control

low power consumption

Antihalo lens (PC)


Technical data

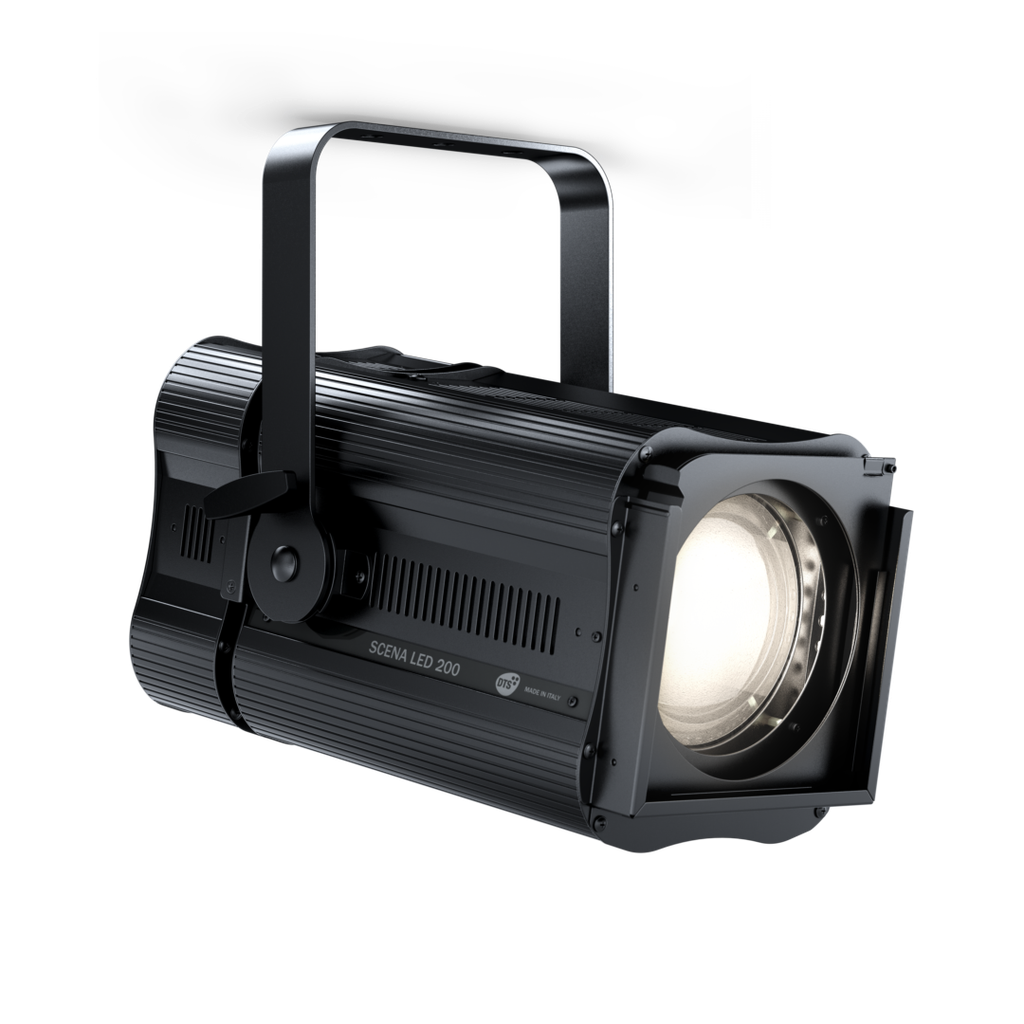

SCENA LED 200 CT is a high power, compact, lightweight LED projector suitable for TV studios, theatres, museums, exhibitions, events. The unit LED’s white color temperature is linearly tunable from 2700 K to 6500 K; a must in the most demanding applications, where a perfectly adjustable white color temperature is a key requirement. SCENA LED 200 CT offers technical features that dramatically improve light quality and flexibility of use: CRI > 90, flicker-free projection, DMX/RDM or manual control, noiseless operation, virtually zero maintenance costs, lower power consumption.

Output

• Single high-power White with linearly tunable color temperature (2700 K - 6500 K)

• CRI > 90

• LED lifespan: 50,000 hours (70% lumen outpu

Optical group

• Ø 150 mm Fresnel lens

• Linear zoom
- 6.4° - 64° with PC lens

Control

• DMX 512 / RDM or Manual control

• Multi-function 4-digit 7-segment LED display + 4 soft keys

• Firmware updatable via DTS firmware uploader dongle

DMX

• 7 DMX channels (default)

• 2 DMX channels

• “CTC” mode

Power supply

• Electronic Wide-range 100-240Vac 50-60 Hz;

• Power consumption: 200 W max

• Power Factor: PF >0.94

Connections

• Power supply: PowerCON TRUE1 In/Out panel connectors

• DMX: XLR 5-pole In/Out panel connectors


Circuits protections

Overvoltage and overtemperature circuits protection

Operating temperature

-10° / 40° C

Physical

• IP20

• Weight:
- FR - 8.6 Kg (19 lbs)
- PC - 9.5 Kg (21 lbs)

• Finishing: Black

Accessories included

• 1 x PowerCON TRUE1 female cable connector (code 0520P066)

• 1 x XLR 5 pins female cable connector (code 0508B147)

• 1 x XLR 5 pins male cable connector (code 0508B148)

• 1 x Filterframe Black finishing - already installed on the projector (code 02M093278.49)

Accessories on request

• Barndoor Black finishing (code 03.TBD04)

• Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Flightcase for 6 units (code 0521C075)

• Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

• DTS firmware uploader dongle (code 03.LA.206)
