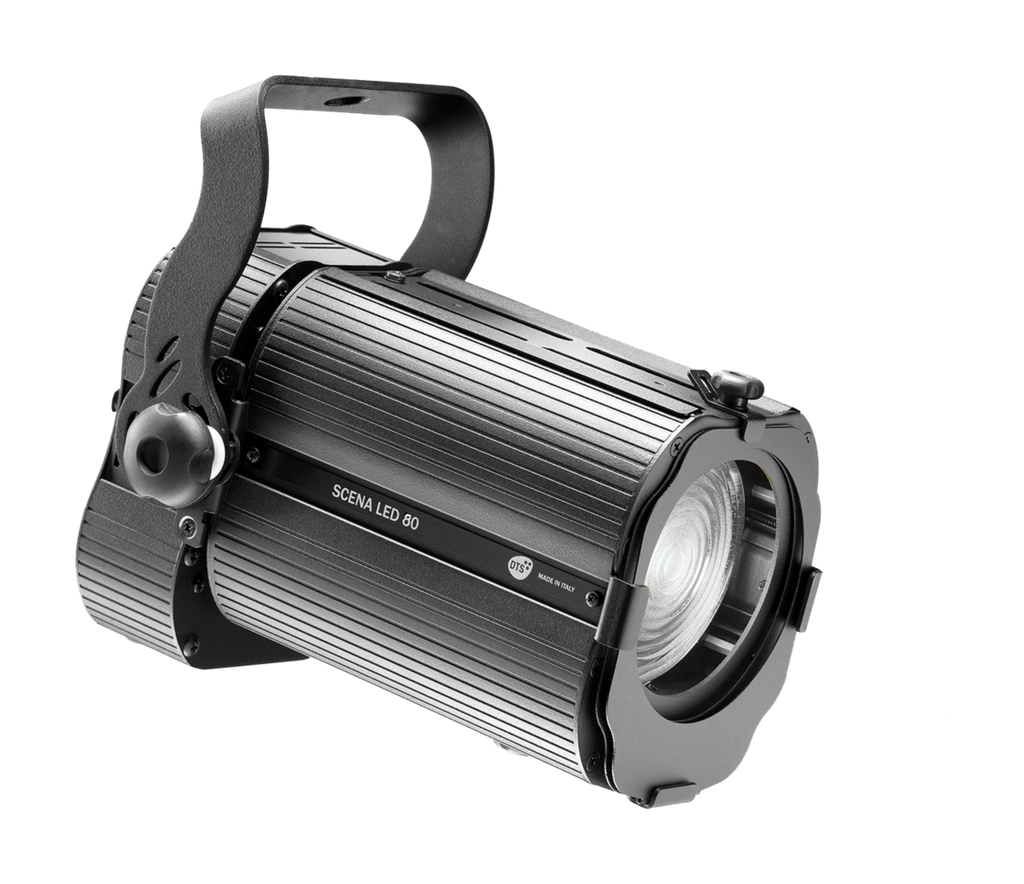

DTS - SCENA LED 80 Fresnel CT

    Deze combinatie bestaat niet.

    Aanmelden

    Interne referentie: 03.TS047.46.F
    Technische Fiche:

    linearly tunable White color temperature
    (2700 K - 6000 K)

    flicker free

    adjustable zoom 14° - 77°

    noiseless

    manual or DMX control

    easy maintanance

    long life LED (50,000 hours)

    Technical data

    SCENA LED 80 CT is a compact, lightweight, DMX-controlled LED projector equipped with an  Tunable WHITE LED 2700 K ÷ 6000 K. The unit features a Ø 112 mm Fresnel lens, and a long excursion 14°-77° linear zoom with high-efficiency optical system. SCENA LED 80 CT is a modern alternative to conventional lights, improving light quality, flexibility of use and installation, energy savings and component duration. The dimming curves are similar to those of halogen lamps. The panel connectors are PowerCON In&Out and XLR 5 pins In&Out. SCENA LED 80 FC is contained in a strong housing with folded edges, designed to resist all the rigors of continuous use. Also, the yoke has an exclusive round flange + clutch system which guarantees a perfect grip and safer operation. Thanks to a dedicated kit is possible to instal the fixture on electrified rails.

    Output

    • Single White LED source with linearly tunable color temperature (2700 K - 6000 K)

    • Lumen output: up to 5,400

    • CRI > 80

    • LED lifespan: 50,000 hours (70% lumen output)

    Optical group

    • Ø 112 mm Fresnel lens

    • 14° - 77° linear zoom

    Control

    • DMX 512 / RDM or Manual control

    • Multi-function 4-digit 7-segment LED display + 4 soft keys

    • Firmware updatable via DTS firmware uploader dongle

    DMX

    • 7 DMX channels (default)

    • 2 DMX channels

    • “CTC” mode

    Power supply

    • Electronic Wide-range 100-240Vac 50-60 Hz;

    • Power consumption: 100 W max

    • Power Factor: PF >0.95

    Connections

    • Power supply: PowerCON In&Out panel connectors

    • DMX: XLR 5-pole In&Out panel connectors


    Circuits protections

    Overvoltage and overtemperature circuits protection

    Operating temperature

    -10° / 40° C

    Physical

    • IP20

    • Weight: 4 Kg (8.8 lbs)

    • Finishing: Black

    Accessories included

    • 1 x PowerCON female cable connector (code 0520P014)

    • 1 x XLR 5 pins male cable connector (code 0508B028)

    • 1 x XLR 5 pins female cable connector (code 0508B027)

    • 1 x FilterframeBlack finishing - already installed on the projector (code 02M00422.46)

    Accessories on request

    • Barndoor Black finishing (code 03.TA206)

    • Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

    • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

    • Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

    • DTS firmware uploader dongle (code 03.LA.206)

    ACCESSORIES FOR ELECTRIFIED RAIL MOUNTING

    • Track adapter - black finishing (code 03.LA.235)
