    Interne referentie: 03.LDR016.F
    Technische Fiche:

    12 x 20 w ostar n RGBW LEDs

    single pixel control

    high quality color mixing

    3.5° (‘blade’ mode) - 30° motorized linear zoom

    ultra-fast motorized tilt

    integrated PSU


    Technical data

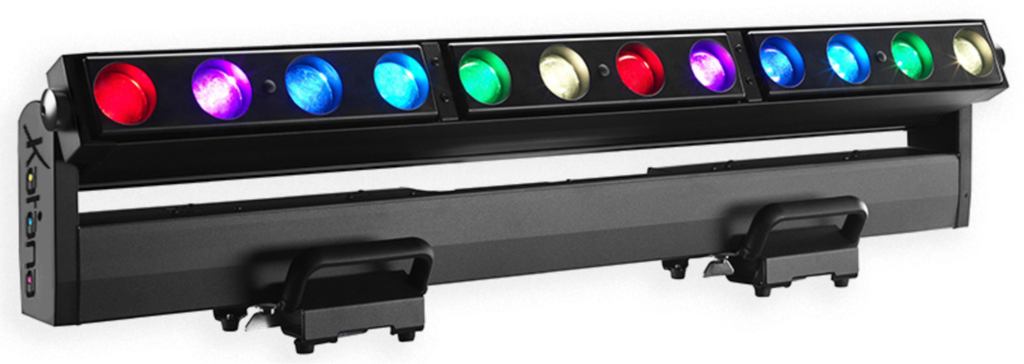

    KATANA is an advanced LED light designed for the entertainment market. KATANA introduced a brand new type of light beam: the dynamic ‘blade’ projection.
    Thanks to a custom 3.5° - 30° linear zoom, KATANA is capable to project an extra-bright blade of light that cuts through any show. Single pixel control lets you obtain stunning dynamic multicolor effects. And a super-fast motorized tilt adds a dynamic impact to your lighting performance.




    Output

    • 12 x 20 W Full Color (RGBW) LEDs
    Pixel to pixel control
    Lumen source: 9,600 lm

    Optical group

    • Linear motorized zoom 3.5° (‘blade’ mode) - 30°

    Color generation

    • 16 million colors

    • Wide palette of pure uniform whites with variable linear color temperature (2700 K - 8000 K)

    Tilt

    • Motorized Tilt 184°;
    • 16-bit movement resolution

    Control

    • Multi-function 4-digit 7-segment LED display + 4 soft keys

    • Controlled via DMX 512 and RDM standard digital communication protocols

    • Firmware updatable via DTS firmware uploader dongle

    DMX

    • 24 DMX channels (default)
    • 64 DMX channels
    • 16 DMX channels

    Power supply

    • Electronic Wide-range 100-240Vac 50/60 Hz;

    • Power consumption: 300 W max

    • Power Factor: PF >0.95


    Connections

    • Power supply: PowerCON TRUE1 In/Out panel connectors

    • DMX: XLR 5-pole In/Out panel connectors

    Circuits protections

    Overvoltage circuit protection
    and overtemperature circuit protection

    Operating temperature

    -10° / 40° C

    Physical

    • IP20

    • Weight: 19.5 Kg (43 lbs)

    • Finishing: Black

    Accessories included

    • 1 x PowerCON TRUE1 female cable connector (code 0520P066)

    • 1 x PowerCON TRUE1 male cable connector (code 0520P067)

    • 1 x XLR 5 pins female cable connector (code 0508B147)

    • 1 x XLR 5 pins male cable connector (code 0508B148)

    • 2 x Omega bracket with “Fast Lock” connection 1/4 turn (code 02K00467)

    • 2 x Bracket for ground installation with handles and rubber feet - already mounted on the unit
    (code 02SK0296)

    Accessories on request

    • Flightcase for 3 units (code 0521C066)

    • Aliscaf clamp for tube diameter 48-51 mm - max. load. 200 Kg (code 0521A033)

    • G-QUICK clamp Professional - max. load 100 Kg (code 0521A037)

    • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

    • Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

    • DTS firmware uploader dongle (code 03.LA.206)
