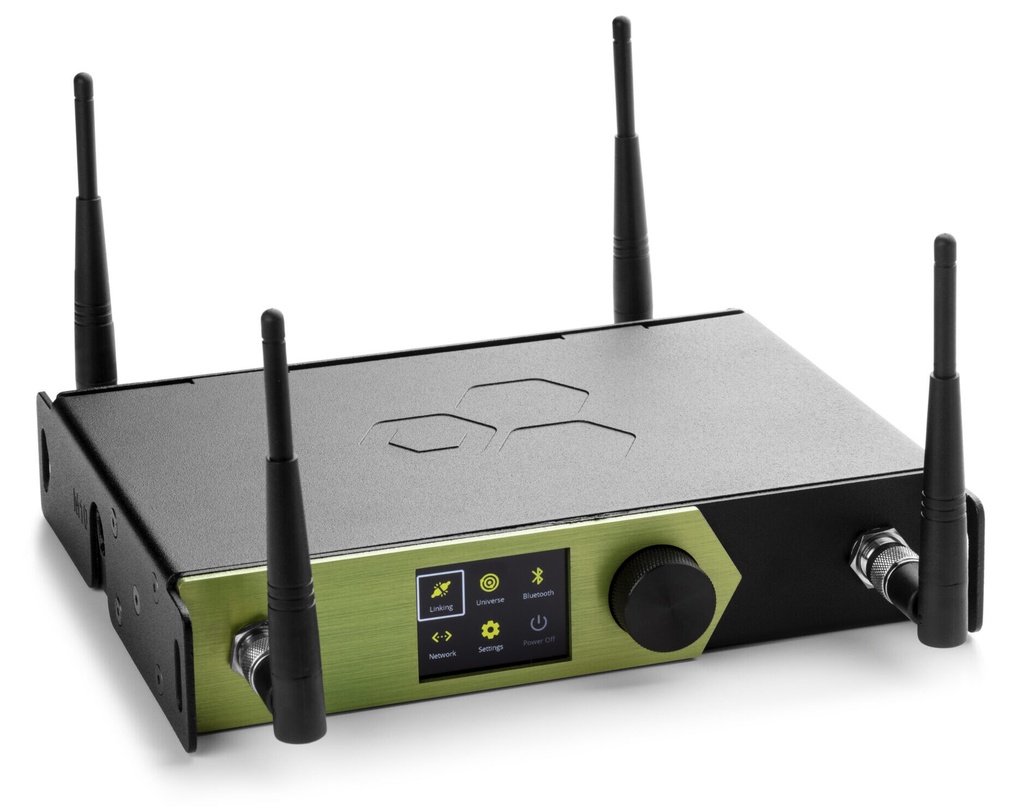

LumenRadio Stardust - 8 Universe DMX/RDM Transc. (RX/TX)
Documents
Interne referentie:
LUM-800-2281
Stardust takes industry leading CRMX technology to the next level with the introduction of features for the most demanding situations, setting the standards for Wireless DMX by providing unprecedented control and flexibility. Capable of delivering eight DMX/RDM universes and expanding the function of Cognitive-Coexistence with the new Fleet Alliance*, it has the reliability you trust and the amount of universes you need. The enhanced radio design allows for record breaking ranges on all eight universes simultaneously.
The onboard WiFi and Ethernet provides both configuration via web portal and transmission of sACN and Art-Net, while the Bluetooth interface enables configuration via the CRMX Toolbox App.
With the intuitive color screen it’s easier than ever to configure, using operation profiles to quickly change settings on the fly while the built-in backup battery makes sure the show will go on.
LumenRadio continues to deliver the most reliable Wireless DMX with both CRMX and W-DMX compatibility, featuring Linking Key* along with industry standard 5 ms latency, error correction and 128 bit encryption at full refresh rate for all eight universes.
*Fleet Alliance enables expansion of your universes beyond 8 as the transmitters automatically can coordinate the spectrum, providing many more universes without the need for frequency planning.
*Linking Key encrypts the CRMX transmission with user specified keys, making it possible to move between CRMX networks in a completely new, smooth, way.
FEATURES
- Eight Universe CRMX Transmitter
- DMX/RDM, sACN and Art-Net 1-4
- Ethernet, 5 GHz WiFi and Bluetooth
- Configuration via Web portal, App or Front panel
- Compatible with CRMX and W-DMX G3/G4s
Supported Protocols
- DMX / RDM
- sACN / Art-Net 1-4
- CRMX
- W-DMX G3 / G4s
- Ethernet
- WiFi 802.11b/g/n/ac
- Bluetooth 5.0
RF Characteristics
- Frequency range: 2402-2480 MHz
- Radio module: 4 x TimoTwo
- 5ms latency
- 128-bit encryption
- Forward Error Correction
Connectors
- Ethernet: RJ45
- Antennas: 4 x RP-TNC
- DC: 2.5mm/5.5mm Barrel connector
- AC: powerCON Tru1
Power
- PoE
- DC 10-20 V
- Backup Battery (15 min. runtime)
- AC 100-240 VAC
Physical
- IP20 Aluminium enclosure
- Front panel color screen and rotary knob
- M10 and ⅜” Threads
- Rack and wall mount accessories
- V-Lock battery mount accessory
- 22 x 20 x 4.4 cm
