FOS 100 DYNAMIC SOLO FC IP20

  • Lens Type

Deze combinatie bestaat niet.

Aanmelden

Technische Fiche:

Technical data

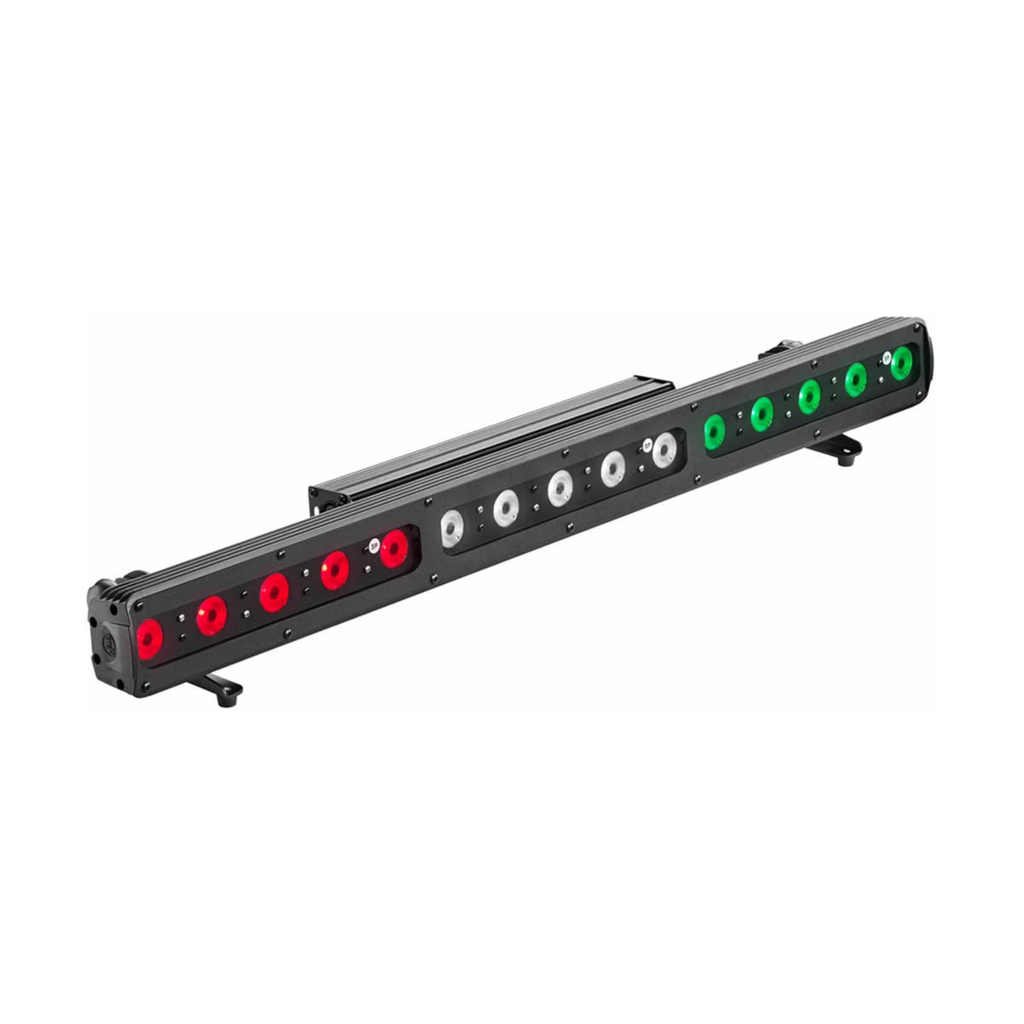

FOS 100 DYNAMIC is compact and robust LED bar fitted with 15 OSTAR Full Color LEDs individually controllable. This powerful LED bar can be used either for background lighting or for dynamic effects. The unit is available with different beam angles and it can be fitted with additional filters to further enlarge its projections range.
FOS 100 Dynamic is IP65-rated; the unit can be fitted with an IP20-rated PSU for temporary installations, or with an IP65-rated PSU for permanent ones.





Output

• 15 Full Color (RGBW) LEDs

• Pixel to pixel control

• Lumens: 4,608

• LED lifespan: 50,000 hours (70% lumen output)

Optical group

• 3 lenses sets available: 10° / 25° / 40°

• Holographic filters available on request

• Uniform projection on surfaces

Color generation

• 16 million colors

• Wide palette of pure uniform whites

• Variable linear color temperature (2700 K - 8000 K)

Control

• Multi-function 4-digit 7-segment LED display + 4 soft keys

• RDM / DMX 512 protocols

• Firmware updatable via DTS firmware uploader dongle

DMX

• 10 DMX channels (default)

Power supply

• Integrated Wide-range PSU 100-240Vac 50-60 Hz;

• Power consumption: 150 W max

• Power Factor: PF >0.95


Connections

• IP20-rated PSU
_ PowerCON IN/OUT panel connectors
_ XLR 5 pins IN/OUT panel connectors

• IP65-rated PSU
_ Power IN cable; Power OUT Harting panel
connector
_ DMX IN/OUT Harting panel connectors

Operating temperature

-10° / 40° C

Physical

• IP20 or IP65
• IK protection degree: IK09 (only IP65-rated)
• Housing: Aluminium
• Weight
- IP20 rated: 7.1 Kg (15.7 lbs)
- IP65 rated: 7.5 Kg (16.5 lbs)
• Finishing: Black

Accessories included

• 1 x Fit joint for joining bars inline (code 02M09519.46)

• 2 x M4 knob for fit joint (code 0511P014)

ONLY FOR IP20-RATED

• 1 x PowerCON IN female cable connector (code 0520P014)

• 1 x PowerCON OUT female cable connector (code 0520P029)

• 1 x XLR 5 Pins female cable connector (code 0508B027)

• 1 x XLR 5 Pins male cable connector (code 0508B028)

ONLY FOR IP65-RATED

• 1 x HARTING 5 pins male connector (code 02K00548.1)

• 1 x HARTING 4 pins male connector (code 02K00490)

Accessories on request

• Lenses set Narrow 10° (code 03.LK.060.N)

• Lenses set Medium 25° (code 03.LK.061.N)

• Lenses set Wide 40° (code 03.LK.062.N)

• Barndoor and Holografic Filter holder (code 03.LA.142)

• Holographic Filter (complete list in the accessories section)

• Kit Fit joint for joining bars inline - includes 1 x 02M09519.46 and 2 x 0511P014 (code 03.LA.023)

• Line joining truss kit (code 02SK0382)

• Fast-lock bracket kit (code 03.LA.024)

• Short bracket for wall installation (code 03.LA.025)

• Single-side light shield (code 02M09594.46)

• Omega bracket with “Fast Lock” connection 1/4 turn (code 02K00467)

• G-QUICK clamp Professional - max. capacity load 100 Kg (code 0521A037)

• Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

• Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Flightcase for 4 units (code 0521C069)

• DTS firmware uploader dongle (code 03.LA.206)

ONLY FOR IP65-RATED

• Permanent Installation kit IP68 2 POWER + 2 DMX (code 03.LA.216)



W/ Power supply and DMX control on board. IP20 Indoor. 15 Full Colour RGBW Leds (DYNAMIC FC) with Pixel to Pixel control. • Weight: 7,1 Kg • Lumens: 4,608 @ 500mA • Consumption: 150 W Max • BLACK finishing
