23 Ostar Stage N RGBW LEDs
real beam and wash projections
single pixel control
perfect RGBW color mixing
high quality optical system
linear zoom 4° - 52°
adjustable color temperature 2700K - 8000K
silent operation
'FPR’ - free pan rotation system (DTS patent)
27,000 lux @ 5 m
lightweight: only 13 kg
Technical data

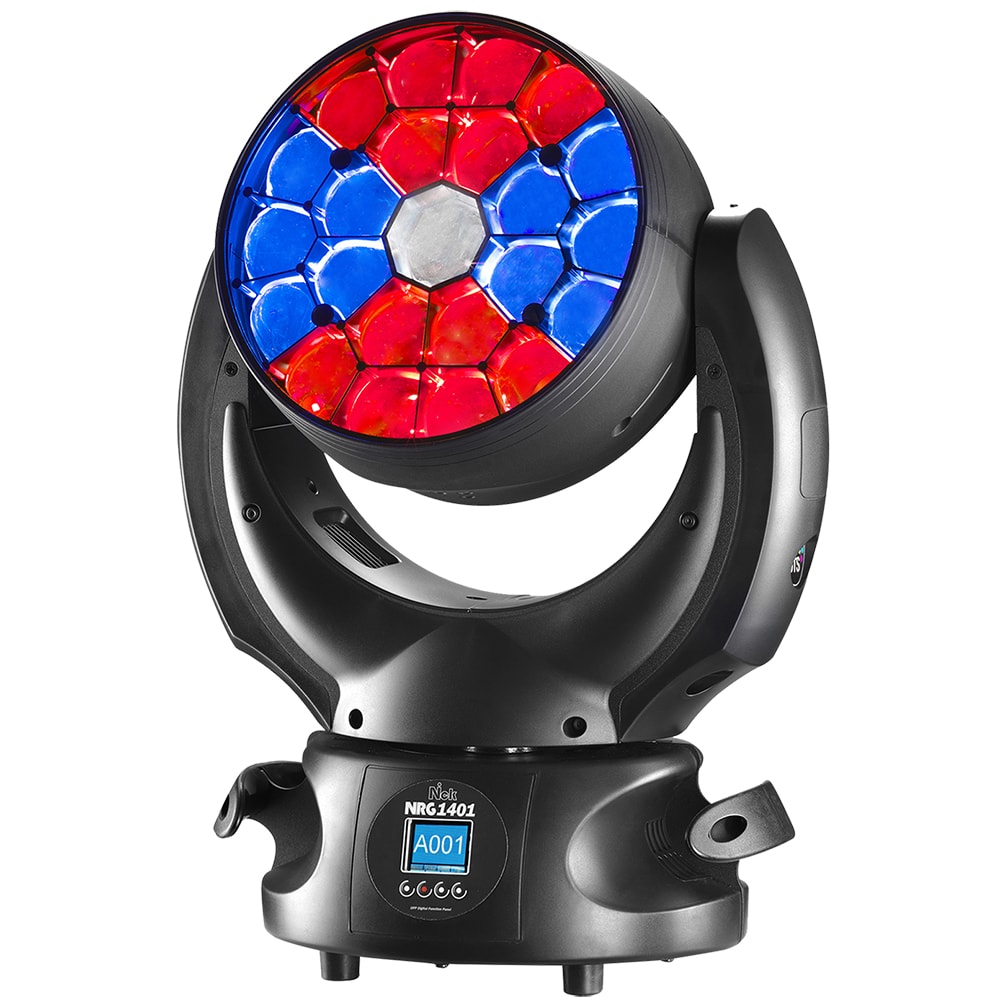

NICK NRG 1401 is a high performance LED wash moving head: extreme brightness, single pixel control, and 4° to 52° zoom range make this fixture perfect in a range of applications, either as a beam light with multi-color rays, or as a wash light with a very wide projection. NICK NRG 1401 is suitable for medium/ big venues, and it’s the perfect solution for TV studios, delivering top-of-the-line visual effects or perfectly uniform wash lighting.
NICK NRG 1401 is equipped with 23 high power OSTAR RGBW LEDs.
|
Output • 23 x 20 W Full Color (RGBW) LEDs • 11,500 Lumen source • Pixel to pixel control • LED lifespan: 50,000 hours (70% lumen output) • 4°- 52° linear motorized zoom with high efficiency optical system • 27,000 Lux at 5 m • Uniform projection on surfaces, from very wide Wash to PC Beam • 16 million colors • Wide palette of pure uniform whites • Variable linear color temperature • Multi-function OLED graphic color display + 4 • Controlled via DMX 512 and RDM standard • Firmware updatable via DTS firmware uploader dongle • 33 DMX channels (default) • ‘FPR’ system (DTS patent) • Tilt 258°: 1.1 s • 16-bit movement resolution • Wide-range 100-240Vac 50-60 Hz • Power consumption: 390 W • Power Factor: PF >0.95 |
Connections • DMX: XLR 3-pole In/Out and 5-pole In/Out • Power supply: PowerCON In/Out panel Overvoltage and overtemperature circuits protection -10° / 40° C • IP20 • 1 x PowerCON female cable connector (code 0520P014) • 1 x XLR 5 Pins female cable connector (code 0508B147) • 1 x XLR 5 Pins male cable connector (code 0508B148) • 1 x omega bracket with “Fast Lock” connection 1/4 turn (code 02K00467) • Flightcase for 4 units (code 0521C059.1) • Aliscaf clamp for tube diameter 48-51 mm - max. load. 200 Kg (code 0521A033) • G-QUICK clamp Professional - max. load 100 Kg (code 0521A037) • Omega bracket with “Fast Lock” connection 1/4 turn (code 02K00467) • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158) • Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010) • DTS firmware uploader dongle (code 03.LA.206) |
