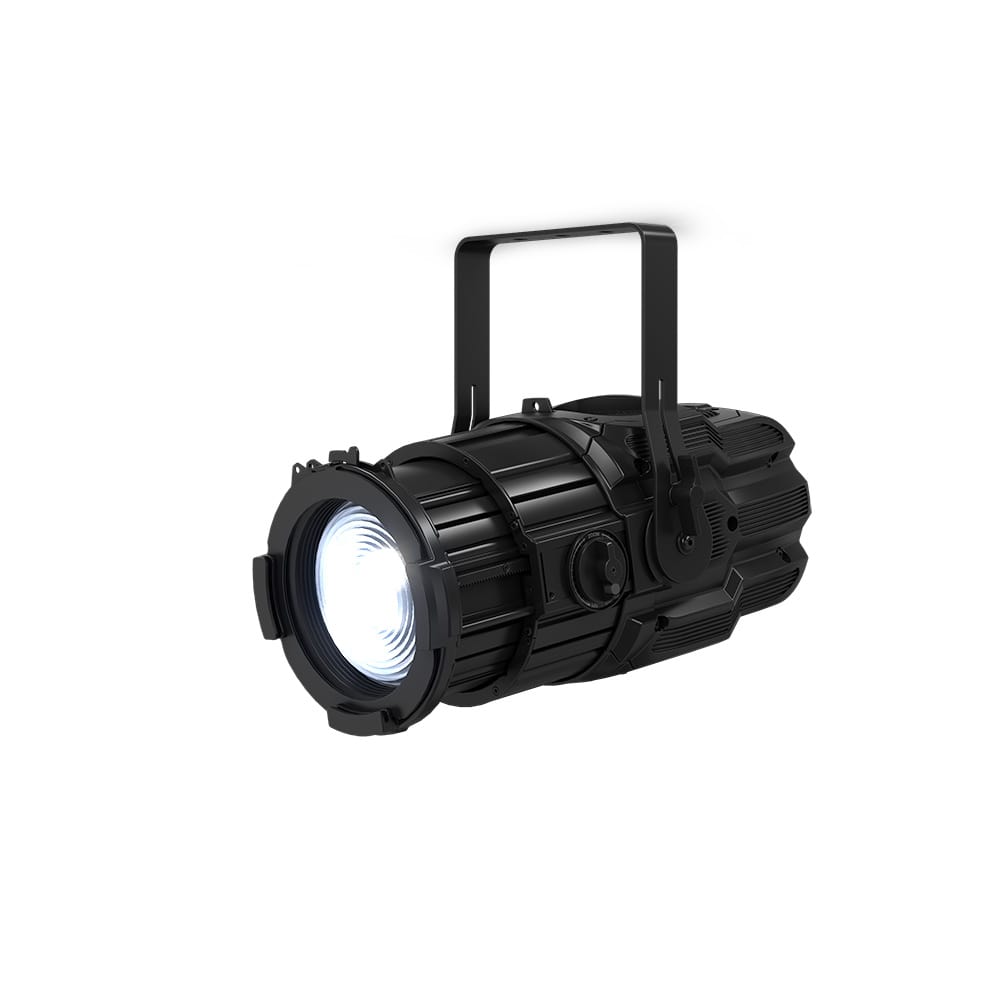

DTS - Tenore 5 HDW PC

https://www.avl.be/web/image/product.template/4332/image_1920?unique=2945f4e

    Deze combinatie bestaat niet.

    Aanmelden

    Prijzen exclusief btw
    Algemene voorwaarden


    Interne referentie: 03.TTN101.49.A
    Technische Fiche:
    Extra Info:

    TENORE 5 HDW

    The new high-power conventional projector with Fresnel or PC lens,
    linear CCT and Italian design.
    High performance and low noise.

    Highlights

    high definition white

    Ø 175 mm Fresnel lens

    superior white light quality
    CRI up to 98

    linear CCT

    noise management

    Green – Magenta linear balance,
    for a natural reproduction of any skin tone

    Technical data

    TENORE 5 HDW is the un-conventional evolution to the conventional series of static LED lights. Thanks its high power multi-chip source and the linear CCT management, this conventional projector offers superior white light quality and an optimal color rendering up to 98.
    To meet the needs of theater and television locations, Tenore allows noise control with 4 fan management modes up to 26dBA.


    Output

    • Multi chip LED Source

    • Lumens output: 9,300 lm (Fresnel lens)

    • Lumens output: 6,300 lm (PC lens)

    • CRI: up to 98

    • TLCI: up to 96

    • LED Lifespan: 20,000 hours
    (70% lumen output)

    Optical group

    • Ø 175 mm Fresnel lens or Antihalo (PC) lens

    • Ø 150 mm Antihalo (PC) lens

    • Linear zoom
    - 12° - 62° with Frensel lens
    - 6.5° - 45° with PC lens

    White generation

    • 6-color LED engine

    • Linear CCT (1800 K - 10000 K)

    • Linear ‘Green saturation’

    Dimmer

    • ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values

    • Tungsten emulation - CCT variation emulates behavior of Halo-lamps

    Control

    • LCD graphic display + Jog Shuttle

    • RDM/DMX 512 protocols

    • ‘Standard’, ‘Silent’, ‘Ultra Silent’ and ‘Automatic’ fan modes

    • Noise level
    - Standard: 34dBA @ 1m (normal operation, 100% power)
    - Silent: 29dBA @ 1m (normal operation, 87% power)
    - Ultra Silent: 26dBA @ 1m (normal operation, 70% power)
    - Automatic: fans adapt to operational status (output power priority)

    • Firmware updatable via DTS firmware uploader dongle

    DMX

    • 2 DMX modes:

    CCT (Default) - Dimmer 16 bit with Correlated Color Temperature; Green saturation control
    Basic - Dimmer 8 bit with Correlated Color Temperature control


    Power supply

    • Wide range100/240 Vac 50-60 Hz

    • Power consumption: 390 W max / 230Vac

    • Power Factor: PF >0.94

    Connections

    • DMX: XLR 5 pole In/Out panel connectors

    • Power supply: PowerCON TRUE1 In/Out panel connectors

    Circuits protections

    Overvoltage and overtemperature circuits protection

    Operating temperature

    -10° / 45° C

    Storage temperature

    -20° / 60° C

    Physical

    • IP20

    • Weight:
    - FR - 9.3 Kg (20.5 lbs)
    - PC - 10.4 Kg (22.9 lbs)

    • Finishing: Black

    Accessories included

    • 1x PowerCON TRUE1 female cable connector (code 0520P066)

    • 1x XLR 5 pins female cable connector (code 0508B147)

    • 1x XLR 5 pins male cable connector (code 0508B148)

    • 1x Filter frame Black finishing - already installed on the projector (code 02M093424.49)

    Accessories on request

    • Barndoor 4 leaf Black finishing (code 03.TBD07.49)

    • Barndoor 8 leaf Black finishing (code 03.TBD09.49)

    • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

    • Aliscaf clamp for Ø 48-51 mm tube-max load 100 Kg 8code 0521A033)

    • Professional G-QUICK clamp - max load 100 Kg (code 0521A037)

    • Safety cable 3 x 600 mm - BGV-C1 certified (code 0521A049)
    - Single stranded: Max 20 Kg (44 lbs)
    - Double stranded: Max 30 Kg (66 lbs)

    • Safety cable for Barndoor / FIlterframe - Ø 0,8mm (code 0521A048)

    • DTS firmware uploader dongle (code 03.LA.206)
