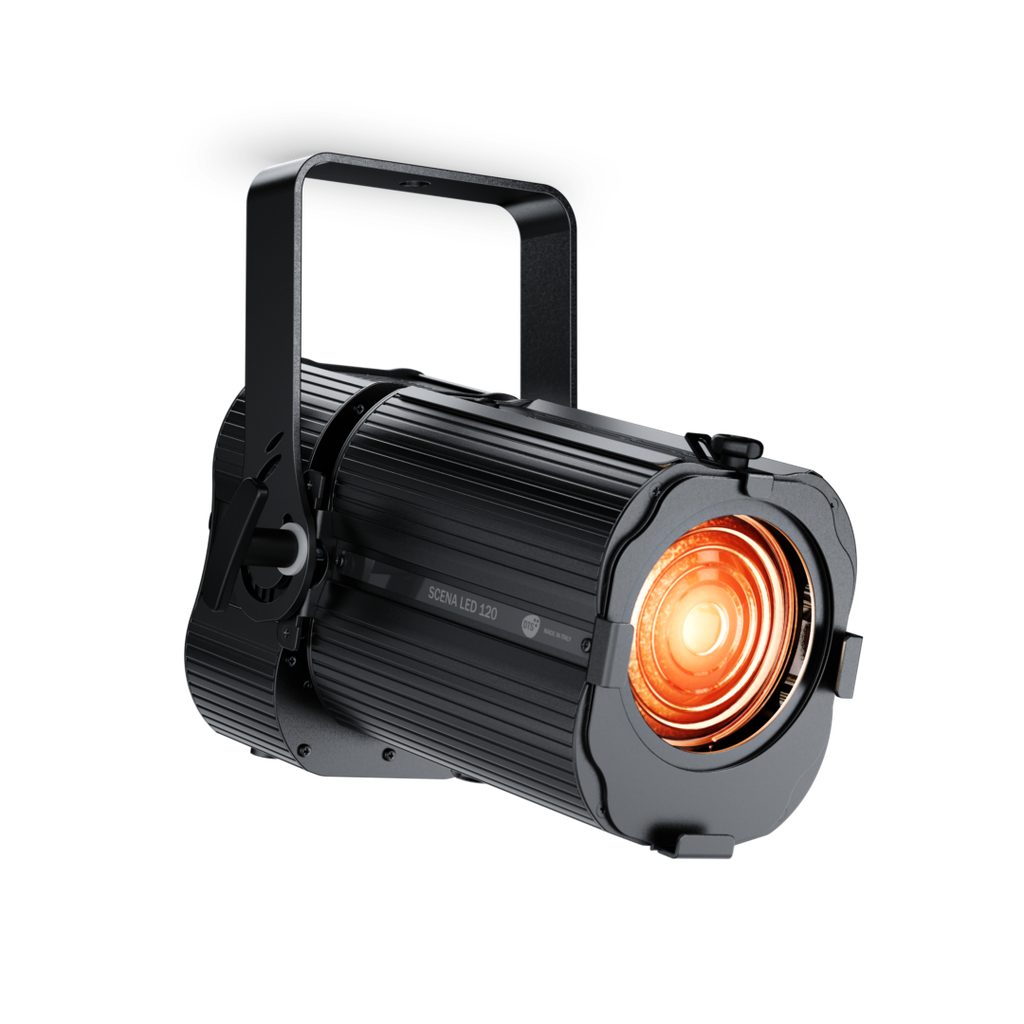

DTS - SCENA LED 120 HQS - FR Fresnel

    Deze combinatie bestaat niet.

    Aanmelden

    Interne referentie: 03.TS081.46.F
    Technische Fiche:

    high-power 4-color LED source

    Ø 112 mm Fresnel lens

    20°- 74° linear zoom

    ‘Hi-Q dimming’ technology

    HQS (High Quality Spectrum)

    extended color palette

    wide gamut of pastel-like colors


    Technical data

    SCENA LED 120 HQS is a high power projectr in a very compact and lightweight size and quipped with a high efficiency 120W LED source, coupled with a 20° - 74° linear zoom. SCENA LED 120 has the HQS trademark (High quality Spectrum-DTS trademark) synonimus of high quality light: the fixture generates a wide gamut of pastel-like nuances with rich warm tones. This layout makes the unit particularly suitable for theatres, TV studios and applications where color quality is paramount.

    Output

    • Single 4-color LED (RGBA)

    • Lumen output (RGBA): up to 2,720

    • CRI > 90

    • LED lifespan: 50,000 hours (70% lumen output)

    Optical group

    • Ø 112mm Fresnel lens

    • 20°- 74° linear zoom

    Color generation

    • 16 million colors

    • Wide palette of pure uniform whites

    • Variable linear color temperature (2700 K - 8000 K)

    • HQS (High Quality Spectrum) - DTS’ trademark certifies a product’ superior white light quality and its ability to generate an extended color palette offering a wider gamut of pastel shades with rich warm nuances.

    Dimmer

    • ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values

    Control

    • DMX 512 / RDM protocols

    • 4-digit 7-segment LED display + 4 soft keys

    • Firmware updatable via DTS firmware uploader dongle

    DMX

    • 10 DMX channels (default)

    • 4 DMX channels

    • 6 DMX channels

    • “Fine” mode

    • “Prom” mode

    Power supply

    • Wide-range 100-240Vac 50-60 Hz

    • Power consumption: 120 W max

    • Power factor: PF > 0.95


    Connections

    • Power supply: PowerCON TRUE1 In/Out panel connectors

    • DMX: XLR 5-pole In/Out panel connectors

    Circuits protections

    Overvoltage and overtemperature circuits protection

    Operating temperature

    -10° / 40° C

    Physical

    • IP20

    • Weight: 4.5  Kg (9.9 lbs)

    • Finishing: Black

    Accessories included

    • 1 x Cable with PowerCON TRUE1 female connector (code 02K0012267.0015)

    • 1 x FilterframeBlack finishing - already installed on the projector (code 02M00422.46)

    Accessories on request

    • Barndoor Black finishing (code 03.TA206)

    • Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

    • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

    • Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

    • DTS firmware uploader dongle (code 03.LA.206)
