    Interne referentie: 03.TP039.46
    Technische Fiche:

    linearly tunable white color temperature
    (2700 K – 6500 K)

    CRI >90

    internal 4-shutter shaping system

    flicker free

    adjustable zoom 15.5° - 38°

    noiseless operation

    manual or DMX control

    easy maintenance

    long life led (50,000 hours)


    Technical data

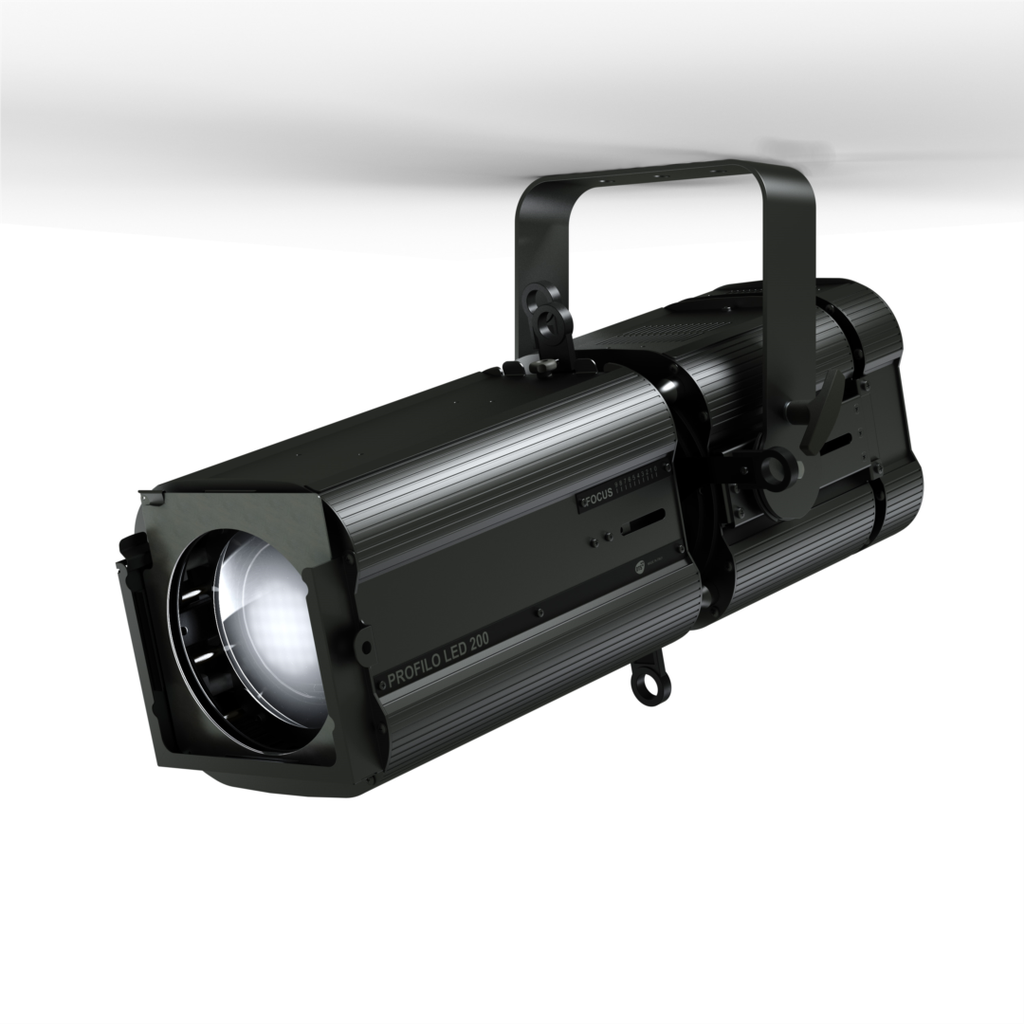

    PROFILO LED 200 CT is a high-power LED-based profile spot contained in a strong and lightweight housing. The unit features an internal four-shutter removable shaping system, and a high-definition 15.5° to 38° linear zoom. The unit LED’s white color temperature is linearly tunable from 2700 K to 6500 K; a must in the most demanding applications, where a perfectly adjustable white color temperature is a key requirement. PROFILO LED 200 CT offers technical features that dramatically improve light quality and flexibility of use: CRI >90, flicker-free projection, DMX/RDM or manual control, noiseless operation, virtually zero maintenance costs, lower power consumption.

    Output

    • Single high-power white LED with linearly tunable color temperature (2700 K - 6500 K)

    • CRI >90

    • LED lifespan: 50,000 hours (70% lumen output)

    Optical group

    • 15.5°- 38° linear zoom;

    • High definition zoom lens with double optical condenser lens

    Framing system

    • Framing system with 4 asymmetric blades

    • Each blade can be inverted

    • 70° full system rotation (+/- 35°)

    • Blades operate on three discrete plans

    • A 5th blade can be added

    Gobos

    Gobo type B metal or glass
    • Ø external: 86 mm
    • Ø of image: 60 mm
    • Thickness: from 0,2 to 2 mm

    Control

    • DMX 512 / RDM or Manual control

    • Multi-function 4-digit 7-segment LED display + 4 soft keys

    • Firmware updatable via DTS firmware uploader dongle

    DMX

    • 7 DMX channels (default)
    • 2 DMX channel
    • “CTC” mode

    Power supply

    • Electronic Wide-range 100-240Vac 50-60 Hz;

    • Power consumption: 200 W max

    • Power Factor: PF >0.94

    Connections

    • DMX: XLR 5-pole In/Out panel connectors

    • Power supply: PowerCON TRUE1 In/Out panel connectors


    Circuits protections

    Overvoltage and overtemperature
    circuits protection

    Operating temperature

    -10° / 40° C

    Physical

    • IP20

    • Internal system with four removable shutters

    • Yoke featuring an exclusive sliding system with clutch for a wider tilt

    • Weight: 16.85 Kg (37.15 lbs)

    • Finishing: Black

    Accessories included

    ON BOARD

    • 1 x Soft edge filter assembly (code 02TP0047)

    • 1 x Filterframe Black finishing (code 02M00420.49)

    IN THE BOX

    • 1 x PowerCON TRUE1 female cable connector (code 0520P066)

    • 1 x XLR 5 pins female cable connector (code 0508B147)

    • 1 x XLR 5 pins male cable connector (code 0508B148)

    • 4 x Shutter blades assembly (single blade code 02SK0429)

    Accessories on request

    • 5th shutter blade (code 02SK0429)

    • Iris/Diaphragm (code 03.TA225)

    • Gobo holder (code 03.TA226)

    • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

    • Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

    • Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

    • DTS firmware uploader dongle (code 03.LA.206)
