    Interne referentie: 03.TP033.46
    Technische Fiche:

    linearly tunable White color temperature
    (2700 K - 6000 K)

    flicker free

    adjustable zoom 20° - 36°

    noiseless

    DMX or manual control

    easy maintanance

    long life LED (50,000 hours)


    Technical data

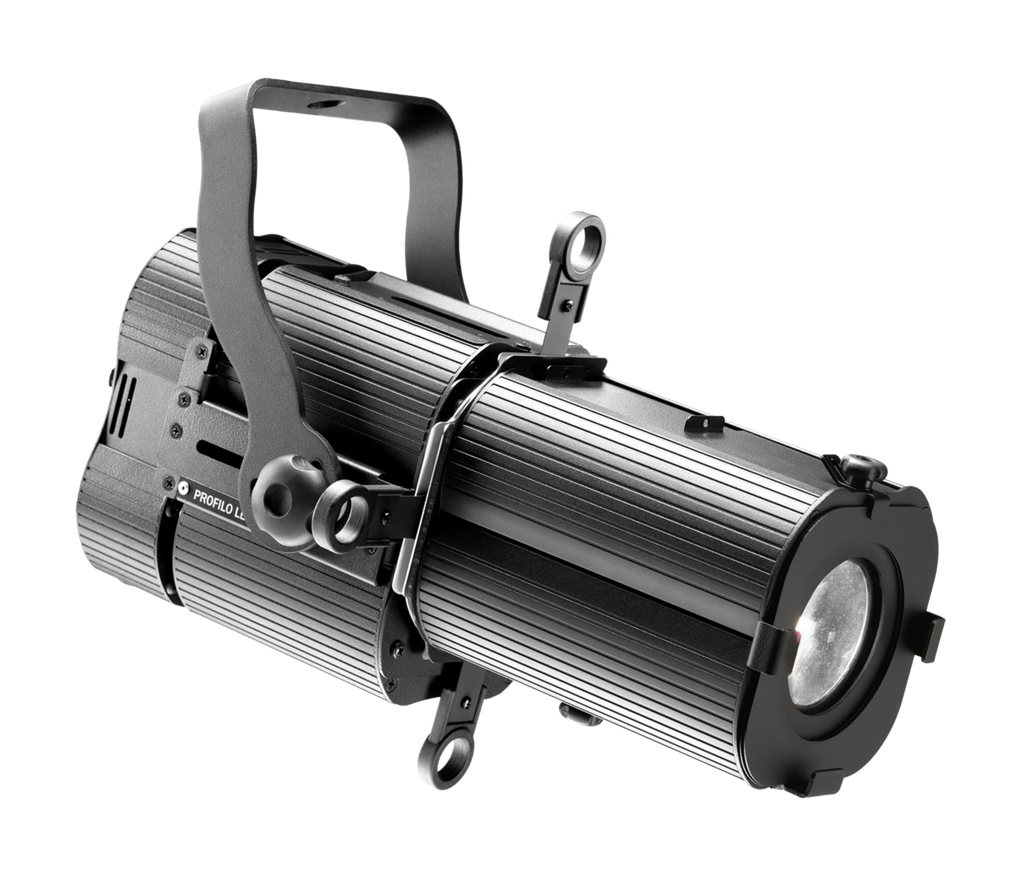

    PROFILO LED 80 CT is a very compact LED profile spot equipped with an high efficiency 100 W white LED source. The unit LED’s white color temperature is linearly tunable from 2700 K to 6000 K; a must in top level Television and Theatre applications, where a perfectly adjustable white color temperature is a key requirement. The unit features an internal four-shutter shaping system, and a 20° to 36° linear zoom. Thanks to a dedicated kit is possible to instal the fixture on electrified rails.

    Output

    • Single high-power white LED with linearly tunable color temperature (2700 K - 6000 K)

    • CRI > 80

    • LED lifespan: 50,000 hours (70% lumen output)

    Optical group

    • 20°- 36° linear zoom;

    • High definition zoom lens with double optical condenser lens

    Gobos

    • Gobo type M
    • Ø external: 66 mm
    • Ø of image: 48 mm
    • Thickness: from 0,2 to 3 mm

    Control

    • DMX 512 / RDM or Manual control

    • 4-digit 7-segment LED display + 4 soft keys

    • Firmware updatable via DTS firmware uploader dongle

    DMX

    • 7 DMX channels (default)
    • 2 DMX channels
    • “CTC” mode

    Power supply

    • Electronic Wide-range 100-240Vac 50-60 Hz;

    • Power consumption: 100 W max

    • Power Factor: PF >0.95

    Connections

    • Power supply: PowerCON In/Out panel connectors

    • DMX: XLR 5-pole In/Out panel connectors


    Circuits protections

    • Overvoltage and overtemperature circuits protection

    Operation termperature

    -10° / 40° C

    Physical

    • IP20

    • Internal system with four removable shutters

    • Strong housing with folded edges

    • Yoke featuring an exclusive round flange + clutch system

    • Weight: 6.3 Kg (13.9 lbs)

    • Finishing: Black

    Accessories included

    • 1 x PowerCON female cable connector (code 0520P014)

    • 1 x XLR 5 pins male cable connector (code 0508B028)

    • 1 x XLR 5 pins female cable connector (code 0508B027)

    • 1 x Filterframe - Black finish - already mounted on the unit (code 02M00426.46)

    • 4 x Shutter blades (single blade code 02SK0335)

    Accessories on request

    • Gobo holder (code 03.TA224)

    • Iris/diaphram (code 03.TA223)

    • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

    • Universal Hook Clamp - Max load 40 Kg - 88 lbs (code 0521A047)

    • Safety cable - 3 x 600 mm - max. capacity load 30 Kg (code 0521A010)

    • DTS firmware uploader dongle (code 03.LA.206)

    ACCESSORIES FOR ELECTRIFIED RAIL MOUNTING

    • Track adapter - black finishing (code 03.LA.235)
