DTS - EUPHONY 3 Ceiling


    Deze combinatie bestaat niet.


    Prijzen exclusief btw
    Algemene voorwaarden

    Interne referentie: 03.LDR021.03.T
    Technische Fiche:

    CEILING MOVING HEADS are multifunctional projectors created to provide the interior design projects with the same lighting quality that is essential in the entertainment industry. This product range represents the perfect balance between the two markets and thanks to the “Silent” mode, the ceiling moving heads are ideal for ballrooms, convention rooms and large venues in the hotellerie industry.

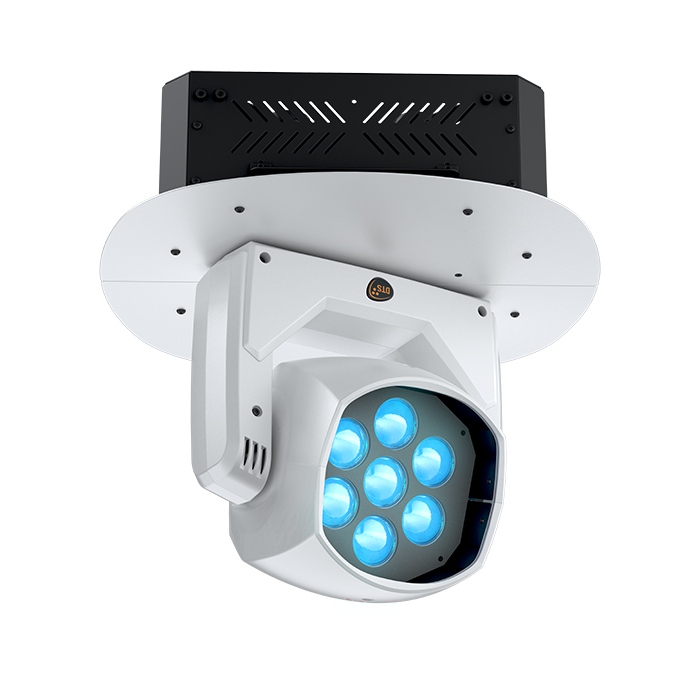

    Euphony 3 Ceiling is a LED wash light featuring 7 RGBW LEDs, a wide zoom and an efficient optical system it can provide high standard performances for dynamic color effects or uniform projections on surfaces. EUPHONY 3 CEILING guarantees perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, thanks to the ‘Hi-Q Dimming’ technology.


    • 7 x 60W Full Color (RGBW) LEDs

    • Lumens output (RGBW): 4,718 @ 700mA

    • LED lifespan: 50,000 hours (70% lumen output)

    Optical group

    • 5.6°- 69° linear motorized zoom with high-efficiency optical system

    • Soft frost filter included

    • Uniform projection on surfaces, from very wide Wash to PC Beam

    Color generation

    • 16 million colors

    • Wide palette of pure uniform whites

    • Variable linear color temperature (2700 K – 8000 K)

    • 16 gel filter emulations by ‘Standard’ DMX mode


    • ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values

    Pan & Tilt

    • Pan 540° (1.8 sec)
    • Tilt 215° (1 sec)
    • 16-bit resolution


    • 2 DMX modes:
    - 1. Standard - 18 channels (default)
    - 2. Compatibility 20 channels


    • LCD graphic display + 4 soft-keys; Auto-flip; Key-Lock function

    • RDM/DMX 512 protocols

    • Wireless DMX available on request

    • ‘Standard’ and ‘Silent’ operation modes

    • Internal operating system updatable via DTS dongle firmware uploader

    • Li-Fe backup battery for controlling the display settings even when the unit is not powered

    Power supply

    • Electronic full-range 100-240Vac 50-60 Hz

    • Power consumption: 420 W max

    • Power Factor: PF >0.94


    • Power supply: PowerCON TRUE1 In/Out panel connectors
    • DMX: XLR 3-pole and 5-pole In/Out panel connectors

    Circuits protection

    Overvoltage and overtemperature circuits protection


    • Finishing: RAL 9003
    • Weight: 20 Kg (44.1 lbs)

    Accessories included

    • 1 x Cable with PowerCON TRUE1 female connector (code 02K0012267.0015)

    • 1 x Soft frost filter (code 02SK0472)

    Accessories on request

    • 03.LA.206 • DTS Dongle firmware uploader

    • 0521A010 • Safety cable 3 x 600 mm Max load 30 Kg
