    Interne referentie: 03.LDR020.F
    Technische Fiche:

    perfect RGBW color mixing

    5.6°- 69° linear zoom

    high- efficiency optical system

    adjustable color temperature 2700 K - 8000 K

    16 gel filter emulations

    Silent mode for theatres and TV studios

    'Hi-Q Dimming' technology


    Technical data

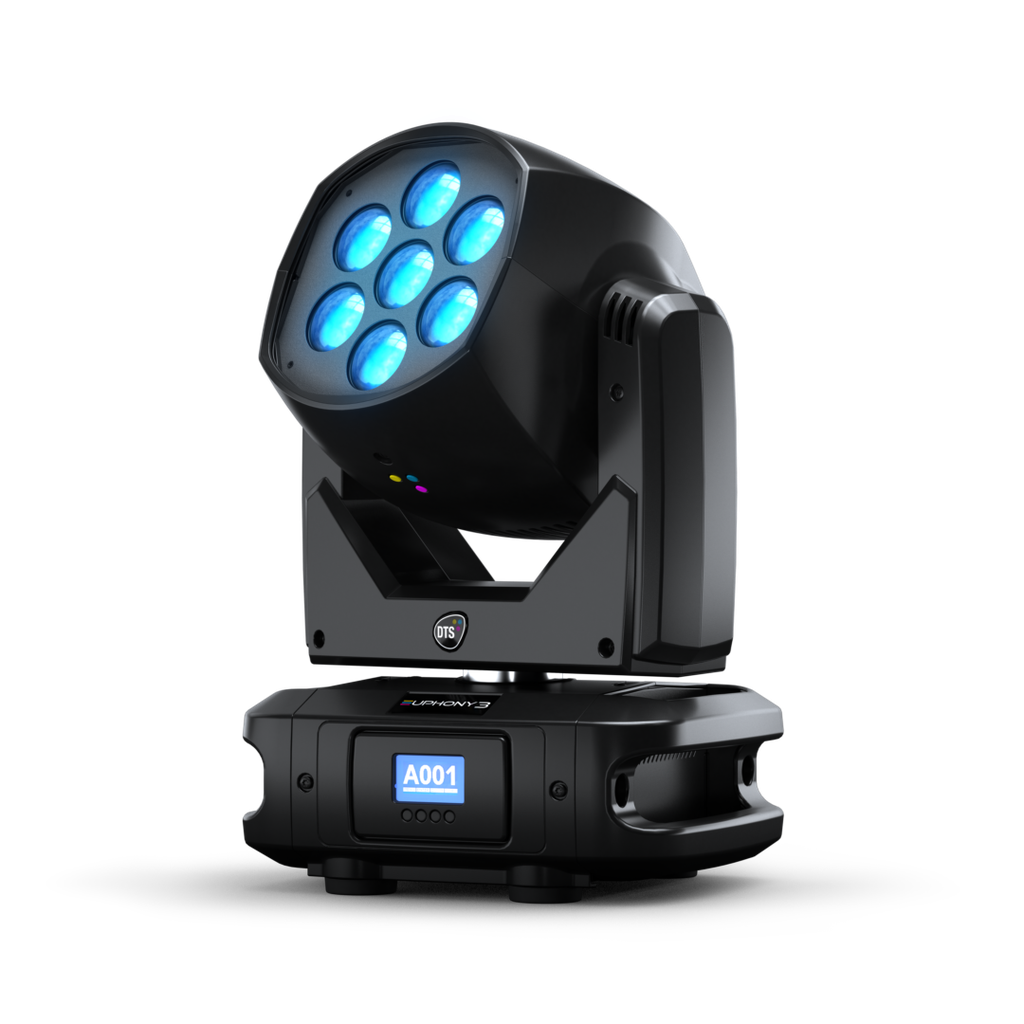

    EUPHONY 3 is the new compact LED wash light featuring 7 Full Color LEDs, a wide zoom (5.6°- 69°) and high- efficiency optical system.
    EUPHONY 3 is the extremely versatile moving head suitable for uniform projections on surfaces, from wide Wash to PC Beam. Furthermore thanks to its perfect color mixing, 16 gel filter emulations and the Hi-Q Dimming technology it can provide high standard performances.

    Output

    • 7 x 60W Full Color (RGBW) LEDs

    • 7,500 Lumen output

    • LED lifespan: 50,000 hours (70% lumen output)

    Optical group

    • 5.6°- 69° linear motorized zoom with high- efficiency optical system

    • Soft frost filter included

    • Uniform projection on surfaces, from very wide Wash to PC Beam

    Color generation

    • 16 million colors

    • Wide palette of pure uniform whites with variable linear color temperature (2700 K - 8000 K)

    • 16 gel filter emulations by ‘Standard’ DMX mode

    Dimmer

    • ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values

    Control

    • LCD graphic display + 4 soft-keys; Auto-flip; Key-Lock function

    • RDM/DMX 512 protocols

    • Wireless DMX available on request

    • ‘Standard’ and ‘Silent’ operation modes

    • Firmware updatable via DTS firmware uploader dongle

    • Li-Fe backup battery for controlling the display settings even when the unit is not powered

    DMX

    • 2 DMX modes:
    - 1. Standard - 18 channels (default)
    - 2. Compatibility 20 channels

    Pan & Tilt

    • Pan 540° : 1.8 s

    • Tilt 215° : 1 s

    • 16-bit resolution

    • Pan / Tilt lock


    Power supply

    • Wide-range 100-240Vac 50-60 Hz

    • Power consumption: 420 W max

    • Power Factor: PF >0.94

    Connections

    • Power supply: PowerCON TRUE1 In/Out panel connectors

    • DMX: XLR 3-pole and 5-pole In/Out panel connectors

    Circuits protections

    Overvoltage and overtemperature circuits protection

    Operating temperature

    -10° / 40° C

    Physical

    • IP20
    • Weight: 14 Kg (30.9 lbs)
    • Finishing: Black

    Accessories included

    • 1 x PowerCON TRUE1 female connector (code 0520P066)

    • 1 x Omega bracket with “Fast Lock” (code 02K00467)

    • 1 x Soft frost filter (code 02SK0472)

    Accessories on request

    • Aliscaf clamp for tube diameter 50 mm (Max load 200 Kg) (code 0521A033)

    • Professional Quick trigger clamp (Max load 100 Kg) (code 0521A037)

    • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

    • Safety cable 3 x 600 mm - Max load 30 Kg (code 0521A010)

    • DTS firmware uploader dongle (code 03.LA.206)
