    Interne referentie: 03.LDB120S11FC
    Technische Fiche:

    12 x Osram Ostar stage N RGBW LEDs

    high-quality color mixing

    quickly interchangeable beam angles

    IP65 rated

    designed for both temporary and permanent installations

    built-in full-range PSU

    extremely compact and lightweight

    the best value for money

    Technical data

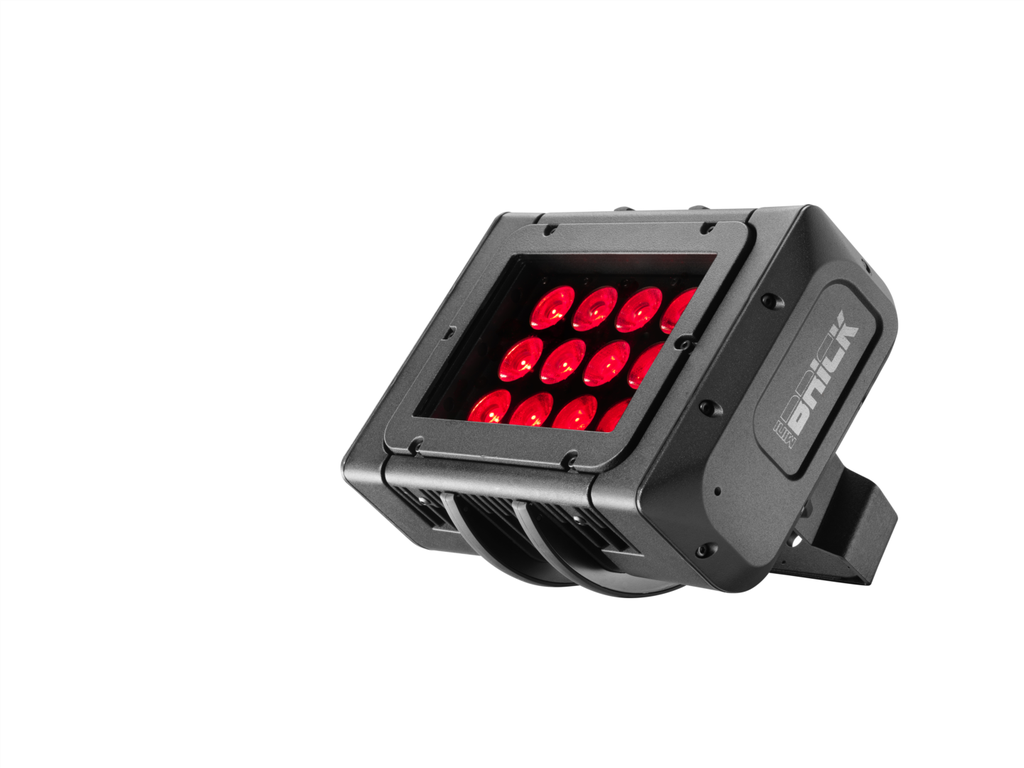

    The new MINI BRICK is a powerful, self-contained, IP65 LED Wash light in an ultra-compact case.
    MINI BRICK is suitable for various purposes, offering a range of projection angles quickly interchangeable (no tools required). MINI BRICK comes with an IP65 power cable plus 2 DMX cables with M / F XLR connectors, that make it perfect for temporary lighting applications, but also for safe long-lasting installations. Built with top quality components, MINI BRICK gives you the best value for money by efficient design and full production automation.
    MINI BRICK is available in ACC version - treatment that makes products suitable for climates with high humidity and saltiness levels, as well as for wide temperature ranges.

    Output

    • 12 OSTAR STAGE “N” RGBW or RGBA (HQS) LEDs
    • Lumen output (RGBW): 5,800 @ 700 mA
    • Lumen output (HQS): 5,448 @ 700 mA - CRI >90
    • LED lifespan: 50,000 hours (70% lumen output)

    Optical group

    • 8° projection angle
    • Range of quick-mounting holographic filters included: 20° / 40° / 60°x10° (no mounting tools required)
    • Uniform projection on surfaces

    Color generation

    • 16 million colors
    • Wide palette of pure uniform Whites with variable linear color temperature (2700K - 8000K)

    Control

    • DMX 512 / RDM
    • 4-digit 7-segment LED display + 4 soft keys
    • Internal operating system updatable via DTS
    dongle firmware uploader

    DMX

    • 10 DMX channels (Default)

    Power supply

    • Built-in full-range PSU 100-240Vac 50-60 Hz
    • Consumption: 200 W
    • Power Factor: PF >0.94

    Connections

    • Power supply: 3 x 1 sq mm cable (1.5 m length)
    • DMX In/Out: 0.7 m cable with XLR 5 pins IP65 connector


    Internal safety devices

    Overvoltage and overtemperature circuits protection

    Physical

    • IP65
    • Dimensions (LxHxD): 294.3x262.2x160.5 mm
    (11.59''x10.32''x6.32'')
    • Weight: 6.5 Kg (14.3 lbs)
    • Finishing: Black
    • Available on demand ACC version
    - treatment that guarantees effective protection against corrosion

    Accessories included

    • 1 x Holographic filter 20° (code 0506A043.D12)

    • 1 x Holographic filter 40° (code 0506A045.D12)

    • 1 x Holographic filter 60°x10° (code 0506A092.D12)

    • 1 x PowerCON TRUE1 female cable connector (code 0520P066)

    • 1 x PowerCON TRUE1 male cable connector (code 0520P067)

    • 1 x Display UV protection (code 03.LA.218)

    • 1 x Omega bracket with “Fast Lock” – already mounted on the unit (code 02K00467)

    Accessories on request

    • Lenses set Narrow 12° (code 03.LK.270.46)

    • Lenses set Medium 28° (code 03.LK.271.46)

    • Lenses set Wide 38° (code 03.LK.272.46)

    • Holographic filter 10° (code 0506A101.D12)

    • Holographic filter 60° (code 0506A103.D12)

    • Holographic filter 80° (code 0506A121.D12)

    • Holographic filter 30°x 60° (code 0506A133.D12)

    • Floor stand for ground installation (code 03.LA.213)

    • Barndoor black finishing (code 03.LA.211)

    • Visor black for Mini Brick (code 03.LA.230.11)

    • Visor black for Mini Brick ACC version (code 03.LA.230.14)

    • Permanent installation kit IP68: Power IN IP68 cable connector + 2 x DMX In/Out IP68 cable connectors (code 03.LA.214)

    • G60 “C” Clamp -Max load 50 Kg- (code 0521A004)

    • Aliscaf clamp for tube diameter 50 mm - max load 100 Kg (code 0521A008)

    • G-QUICK clamp professional - max. load 100 Kg (code 0521A037)

    • Safety cable - 0.3x60 cm - max. capacity load 60 Kg (code 0521A010)

    • DTS dongle firmware uploader (code 03.LA.206)

    Shipping

    • Packaging: Carton box
    • Box size: 37.5 x 26.5 x 35.5 cm (14.8’’ x 10.3’’ x 14’’)
    • Box weight: 8.7 Kg (19.1 lbs)
