Interne referentie: 03.LDB100S11FC
Technische fiche:

24 x Osram Ostar stage N RGBW LEDs

high-quality color mixing

quickly interchangeable beam angles

IP65 rated

designed for both temporary and permanent installations

built-in full-range PSU

very compact and lightweight

the best value for money

Technical data

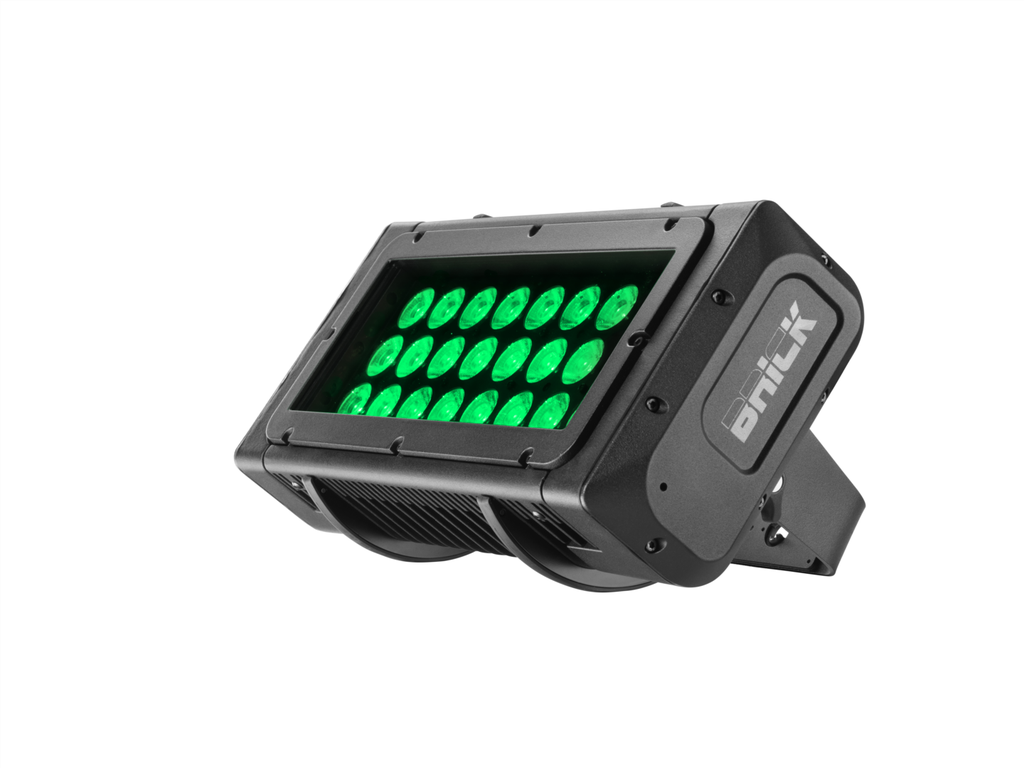

The new BRICK is a high power, very compact, self-contained, IP65 LED Wash light.
BRICK is suitable for various purposes, offering a range of projection angles quickly interchangeable (no tools required).
BRICK comes with an IP65 power cable plus 2 DMX cables with M / F XLR connectors, that make it perfect for temporary lighting applications, but also for safe long-lasting installationsBuilt with top quality components, BRICK gives you the best value for money by efficient design and full production automation.
BRICK is available in ACC version - treatment that makes products suitable for climates with high humidity and saltiness levels, as well as for wide temperature ranges.




Output

• 24 OSTAR STAGE “N” RGBW or RGBA (HQS) LEDs
• Lumen output (RGBW): 11,500 @ 700 mA
• Lumen output (HQS): 10,800@ 700 mA - CRI >90
• LED lifespan: 50,000 hours (70% lumen output)

Optical group

• 8° projection angle
• Range of quick-mounting holographic filters included: 20° / 40° / 60°x10° (no mounting tools required)
• Uniform projection on surfaces

Color generation

• 16 million colors
• Wide palette of pure uniform Whites with
variable linear color temperature (2700K - 8000K)

Control

• DMX 512 / RDM
• 4-digit 7-segment LED display + 4 soft keys
• Internal operating system updatable via DTS dongle firmware uploader

DMX

• 10 DMX channels (Default)

Power supply

• Built-in full-range PSU 100-240Vac 50-60 Hz
• Consumption: 400 W
• Power Factor: PF >0.93

Connections

• Power supply: 3 x 1 sq mm cable (1.5 m length)
• DMX In/Out: 0.7 m cable with XLR 5 pins IP65
connector


Internal safety devices

Overvoltage and overtemperature
circuits protection

Physical

• IP65
• Dimensions (LxHxD): 438.7x262.2x160.5 mm
(17.27''x10.32''x6.32'')
• Weight: 10 Kg (22 lbs)
• Finishing: Black
• Available on demand ACC version:
- treatment that guarantees effective protection against corrosion



Accessories included

• 1 x Holographic filter 20° (code 0506A043.D11)

• 1 x Holographic filter 40° (code 0506A045.D11)

• 1 x Holographic filter 60°x10° (code 0506A092.D11)

• 1 x PowerCON TRUE1 female cable connector (code 0520P066)

• 1 x PowerCON TRUE1 male cable connector (code 0520P067)

• 1 x Display UV protection (code 03.LA.218)

• 1 x Omega bracket with “Fast Lock” – already mounted on the unit (code 02K00467)

Accessories on request

• Lenses set Narrow 12° (code 03.LK.274.46)

• Lenses set Medium 28° (code 03.LK.275.46)

• Lenses set Wide 38° (code 03.LK.276.46)

• Holographic filter 10° (code 0506A101.D11)

• Holographic filter 60° (code 0506A103.D11)

• Holographic filter 80° (code 0506A121.D11)

• Holographic filter 30°x 60° (code 0506A133.D11)

• Floor stand for ground installation (code 03.LA.213)

• Barndoor black finishing (code 03.LA.210)

• Visor black for Brick (code 03.LA.229.11)

• Visor black for Brick ACC version (code 03.LA.229.14)

• Permanent installation kit IP68: Power IN IP68 cable connector + 2 x DMX In/Out IP68 cable connectors (code 03.LA.214)

• G60 “C” Clamp - max load 50 Kg (code 0521A004)

• Aliscaf clamp for tube diameter 50 mm - max. load 200 Kg (code 0521A033)

• G-QUICK clamp professional - max. load 100 Kg (code 0521A037)

• Safety cable - 0.3x60 cm - max. capacity load 60 Kg (code 0521A038)

• DTS dongle firmware uploader (code 03.LA.206)

Shipping

• Packaging: Carton box
• Box size: 51 x 26.3 x 35 cm (20’’ x 10.4’’ x 13.8’’)
• Box weight: 11.4 Kg (25.1 lbs)
