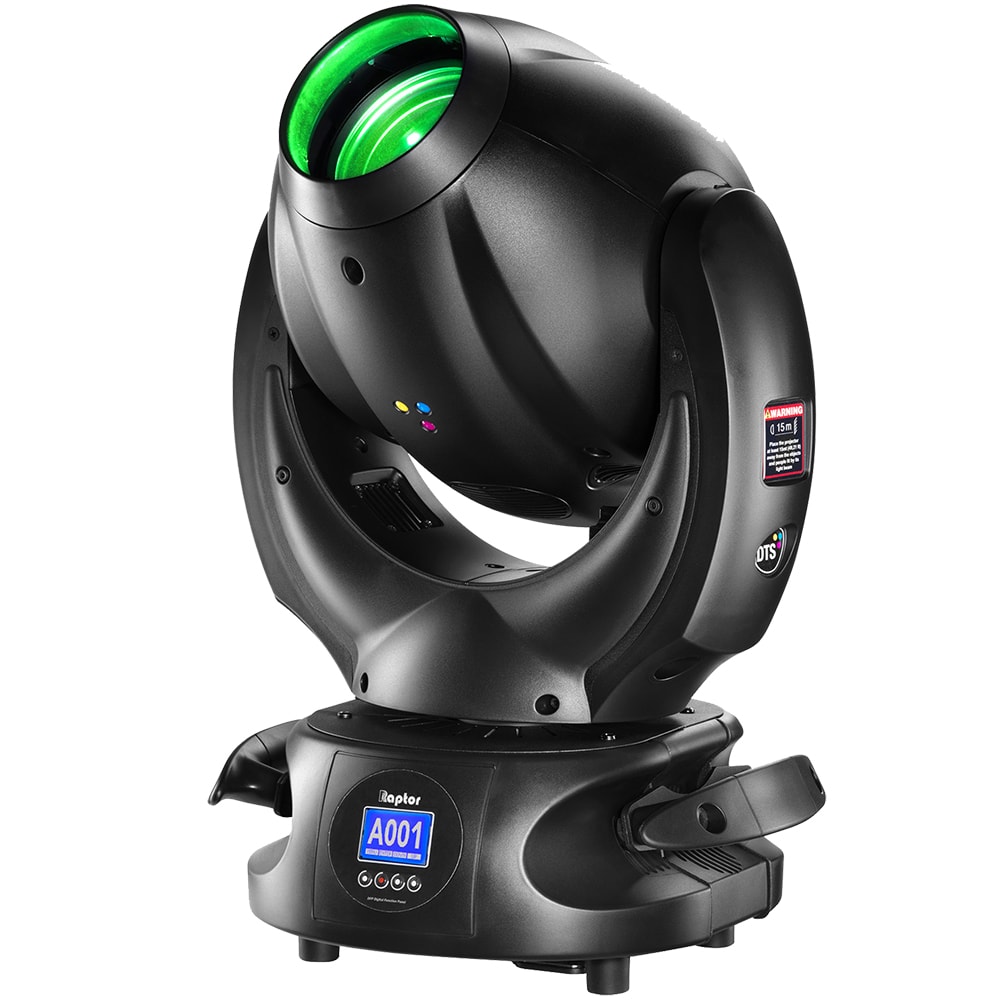

DTS - RAPTOR

This product is no longer available.

Prices excluding VAT
Terms & conditions

Internal Reference: 03.MB005.EB.LFP

beam opening 3.4°

unique 8-facet prism

17 fixed gobos

smooth filter and frost filter

silent operation

color wheel (17 filters)

150,000 lux @ 15 m

Technical data

RAPTOR is the brightest and most compact BEAM moving head on the market. Thanks to its exclusive ‘FPR’ system and its unique 8-facet prism, RAPTOR is extremely versatile in any event as an effect projector or as a searchlight. RAPTOR is equipped with an HRI 330 W LAMP which delivers 16,500 Lumens.

Output

• Lamp: Osram Sirius HRI 330 W (16,500 Lumens)
- Color temperature: 7500 K
- CRI: 80
- Average lamp life: 1,500 hours

Optical group

• Beam opening: 3.4°

• 156,800 Lux / 15 m

• 16-bit motorized linear focus

• Linear dimmer / shutter / ultra-fast strobe

Color generation

• 17-color wheel with linear selection for perfect 2-color beams

Dynamic effects

• 17-gobo wheel
• 8-facet rotating prism

Filters

• Smooth filter (eliminates the hot spot, evenly diffusing luminosity)

• Frost filter

Control

• LCD graphic display (control / management / monitoring of the main parameters) + 4 soft-keys

• Controlled via DMX 512 and RDM standard digital communication protocols

• Firmware updatable via DTS firmware uploader dongle

DMX

• 18 DMX channels (default)
• 20 DMX channels

Pan & Tilt

• ‘FPR’ system (DTS patent)

• Pan: limitless rotation, in both directions

• Tilt 270°: 1.2 s

• Tri-phase stepper motor technology for ultrafast silent movements

• 16-bit resolution

• Selectable speed ranges

Power supply

• Wide-range 100-240Vac 50-60 Hz

• Power consumption: 450 W with PFC

• Power Factor: PF >0.90

Connections

• DMX: XLR 3-pole In/Out and 5-pole In/Out panel connectors

• Power supply: PowerCON In/Out panel connectors

Circuits protections

Overvoltage and overtemperature circuit protection

Operating temperature

-10° / 40° C

Physical

• IP20
• Weight: 17 Kg (37.5 lbs)
• Finishing: Black

Accessories included

• 1 x PowerCON female cable connector (code 0520P014)

• 1 x XLR 5 Pins male cable connector (code 0508B148)

• 1 x XLR 5 Pins female cable connector (code 0508B147)

• 2 x Omega Bracket with “Fast Lock” connection 1/4 turn (code 02K00549)

Accessories on request

• Lamp Osram Sirius HRI 330 W (code 0505S037)

• Flightcase for 4 units (code 0521C059.1)

• Aliscaf clamp for tube diameter 48-51 mm - max. load. 200 Kg (code 0521A033)

• G-QUICK clamp Professional -max. load 100 Kg (code 0521A037)

• Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

• Safety cable 3 x 600 mm - Max load 30 Kg (code 0521A010)

• DTS firmware uploader dongle (code 03.LA.206)
