Mirage 304K

    This combination does not exist.


    Prices excluding VAT
    Terms & conditions

    Internal Reference: CHR-144-014106-02
    Technische Fiche:

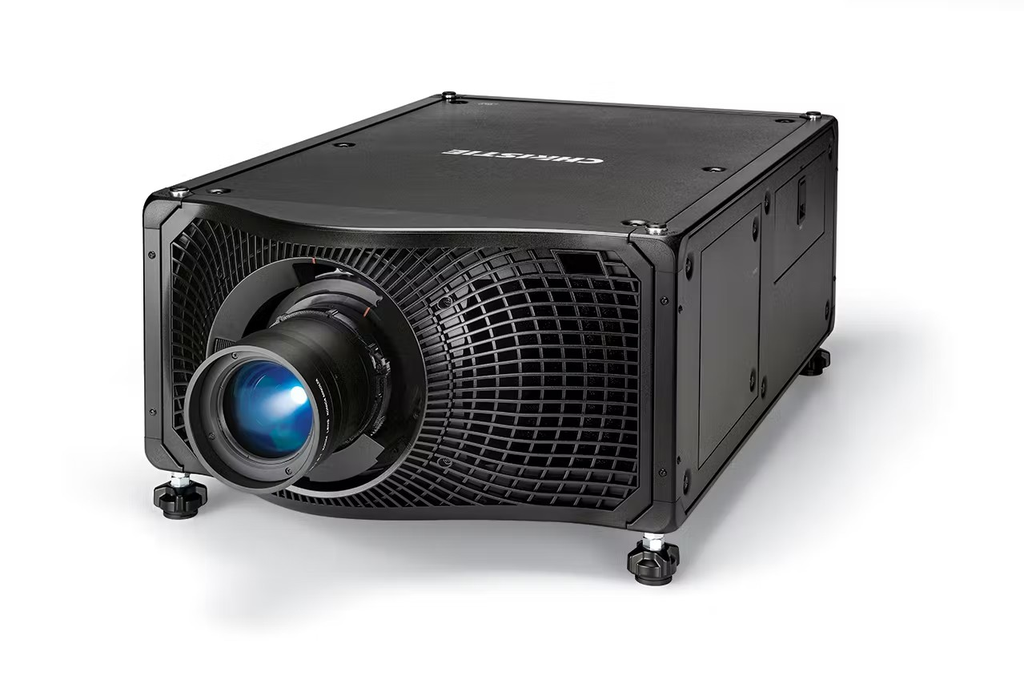

    With its compact form factor, light weight, powerful processing and host of user-friendly features such as built-in warping and blending, near field communication monitoring and an at-a-glance preview screen, the Christie® Mirage 304K represents a new paradigm to realize the brightest, most immersive 3D visualizations imaginable.

    Based-on the industry’s only 4K, true 120Hz capable projection system and featuring Christie’s proprietary TruLife® electronics, the Christie Mirage 304K produces incredible image and color reproduction for ultra-bright immersive 3D environments. Engineered for omnidirectional deployment, the Mirage 304K can be mounted and operated in any orientation for increased design and installation flexibility.

    Key features

    • Christie TruLife processing at true 120Hz ensures stunning color reproduction and image quality
    • Mercury lamps for more than double the life of Xenon illumination
    • Omnidirectional deployment capabilities and a weight of only 155lbs. for increased design and installation flexibility
    • Built-in warp and blend functionality with Christie Twist
    • Compatible with the Christie Mystique automated camera-based alignment software solution
    • Supports Christie Guardian invisible, real-time automatic blended-image ​correction even when content is playing
    • Preview screen for at-a-glance status updates
    • Integrated near field communication (NFC) for lamp information tracking
    • Full bandwidth point-to-point fiber capabilities supporting up to 40 Gbit/s on a single cable with Christie Link. Link packages available with the following products:

    Contact your Christie sales representative for more information. Christie partners, see details on your partner portal.

    Center lumens


    ANSI lumens


    Contrast ratio


    Display type

    3DLP 1.38" DMD


    4K (4096 x 2160)

    Illumination type

    6X 450W NSH Mercury illumination

    Illumination performance (hrs)

    1500 hours to 70% initial brightness


    Fully omnidirectional

    Image processing

    Christie TruLife™ electronics

    Supported frame rates


    Pixel clock rate



    • 4 x Twin DisplayPort input card
    • HDBaseT


    • Keypad
    • RS232 in
    • Ethernet (10/100) RJ45

    Lens mount

    • - Tool-free lens insertion system
    • - Boresight adjustable
    • - Motorized horizontal and vertical lens offset
    • - Motorized zoom and focus adjustment

    Lens options

    • Fixed:
    • 0.72:1 (no offset)
    • 0.9:1 (Offset: V: ±45%, H: ±18%)
    • Zoom:
    • 1.13-1.31:1 (Offset: V: ±60%, H: 23%)
    • 1.31-1.63:1 (Offset: V: ±82%, H: 28%)
    • 1.63-2.17:1 (Offset: V: ±86%, H: 32%)
    • 1.98-2.71:1 (Offset: V: ±13%, H: 4%)
    • 2.71-3.89:1 (Offset: V: ±43%, H: 14%)
    • 3.89-5.43:1 (Offset: V: ±86%, H: 22%)
    • 5.43:1 -7.69:1 (Offset: V: ±56%, H: 19%)


    • 200-240V
    • 19A

    Dimensions (L x W x H)

    • 37.75 x 23.5 x 12"
    • 959 x 597 x 305 mm


    • 155lbs

    Operating environment

    • Temperature: 5 to 40°C (41 to 104°F)
    • Humidity: 10 to 80%, non-condensing

    Limited warranty

    • 3 years
