Boxer 4K30

https://www.avl.be/web/image/product.template/1408/image_1920?unique=c916309

This product is no longer available.

Prices excluding VAT
Terms & conditions


Internal Reference: CHR-144-012104-02
Technische Fiche:

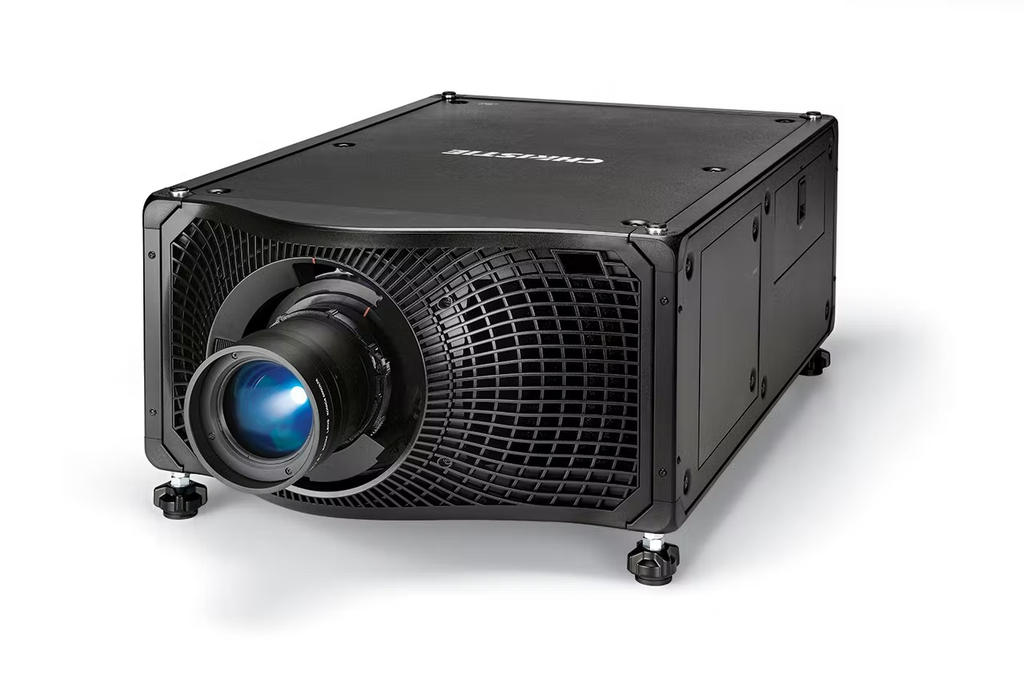

Christie® Boxer 4K30 is a 30,000 lumen, 4K resolution, 3DLP® projector designed for high impact live events. With intelligent design and feedback, Christie Boxer 4K30 is the most profit-focused professional projector in the market that will help you deliver an unprecedented user experience time and again. The Boxer 4K30 ensures a low cost of ownership, increases your return on investment, and future proofs your fleet – in the smallest, smartest and most efficient 30K projector available.

Featuring six-lamp Mercury illumination, the Christie Boxer 4K30 provides 1,500 hours of lamp-life to 70% brightness. With the added benefits of single-phase power, built-in warping and blending, omnidirectional installation options, a full-range of connectivity and Christie TruLife™ electronics, the Christie Boxer 4K30 packs a punch in creating powerful and inspiring visual experiences.

Key features

  • Christie TruLife processing ensures stunning color reproduction and image quality
  • Mercury lamps for more than double the life of Xenon illumination
  • Omnidirectional deployment capabilities
  • Built-in warp and blend functionality
  • Compatible with the Christie Mystique automated camera-based alignment software solution
  • ​Supports Christie Guardian invisible, real-time automatic blended-image correction even when content is playing
  • ​Preview screen for at-a-glance status updates
  • Integrated near field communication (NFC) for lamp information tracking
  • Weighs only 160lbs
  • Full bandwidth point-to-point fiber capabilities supporting up to 40 Gbit/s on a single cable with Christie Link. Link packages available with the following products:
    • QSP+ Fiber Optic Module (2 pack)
    • High bandwidth multi-input card (HBMIC)
    • Rack mounting shelf
  • Terra SDVoE input board for direct interfacing of up to 4K AV content and control over 10G Ethernet for highly flexible, scalable and efficient AV system integration.

We’re here to support your investment

Backed by Christie's industry-leading warrantiesservice and support, you can feel confident investing in the Christie Boxer 4K30. If you have any questions, or if you’d like to speak to a Christie sales representative, please contact us.

​​

ISO lumens

32,500


Center lumens

30,000


ANSI lumens

29,000


Contrast ratio

2000:1

Display type

3DLP 1.38" DMD

Resolution

4K (4096 x 2160)

Illumination type

6x 450W NSH

Illumination performance (hrs)

1500 hours to 70% initial brightness

Orientation

Omnidirectional

Image processing

Christie TruLife electronics

Input card slots

  • 1 x High bandwidth slot (slot 0)
  • 4 x Standard input slot

Inputs (Standard)

  • 1 x HDBaseT
  • 1 x High bandwidth multi-input card (HBMIC)
  • Installed in high bandwidth slot (slot 0):
  • 2 x 12G-SDI
  • 1 x HDMI 2.0
  • 1 x DisplayPort 1.2
  • 1 x Christie Link Fiber (QSFP+)

Networking

  • Keypad
  • RS232 in
  • Ethernet (10/100) RJ45

Lens mount

  • - Tool-free lens insertion system
  • - Boresight adjustable
  • - Motorized horizontal and vertical lens offset
  • - Motorized zoom and focus adjustment

Lens options

  • Fixed:
  • 0.72:1 (no offset)
  • 0.9:1 (Offset: V: ±45%, H: ±18%)
  • Zoom:
  • 1.13-1.31:1 (Offset: V: ±60%, H: 23%)
  • 1.31-1.63:1 (Offset: V: ±82%, H: 28%)
  • 1.63-2.17:1 (Offset: V: ±86%, H: 32%)
  • 1.98-2.71:1 (Offset: V: ±13%, H: 4%)
  • 2.71-3.89:1 (Offset: V: ±43%, H: 14%)
  • 3.89-5.43:1 (Offset: V: ±86%, H: 22%)
  • 4.96:1-7.69:1 (Offset: V: ±56%, H: 19%)

Power

  • 200-240V
  • 19A

Dimensions (L x W x H)

  • 37.75 x 23.5 x 12"
  • 959 x 597 x 305 mm

Weight

  • ~160lbs

Operating environment

  • Temperature: 5 to 40°C (41 to 104°F)
  • Humidity: 10 to 80%, non-condensing

Limited warranty

  • 3 years
