Interne referentie: STA-DSP8-DIN

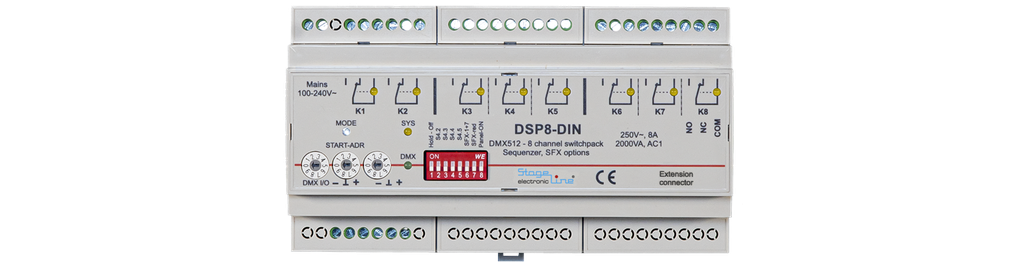

The DSP8-DIN is the housing version of the DSP8-pcb for direct DIN-Rail mounting.

Each relay channel has a SPDT contact and is capable to switch 230V~/ 8A continuous current or 30A inrush current.

The current version now has all controls and displays on the front panel

The DSP8-DIN includes several functions for opening and closing motorized curtains and blinds by button events or “one fader” control, mutual locking of relays, fader to 4 relay switch and a 8 channel sequencer expandable up to 80 channels.

As an option an extern user panel is available, with 8 switches SPDT for manual ON, OFF or DMX use, LEDs for switching state and the three rotary code switches.


Summary of features:

  • 8 relay channels with SPDT contact for 250V~/ 8A
  • All controls and indicators on the front panel
  • DIN-Rail mounting
  • Functions for curtains and blinds
  • Sequencer, expandable up to 80 channels
  • Elevator clamps for line voltage and loads
  • colored cage clamps for DMX512 In- & Output
  • Dimensions (LxWxH): 160 x 90 x 58 mm
  • Weight: 452g
