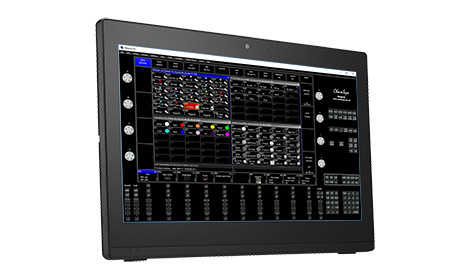

Shuttle Touch PC P92U

https://audiovisuallighting.odoo.com/web/image/product.template/1679/image_1920?unique=6353a84

Ready installed with ChamSys MagicQ. (Celeron 5205U, 4GB Ram)

Deze combinatie bestaat niet.

Neem contant met ons op

Prijzen exclusief btw
Algemene voorwaarden

Interne referentie: SHU-P92U
Technische fiche:

Touch PC - Ready installed for MagicQ

The ideal PC for running MagicQ PC. Ready installed with ChamSys MagicQ.
Attention can not be used for MagicVis and MagicHD!

All-in-One PC

With this all-in-one we expand the product range of All in- One PCs and introduces its largest model so far. It is the first one in a 19.5 inch format and with a capacitive touchscreen.

An Intel Ultra-Low-Voltage (ULV) processor makes for high computing power while it keeps energy consumption at a low level. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust -protected and protected from splashing of water.

Feature Highlights

All-in-One Design

  • XPC all-in-one with touchscreen
  • Dimensions: 487 x 321 x 44 mm (WHD)
  • 100 mm VESA mount capable
  • IP54 compliant front panel
  • Approved for 24/7 nonstop operation
Display & Graphics
  • 49.5 cm (19.5”) LC Display, 1600 x 900 pixel
  • Capacitive 10-point multi -touchscreen
  • Integrated Intel HD 610 graphics
  • HDMI 1.4 + D-Sub/VGA Video output
CPU & Cooling
  • Intel Celeron 5205U, 1.9 GHz, 15W TDP
  • Fanless heatpipe cooling system
Storage
  • Supports max. 2x32 GB DDR4-2400/2666
  • Supports one 2.5” SATA hard disk / SSD
  • Supports one M.2-2280 SSD (SATA / PCIe)
  • Supports internal USB s􀆟 ck (USB 2.0, type A)
Operating System
  • Operating system Windows 10 64-b
Connectivity
  • HDMI 1.4, D-Sub/VGA- 2x USB 3.0, 4x USB 2.0, internal: 1x USB 2.0
  • Microphone input, head phone output
  • Gigabit LAN, Wireless LAN Realtek
  • RTL8821CE-CG
Built-in
  • SD card reader- 2.0 Megapixel HD webcam
  •  2x 2W speakers
  • Electret Condenser Microphone
Power Supply
  • External fanless power adapter, 65W / 19V
  • DC-in supports 12 V and 19 V voltage
Warranty
  • 24 months Bring-in Service
