Interne referentie: DTS-03.LA.228

DRIVENET is a line of digital power supplies and controllers for large networks of LED projectors. Designed to supply, control and monitor LED networks centrally and remotely, DRIVENET units offer total flexibility and absolute reliability. With a range of 10 different models, DRIVENET provides effective solutions tailored to the most complex and demanding lighting installations, whether indoors, outdoors or underwater.

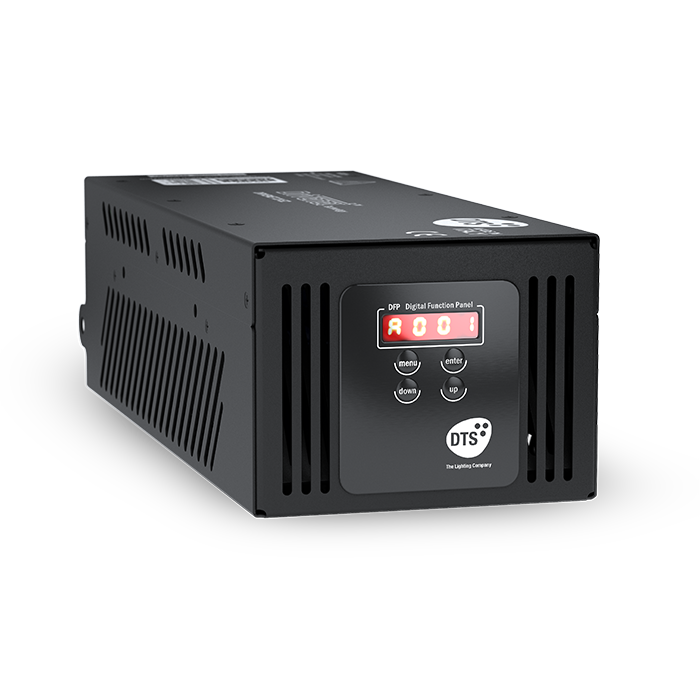

Drivenet 28 EZ is a 8-channel power supply wall or truss mountable, 100-240 Vac 50-60 Hz. The unit is the compact and it can control most of the DTS LED projectors or any other current-driven LED projector matching the unit output specifications. Drivenet 28 EZ is fitted without fan to assure the minimum noise to respect the most demanding applications where silent operation is required.

Output

• Input voltage/frequency range: 100-240Vac 50-60 Hz

• Power Factor: PF >0.94

• Output channels: 8 (4 channels x 2 groups)

• Output voltage: 48 Vdc

• Output current: 700mA max (per channel)

• Max power:
_ 280W @ 180-240Vac 50-60 Hz
_ 200W @ 90-130Vac 50-60 Hz

Distance between Drivenet and projectors

• Max 100 m*

* Max projectors distance for FOS 100 and HELIOS R fixtrures must be 50 m
FOS 100

Connections

• Output: Screw terminals connectors

• Mains: PowerCON male panel connector

• DMX: XLR 5-pole In/Out panel connectors

• DALi In/Out: Available


Control

• Protocols: RDM / DMX 512 and DALi
• 4-digit 7-segment LED display
• Internal operating system updatable via DTS dongle firmware uploader

Physical

• < 2-unit rack
• Weigth: 2 Kg (4.4 lbs)

Accessories included

• 8 pins screw terminals connector (already plugged on the unit) (code 0508B084) *Quantity is based on the of the outputs number

• 1 x XLR 5 pins female cable connector (code 0508B065)

• 1 x XLR 5 pins male cable connector (code 0508B066)

• 1 x PowerCON female cable connector (code 0520P014)
