MagicQ Mini Connect

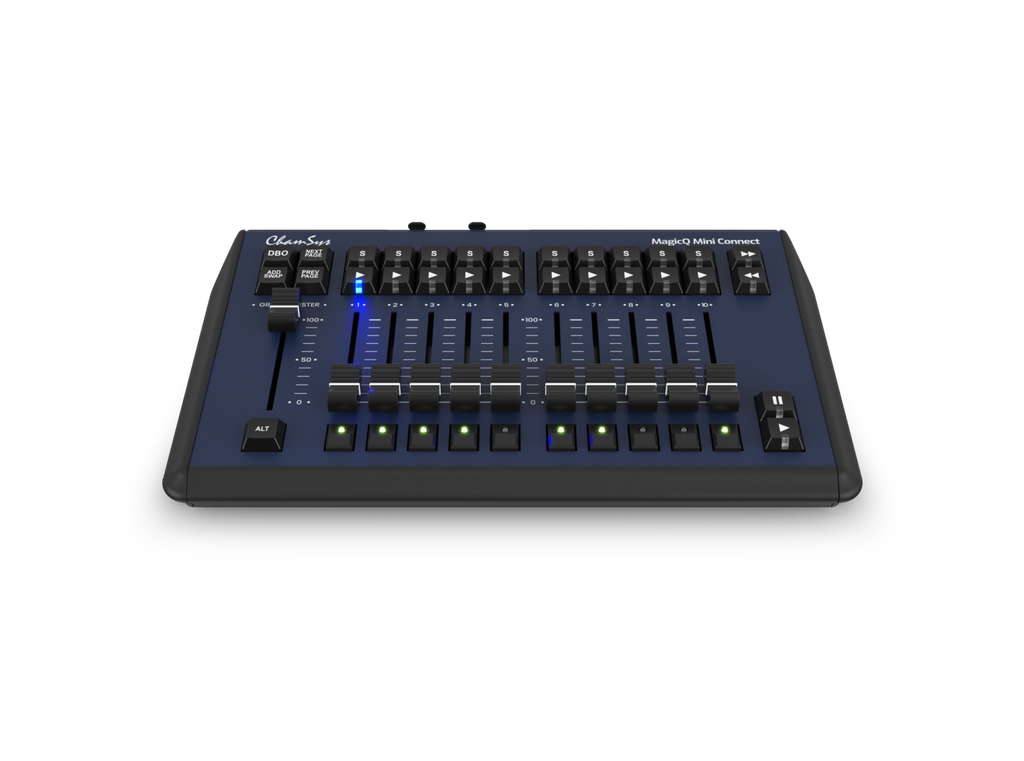

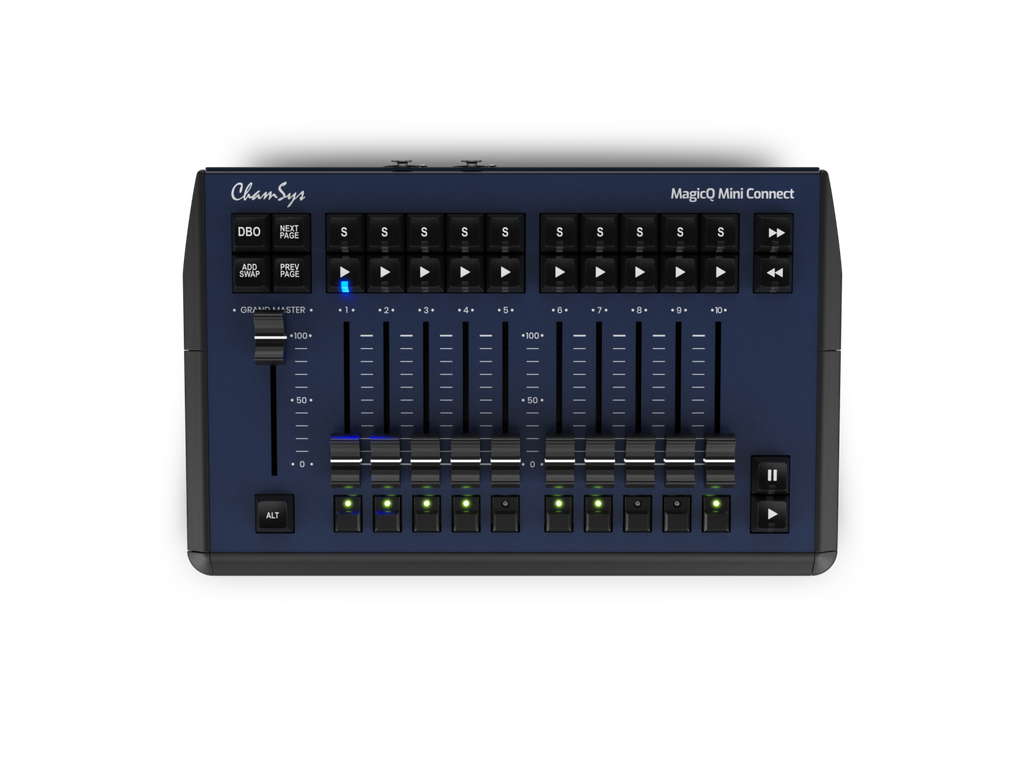

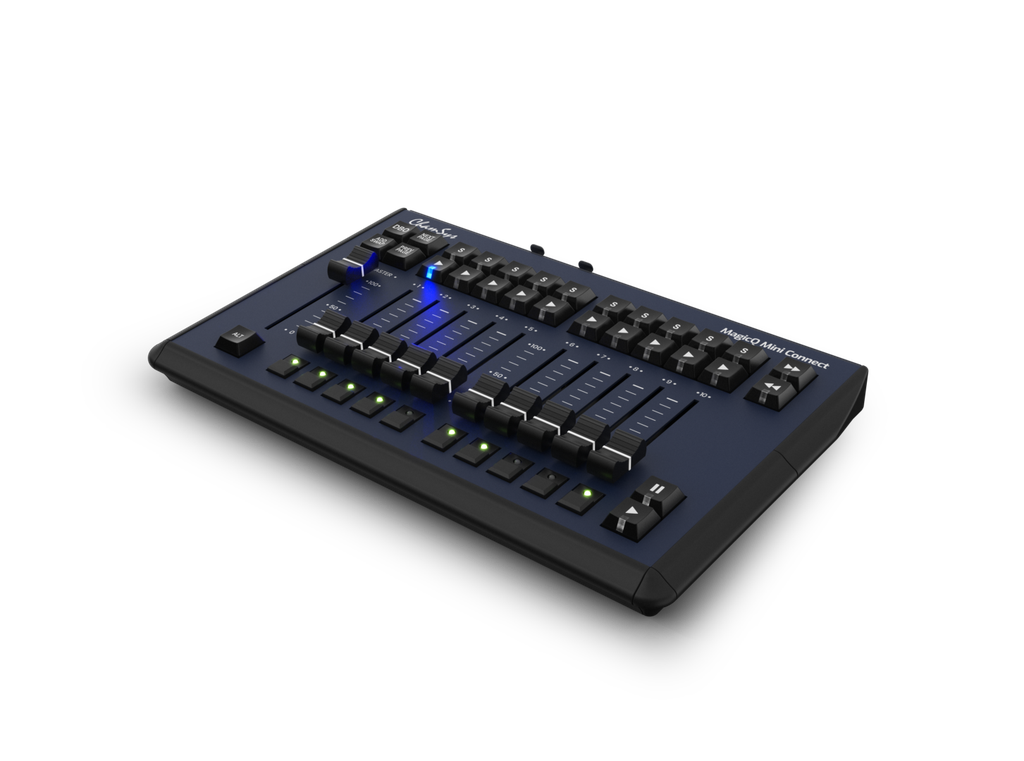

The Compact Mini Connect is a highly portable USB-powered control surface that couples physical playback with the power of MagicQ software.

Attached to a Windows, Linux or OSX system running MagicQ software, the Mini Connect turns your computer into a powerful lighting, media and LED control center. Illuminated live show controls include 10 playback faders, Flash, Go and Select buttons, and a dedicated Grand Master fader.

The Mini Connect is ideal for theatres, venues, clubs and installations. With 1 direct DMX512 output and an onboard network port that sends up to 64 universes of ArtNet and sACN, the Mini Connect is also capable of commanding large shows as well as offering a cost-effective backup solution for users of larger MagicQ consoles.



  • 10 Playbacks
  • USB Powered
  • Connects to Free MagicQ Software - PC, Mac or Linux
  • 1 Direct DMX Output supporting RDM
  • Kensington Lock Slot
  • Includes Lightweight Durable Case
  • 64 Universes via Artnet/sACN

MagicQ Software

MagicQ software offers powerful lighting control with loads of features that lighting designers have some to rely on, such as full lighting visualization, pixel mapping, and HD media playback on up to 8 different layers, all integrated smoothly to streamline workflows, save time, and shorten learning curve.

Hardware Specifications:

  • Fader Playbacks: 10
  • Direct DMX Outputs: 1

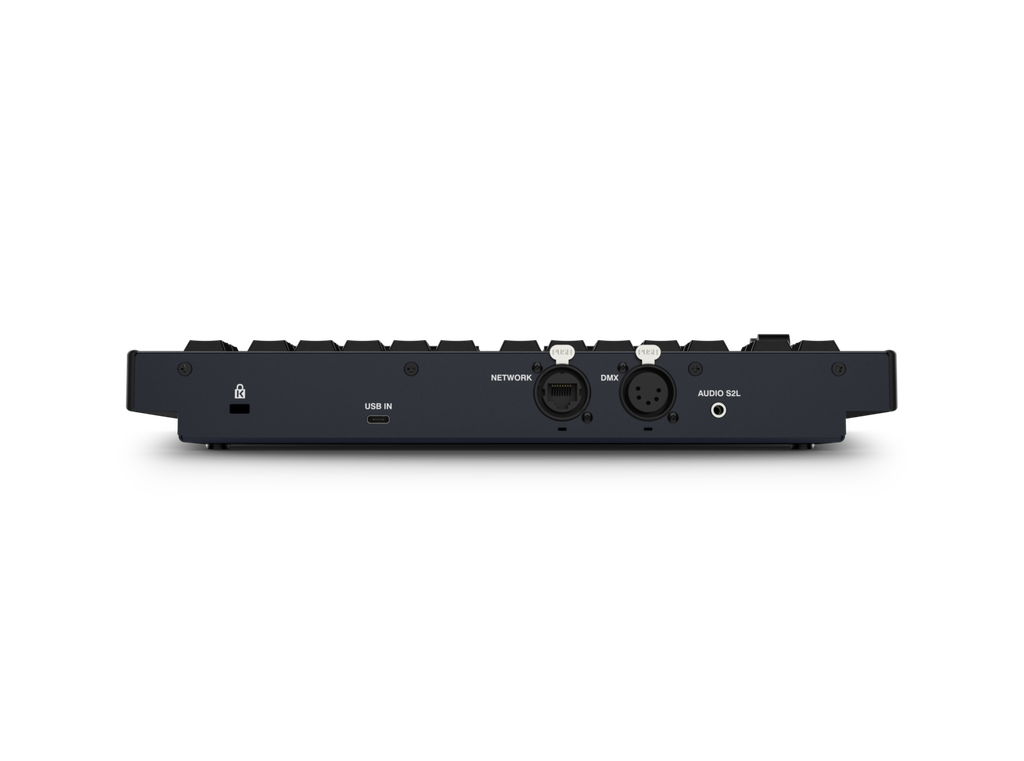

  • Network Ports: 1
  • Kensington Security Lock Fixing: 1
  • USB Connector: Yes - USB-C
  • USB 3 powered: Yes (Must be connected to a USB 3.0 or higher port)
  • Lightweight Durable Case Included

Included Accessories:

  • USB A-C Cable: Yes
  • Lightweight Durable Case: Yes

Boxed Weights and Dimensions:

  • Width: TBC
  • Depth: TBC
  • Height: TBC
  • Weight: TBC

Console Weights and Dimensions:

  • Width: 327mm
  • Depth: 204mm
  • Height: 45mm
  • Weight: 1.85kg

Software Specifications:

  • Universes: 64
  • Max Number of DMX Channels: 32768
  • Max Number of Fixtures Supported: 32768
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (Each different content)
  • Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux
