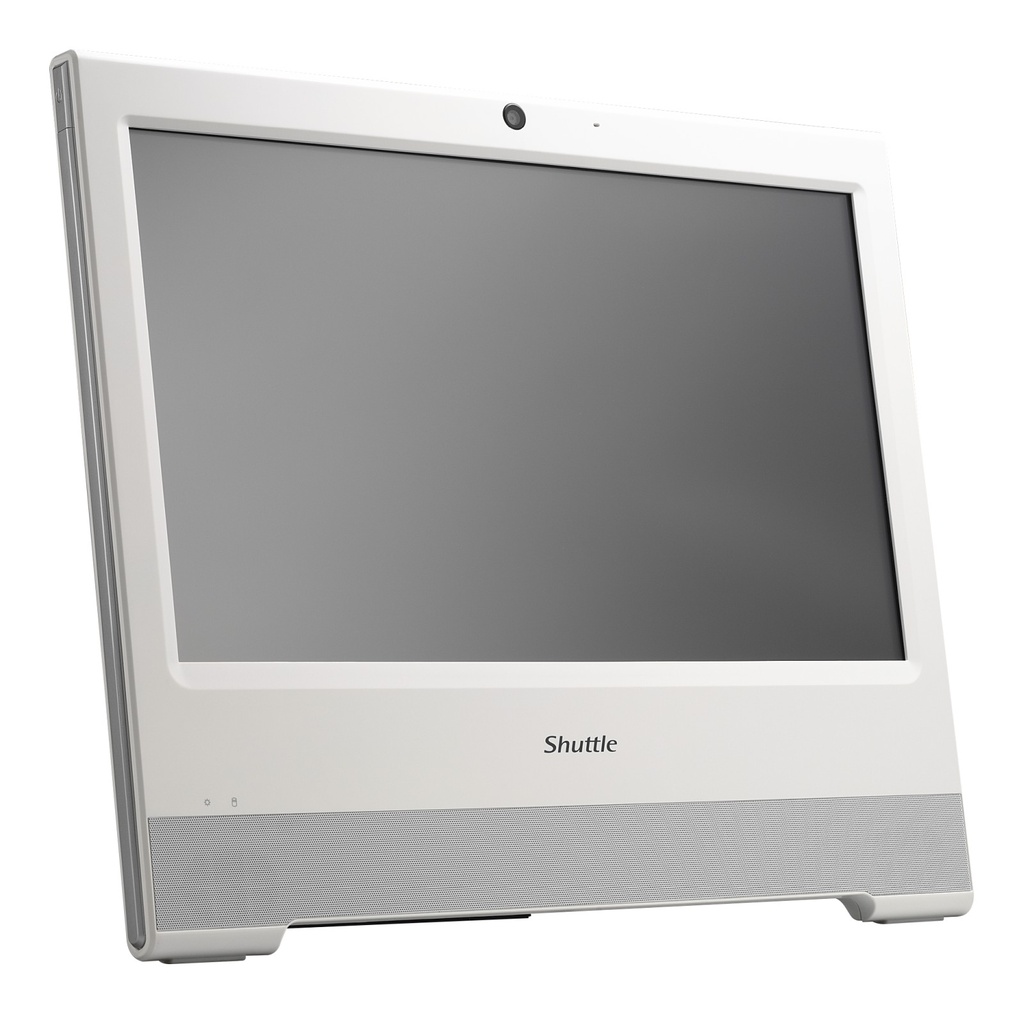

Shuttle Touch PC X5080T

https://www.avl.be/web/image/product.template/2641/image_1920?unique=107eb6e

Ready installed with ChamSys MagicQ. At this moment only available in white color!

    Deze combinatie bestaat niet.

    Aanmelden

    Prijzen exclusief btw
    Algemene voorwaarden

    Interne referentie: SHU-X5080
    Technische Fiche:

    Touch PC - Ready installed for MagicQ

    The ideal PC for running MagicQ PC. Ready installed with ChamSys MagicQ.
    Attention can not be used for MagicVis and MagicHD!

    All-in-One PC

    Feature Highlights15.6” ALL-IN-ONE PC FOR POS, POI AND KIOSK APPLICATIONS The Shuttle XPC all-in-one X50V8 is the latest addition to the X50 Series and is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for  24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

    COMMON FEATURES

    • IP54 compliant front panel
    • Dimensions: 391 x 327 x 42 mm (WHD)
    • Supports 24/7 Nonstop Operation
    • 100 mm VESA mount capable
    • Operating temperature: 0~40 °C
    Display & Graphics
    • 39.6 cm (15.6") LC Display, 1366 x 768 pixel
    • Resistive touchscreen
    • Integrated Intel UHD graphics
    • HDMI 1.4 & VGA
    CPU & Cooling
    • Intel Celeron 5205U, Dual Core, clock rate: 1.9 GHz
    • Fanless heatpipe cooling system
    Storage
    • Supports max. 2x 32 GB DDR4-2400 SO-DIMM
    • Supports one M.2-2280 SSD (SATA or PCIe X4/ NVMe)
    • Supports one 2.5" SATA hard disk /SSD
    • Supports internal USB stick (USB 2.0, type A)
    Operating System
    • Operating system Windows 10 64-b

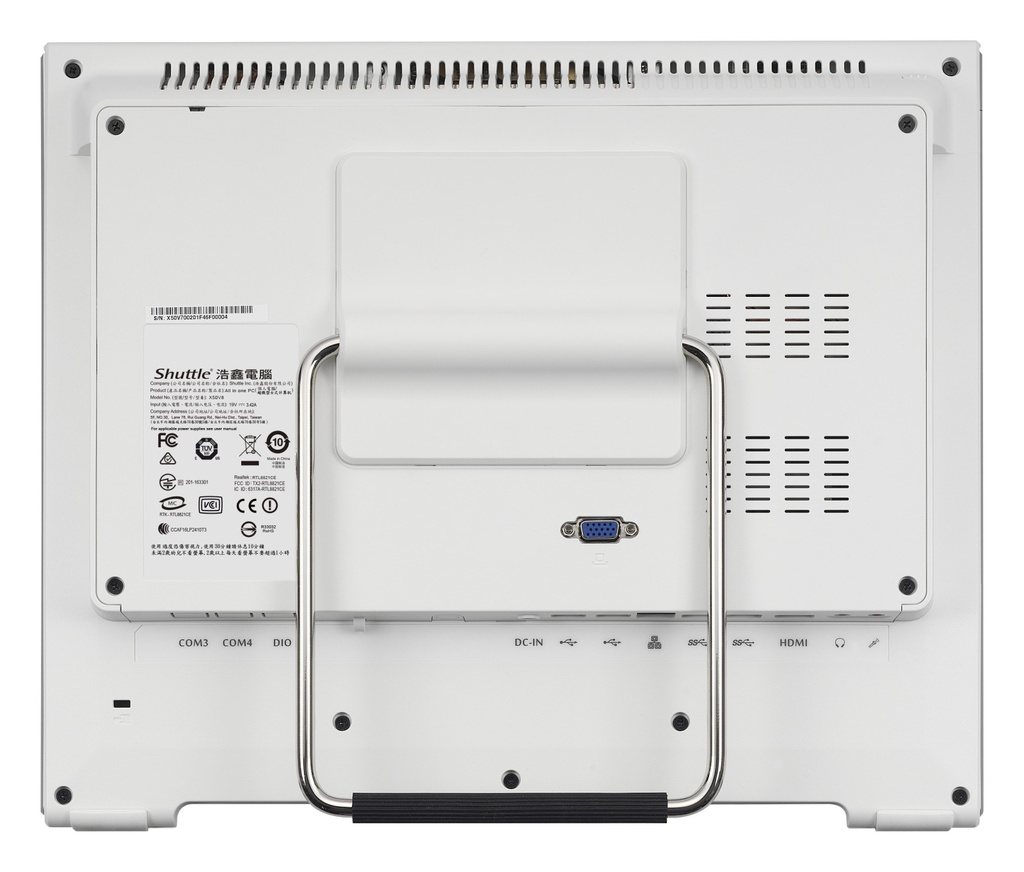

    Connectivity
    • HDMI 1.4
    • D-Sub/VGA
    • 4x USB 3.2 Gen 1
    • 2x USB 2.0
    • internal: 1xUSB 2.0 (Type A)
    • 2x Audio (Mic & headphones)
    • Gigabit LAN (Intel)
    Built-in
    • SD card reader
    • 2.0 Megapixel HD webcam
    • 2x 2W speakers
    • Electret Condenser Microphone
    • Wi-Fi 5 Wireless Network with two Antennas (supports WLAN 802.11ac and Bluetooth 4.2)
    Power Supply
    • External fanless power adapter, 65W / 19V
    • DC-in supports 12 V and 19 V voltage
    Warranty
    • 24 months Bring-in Service
