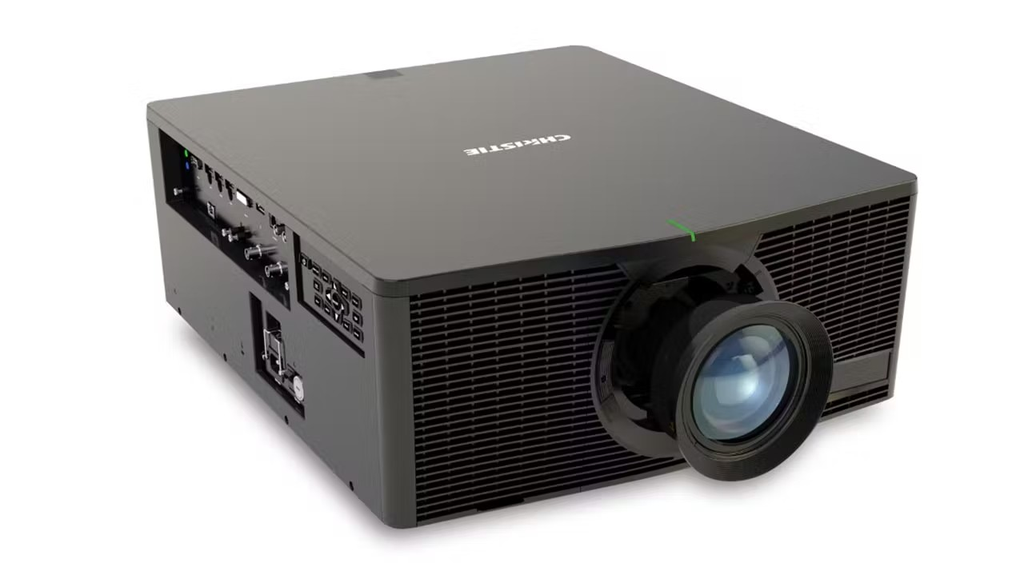

4K7-HS - (Black)

    Deze combinatie bestaat niet.

    Aanmelden

    Interne referentie: CHR-140-068105-02
    Technische Fiche:

    The Christie® 4K7-HS combines the cost-savings of 1DLP® technology, the long illumination performance of laser and the image quality of 4K UHD resolution. The result is a high-performance 7,000 lumen, 4K UHD, HDR10 compatible laser projector that won’t blow your budget.

    What makes the 4K7-HS outperform the competition is the enhanced color performance thanks to the patented Christie BoldColor Technology. Colors appear natural and with the added fidelity of 4K UHD resolution, visuals are lifelike and clearer than ever.

    The 4K7-HS features built-in Christie Twist™ for fast and easy multi-projector setups. For even more flexibility, the 4K7-HS has two expandable option card slots which can accommodate cards such as the Christie Terra input card; 3G SDI input cards; and HDBaseT input cards. Plus, with HDMI 2.0, Display Port 1.2 Inputs, you can feed the projector 4K60Hz content over a single HDMI or Display Port cable for simplified setup and cable routing.

    Key features

    • 1DLP 4K UHD resolution – Benefit from high fidelity visuals at an affordable price
    • Christie BoldColor Technology - Laser ​illumination combined with Christie BoldColor Technology for the highest quality images, life-like visuals and reliability
    • Long-life laser light source – Up to 20,000 hours to 50% brightness of virtually maintenance-free operation
    • Compact and light – Small form factor and weighs less than 80 lbs. for easy shipping, lifting and installation
    • Blend and warp – Compatible with Christie Twist​ for quicker and easier multi-projector setups
    • Fully omnidirectional – Unrestricted design and installation flexibility
    • Expandable – Customize the performance and flexibility with two expandable option card slots
    • Comprehensive connectivity – Full connectivity for popular formats including 3GSDI (optional) for added redundancies
    • Christie Virtual Remote 1DLP – Gives you wireless control from any smartphone or tablet
    • Advanced electronics – Firmware updates take only minutes
    • Medical Training Capable - DICOM simulation mode for advanced grayscale image reproduction, perfect for analyzing x-rays and medical scans for training purposes
    • TAA Compliant

    ISO lumens

    7,600

    ANSI lumens

    7,000


    Color wheel

    4 segment (RGBY) - 2X speed


    Contrast ratio

    Full On/Off (Christie Real Black enabled): 2,000,000:1 , Full On/Off (Christie Real Black disabled): 1,100:1

    Dynamic contrast

    5,000:1

    Display type

    1 x 0.66" DMD

    Resolution

    4K UHD (3840 x 2160)

    Illumination type

    Laser phosphor with Christie BoldColor Technology

    Illumination performance (hrs)

    20,000 hours to 50%

    Scan rates

    Horizontal: 15-91kHz Vertical: 24-85Hz

    Pixel clock rate

    Maximum input pixel rate: 594 Mpix/s (supports 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz over HDMI & DP) | Minimum input pixel rate: 27 Mpix/s (supports 480i @ 60Hz & 576i @ 50Hz

    Signal inputs

    • Standard:
    • - HDMI x 2 (HDMI 2.0b, HDCP 2.2 Compliant)
    • - DVI-D (digital only)
    • - DisplayPort (versions 1.2)
    • - USB x1 (Type A)
    • - HDBaseT (RJ45 x1)
    • Optional:
    • - Terra SDVoE (optional input card)
    • - Wi-Fi® dongle (optional)
    • - 3G SDI (optional input card)
    • - HDBaseT (RJ45)
    • Signals:
    • - Standard video signals up to 4096 x 2160 @ 60Hz (over a single cable; HDMI 2.0 or DP 1.2)

    3D inputs

    • 3D & 2D HFR:
    • - HDMI 1.4, HDBaseT – frame packed, top/bottom, side-by-side (up to 120Hz output); frame sequential at 100P up to 120Hz
    • - Signal input up to 1920 x 1080 @ 120Hz over HDMI, DP and DVI
    • - 3D sync in (BNC) – for genlocking projectors

    Signal outputs

    • - 3GSDI (BNC)
    • - HDMI x1 (HDMI out)

    Control and networking

    • - RS232 In
    • - Control via HDBaseT
    • - Ethernet (10/100) RJ45
    • - Built-in backlit keypad
    • - Wired remote control (3.5mm stereo) - loop out available for daisy chaining

    Warpin​g and blending

    • Standard:
    • - Christie Twist
    • Optional:
    • - Christie Twist Premium and Twist Pro
    • - Christie Mystique™ automated camera-based alignment

    Lens mount

    • - Boresight adjustable
    • - Motorized horizontal and vertical lens offset (memory available)
    • - Motorized zoom and focus adjustment (memory available for full ILS lenses)

    Lens options

    • - 0.38:1 UST lens
    • - 0.85-1.02:1
    • - 1.2-1.73:1
    • - 1.7-2.21:1
    • - 2.21-2.83:1
    • - 2.83-5.66:1
    • - 5.66-10.81:1

    Power requirements

    • Operating voltage:
    • - Normal: 100-240 VAC @ 50/60Hz
    • Power consumption:
    • - Maximum power consumption: 1070W
    • - ECO1 mode (80%): 865W
    • - ECO2 mode (50%): 540W
    • Operating current:
    • - Normal mode: 9.0A ±15% (120 VAC), 4.8A ±15% (220 VAC)
    • - ECO1 mode: 7.2A ±15% (120 VAC), 3.9A ±15% (220 VAC)
    • - ECO2 mode: 4.5A ±15% (120 VAC), 2.45A ±15% (220 VAC)
    • Dissipation:
    • - Normal mode: 3651 BTU/hr
    • - ECO1 mode: 2951 BTU/hr
    • - ECO2 mode: 1842 BTU/hr

    Audible noise

    • - Typical: 39dB(A)
    • - Eco mode: 33dB(A)

    Physical specs

    • - (L x W x H) 23.6 x 20.5 x 8.4" (600 x 520 x 214mm) without feet
    • - Shipping dimensions:
    • - (L x W x H) 35.6 x 29.9 x 14.8" (905 x 760 x 365mm)

    Weight

    • - 74.96 lbs (34 kg)
    • - Shipping weight:
    • - 101.85 lbs (46.2 kg)

    Operating environment

    • - Temp: 0 to 40° C (32 to 104° F)
    • - Humidity: 0 - 85% non-condensing

    Regulatory

    • Contact Christie for the timing of certifications:
    • - UL/CSA/IEC 60950-1 FCC Class A CE FDA CCC KC PSE CU SABS BIS VCCI RCM Ukr TER SASO
    • - This product conforms to all relevant European directives, standards, safety, health and environmental concerns
    • - RoHS REACH WEEE

    Limited warranty

    • - Three years parts and labor on the projector
    • - Three years or 20,000 hours parts and labor on the illumination system*
    • - Contact an authorized Christie representative for full details of our limited warranty
    • - *Please reference the Christie Standard Limited Warranty document for details.

    Accessories

    • Standard:
    • - IR remote w/ wired remote jack (wire not included)
    • - AC line cords for projector head
    • - User manual
    • Optional:
    • - 1DWUSB-BGN (wireless dongle for video and control)
    • - HS fog filter covers + filters (order once per projector then only filters refills)
    • - HS fog filter refills (1 set)
    • - Replacement remote control
