    Interne referentie: CHAMSET10DMXFULL
    Technische Fiche:

    MagicDMX Full

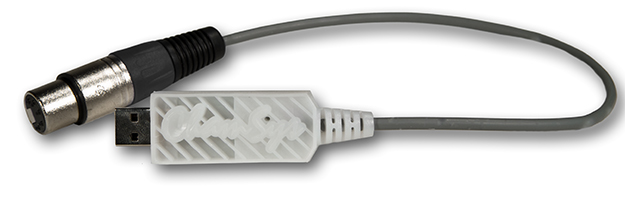

    The MagicDMX Full USB to DMX adapter offers a full universe of DMX output without any time limit. It has the option of being used either as Output, or as an Input enabling use for monitoring DMX.

    Features:

    • One universe DMX output or input
    • 5 pin female XLR
    • USB connector.
    • No time restrictions
    • Basic electrical protection
    • LED status indicator

    Note MagicDMX does not unlock demo mode’ features.  Gender reversing adapters for input not included.

    Overview

    • MagicDMX is an economic, single universe USB to DMX interface in two versions, Basic and Full. It is designed to be used with the free MagicQ software as a way to practice programming and demo the MagicQ software using actual moving lights.; Output or input one universe of DMX - not time limited. Can be used as a DMX test device.
    • USB connector
    • Single DMX output or input - 5 pin
    • Basic electrical protection
    • LED status indicator
    • No time restrictions
    • Input requires gender reverser purchase (sold seperately)
    • Compatible with MagicQ PC on Windows, Mac and Linux based systems - MagicDMX interfaces are not supported on consoles
    • Only 1 MagicDMX Interface supported per system

      Free MagicDMX for students on Lighting Design Courses

      Colleges that run full time Lighting Design Courses where students are expected to have a professional career in lighting, can apply to be part of a program that provides free MagicDMX Basic interfaces to the students.

      Please contact your local distributor or get your course teacher to fill out the MagicDMX Lighting Course Form

    Hardware Specifications:

    • 5pin DMX Connector: Yes
    • Max No of DMX Channels: 512
    • USB-A Connector: Yes
    • RDM Support: No
    • Time Restriction on DMX Output: No
    • Plug and Play (no drivers required): Yes

    MagicQ features restricted when using MagicDMX Interfaces:

    • Execute Window full screen
    • Scheduled Events and Automations
    • iOS / Android Remote app
    • 10Scene Gateway and 10Scene remote app
    • Remote Control Protocol (serial, or network)
    • Web Server editing (viewing is supported)
    • Auto starting Playbacks
    • Startup in full screen / saved window positioning
    • Playback Synchronisation
    • Multi Programming including Net Sessions
    • Triggering of playbacks using DMX input
    • Mouse control of pan/tilt (only supported when connected to a MagicQ Wing with encoders)
    • Audio control and playback synchronisation with Winamp (this is supported when connected via network to a MagicQ console)
    • Timecode receive from ArtNet
    • Midi Notes & Timecode from 3rd Party USB/Virtual interfaces.
    • Audio input from PC/Mac sound card

    Included Accessories:

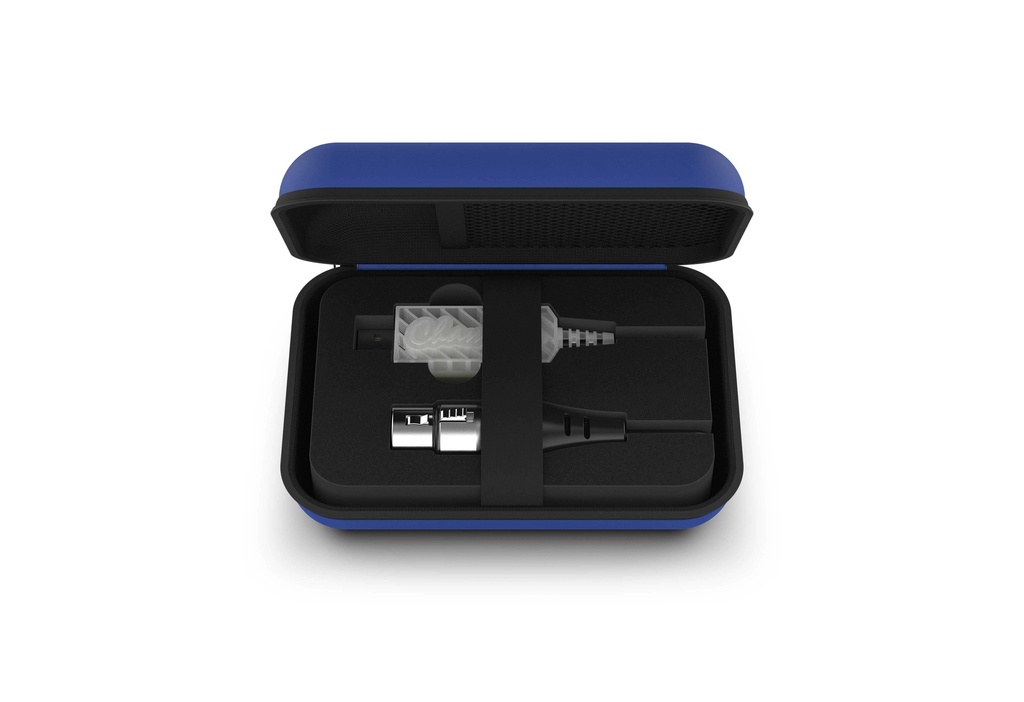

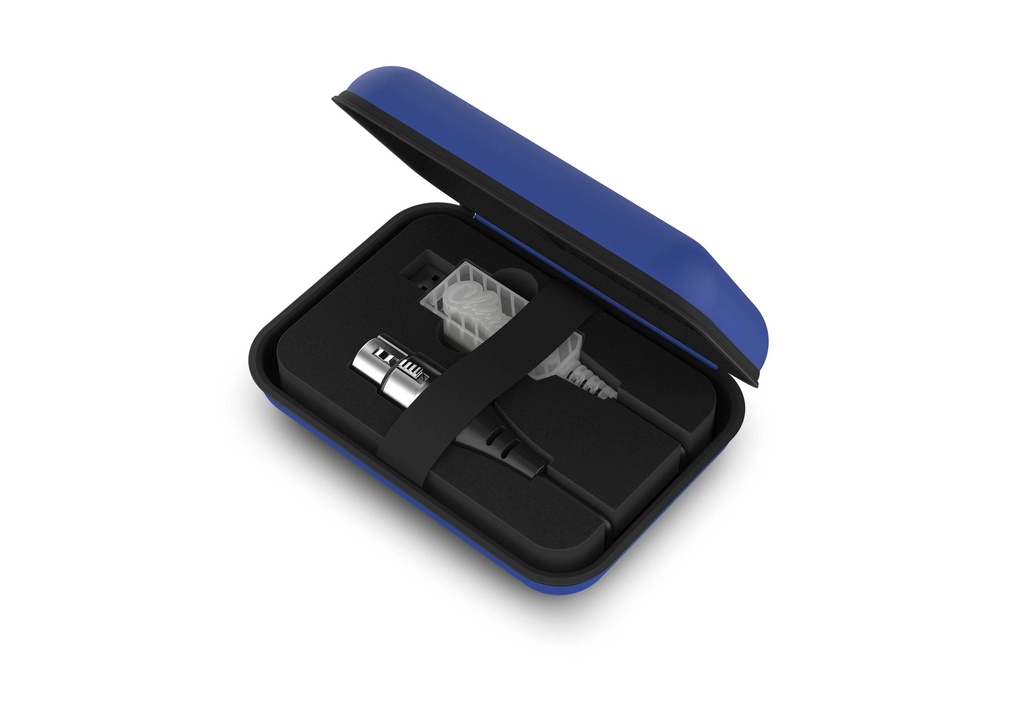

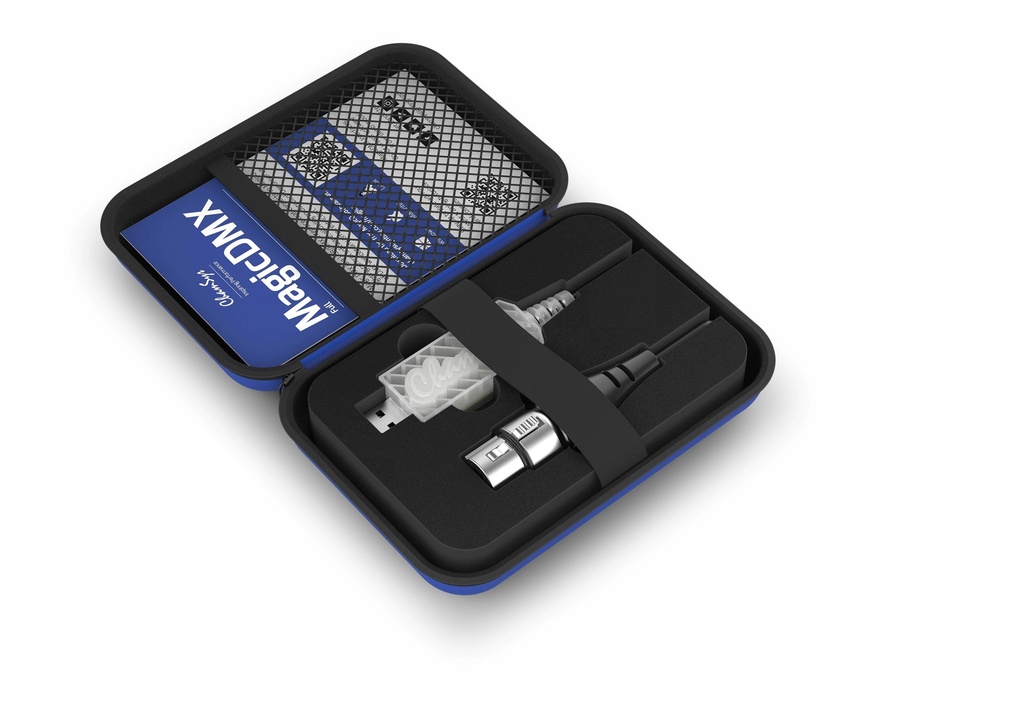

    • Soft Shell Carry Case: 1

    Software Specifications:

    • Max Number of DMX Channels: 32768*via Artnet/sACN
    • Max Number of Fixtures Supported:32768
    • Max Number of Cues: 5000
    • Max Number of Cue Stacks: 2000
    • Max Number of Groups: 5000
    • Max Number of Palettes: 4096
    • Number of Media Server Layers Supported: 50 (each different content)
    • Numbers of Shows: Virtually unlimited

    Cased Weights and Dimensions:

    • Width: 145mm (5.7 inches)
    • Depth: 105mm (4.13 inches)
    • Height: 40mm (1.57 inches)
    • Weight (console in flightcase): 0.3kg (0.6 lb)
