    Interne referentie: CHAMRACKDONGLE
    Technische Fiche:

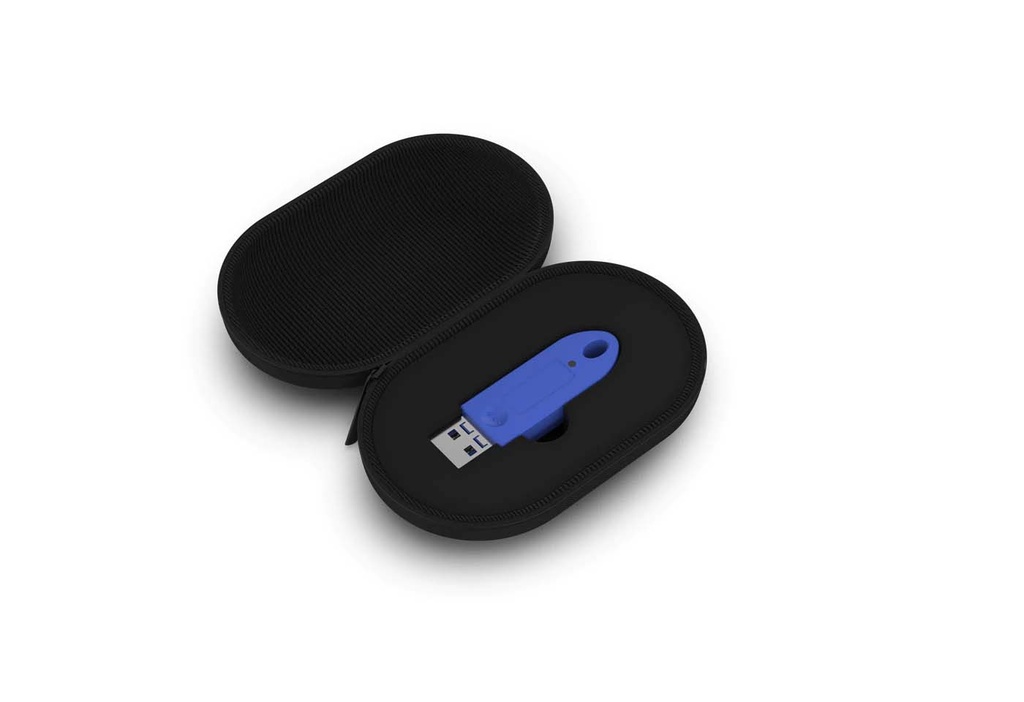

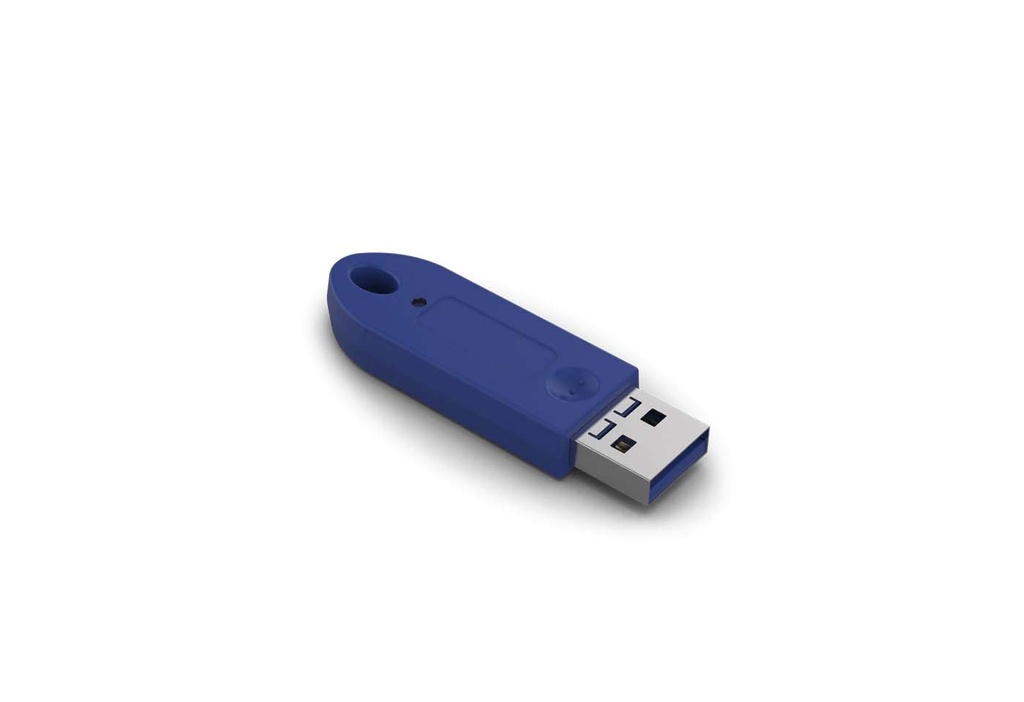

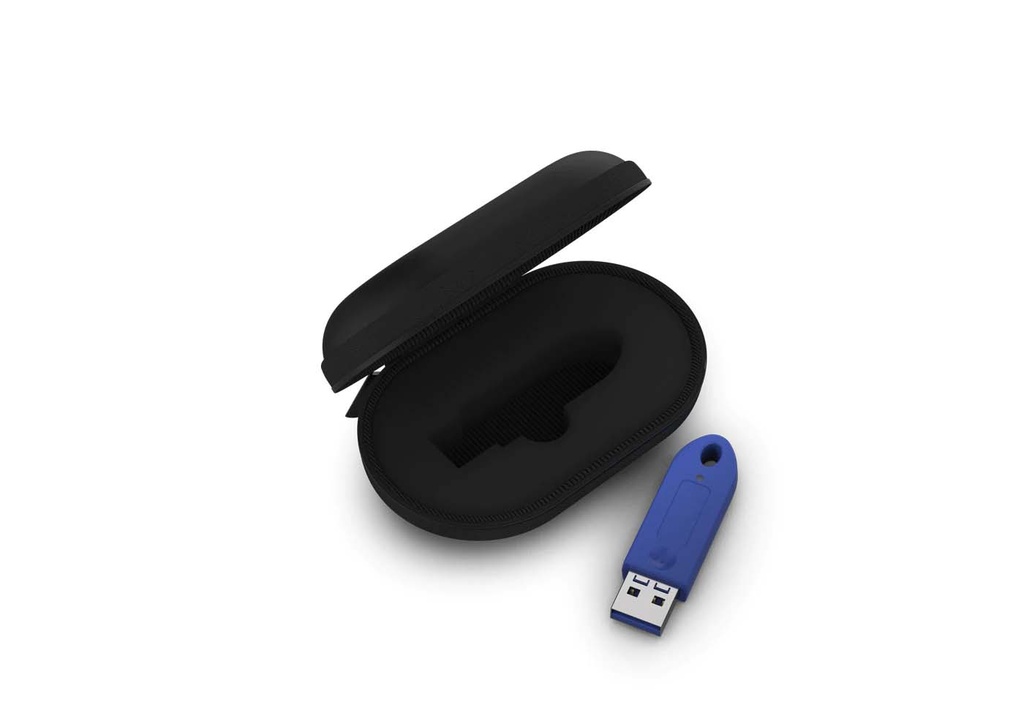

    MagicQ Rack Mount Dongle

    MagicQ Rack Mount Dongle is a USB Dongle that unlocks MagicQ PC systems from 'demo mode' allowing the restricted functions to be accessed.

    MagicQ PC Systems are also unlocked from 'demo mode' when connected to a MagicQ Wing or MagicQ USB Interface (not MagicDMX), The MagicQ Rack Mount dongle performs the same role in a small form factor - ideal for installations.

    The Rack Mount dongle can also be used to unlock all 8 layers of MagicHD stand alone, which is required only when MagicHD is not being controlled by a ChamSys console.

    The Rack Mount Dongle is the same price as the MagicQ Dual DMX Interface, but where the Dongle is small and fits in a rack mounted computer easily, the Dual DMX Interface does not. The Dual DMX Interface however provide two output ports, so customers may find that this a more cost effective solution in some cases.

    As well as unlocking MagicQ PC Systems from 'demo mode' having the rack mount dongle connected also allows the use of 3rd party and virtual MIDI interfaces to input Midi Notes into MagicQ, other ChamSys PC hardware such as the PC Wing, Mini Wing a Dual DMX do not unlocking this functionality.

    Full details of the MagicQ PC restricted functions and what the Rack Mount dongle unlocks are available here

    Note that triggering of Playbacks via USB MIDI is limited to the first 10 playbacks of MagicQ.

    Overview:

    • Stand alone MagicHD mode - 8 layers
    • Scheduled Events
    • Remote control (via iOS, Android, PC, Mac)
    • Audio Input
    • Full Screen Execute
    • Web Server editing (viewing is supported)
    • Autostarting Playbacks
    • Playback Synchronisation
    • Multi Programming
    • Triggering of playbacks using DMX input
    • USB-MIDI Support within MagicQ

    MagicQ Software

    MagicQ software offers powerful lighting control with loads of features that lighting designers have some to rely on, such as full lighting visualisation, pixel mapping, and HD media playback on up to 8 different layers, all integrated smoothly to streamline workflows, save time, and shorten learning curv
