Timecore

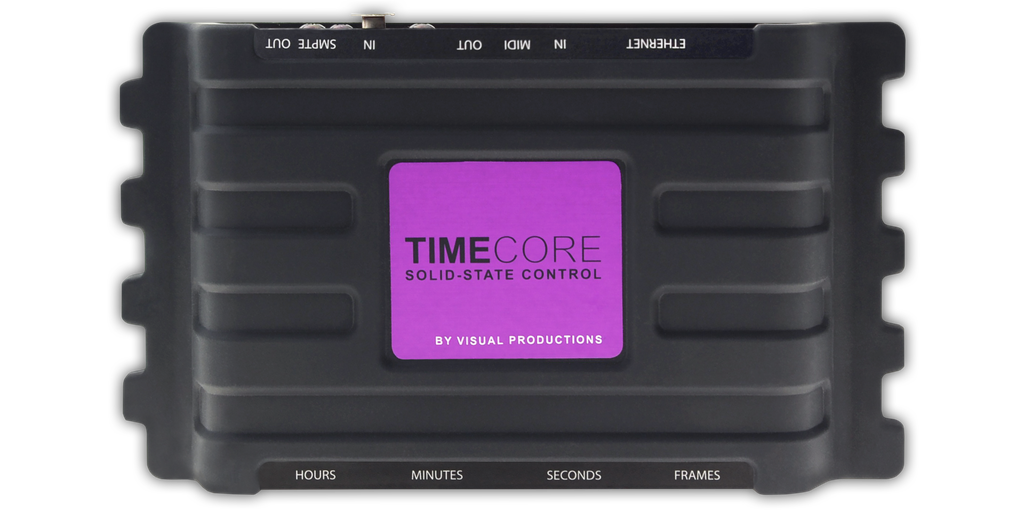

The TimeCore is a compact device that can perform all tasks related to timecode. It can generate, follow, convert and display timecode signals. It even handles a number of non-timecode protocols.

Generating and following timecode

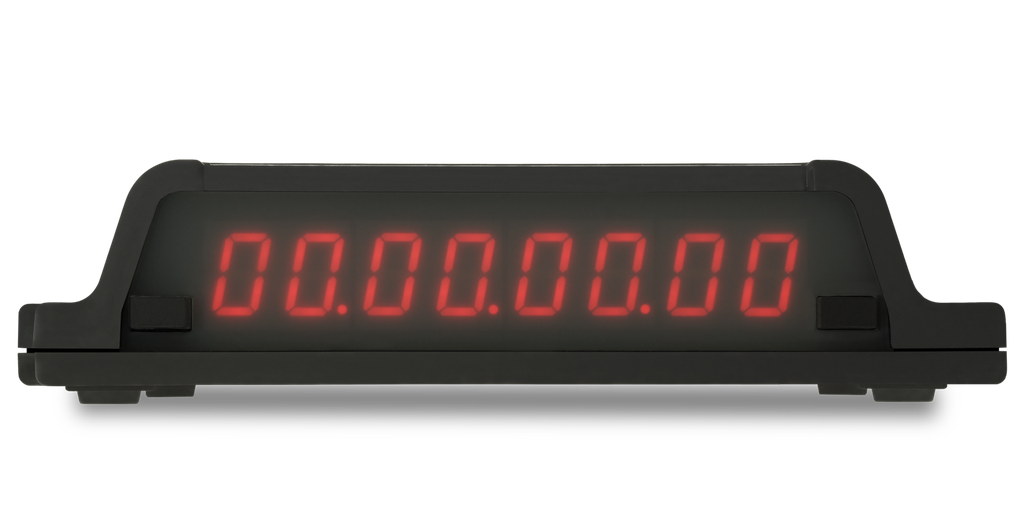

The TimeCore can be set to be a timecode master, in which it will generate a stable timecode signal. Alternatively, the unit can also be set as a timecode slave. A large LED display gives a real-time readout on the current timecode frame.

Converting timecode

The unit supports receiving and transmitting SMPTE (LTC), MTC and a Ethernet-based timecode (Art-Net). The TimeCore is capable of converting between any of these protocols. It can even convert between different frame-rates (24, 25, 29.97, 30).

Ethernet capable

The TimeCore has an Ethernet port that allows you to access the internal web-server. This web-server enables you to fully configure the behaviour of the device.

Show Control protocols

Various protocols that are often found in show control are supported; for instance UDP, TCP, OSC and MIDI. Any messages received from these protocols can be used to start, stop or manipulate the timecode. Furthermore, sending out these protocols Cbe mapped on the timeline.

Lighting Protocol

The TimeCore speaks lighting languages like Art-Net and sACN. The unit can directly interact with your lighting desk.

Web-interface Home page

The TimeCore can be set to be a timecode master, in which it will generate a stable timecode signal. Alternatively, the unit can also be set as a timecode slave. A large LED display gives a real-time readout on the current timecode frame.

Specifications

  • Timecode master, slave & converter
  • Timecode display
  • 2 user-definable push-buttons
  • SMPTE LTC
  • MTC MIDI timecode
  • Art-Net timecode
  • TCP
  • UDP
  • OSC
  • Art-Net
  • sACN
  • MIDI notes, MMC, MSC
  • Show Control function
  • Compatible with Kiosc
  • Desktop or DIN Rail mounted
  • PoE Class I
