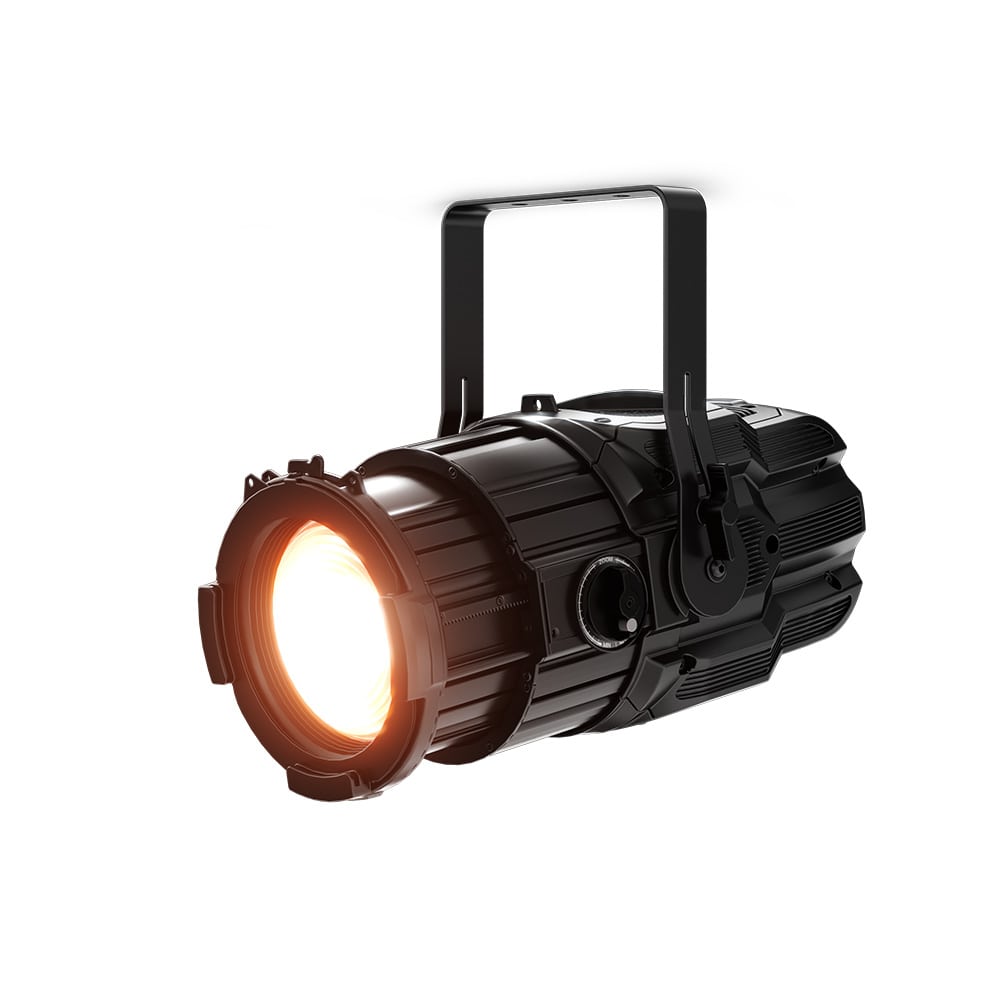

DTS - Tenore 5 HQS Fresnel


    Deze combinatie bestaat niet.


    Prijzen exclusief btw
    Algemene voorwaarden

    Interne referentie: 03.TTN100.49.F
    Technische Fiche:
    Extra Info:


    The new high-power conventional projector with Fresnel or PC lens,
    multi-chip source and Italian design.
    High performance and low noise.


    multi chip LED Source

    Ø 175 mm Fresnel lens

    superior white light quality and precise color rendering

    extensive colour palette, wide range of pastel colors

    linear CCT

    noise management

    Green – Magenta linear balance,
    for a natural reproduction of any skin tone

    Technical data

    TENORE 5 HQS is the un-conventional evolution to the conventional series of static LED lights. With a lumen output up to 9,300 lm, Tenore 5 HQS represents a perfect example of uncompromising professional lighting performance.
    Thanks its multi-chip source, this conventional projector offers superior light quality, both white, with an optimal color rendering up to 98, and in color creation. The HQS mark (High Quality Spectrum - DTS trademark) is for DTS a guarantee of the ability to generate quality whites, a wider color palette with a range of pastel shades and rich warm nuances.
    To meet the needs of theater and television locations, Tenore allows noise control with 4 fan management modes up to 26dBA.


    • Multi chip LED Source

    • Lumens output: 9,300 lm (Fresnel lens)

    • Lumens output: 6,300 lm (PC lens)

    • CRI: up to 98

    • TLCI: up to 96

    • LED Lifespan: 20,000 hours
    (70% lumen output)

    Optical group

    • Ø 175 mm Fresnel lens or Antihalo (PC) lens

    • Ø 150 mm Antihalo (PC) lens

    • Linear zoom
    - 12° - 62° with Frensel lens
    - 6.5° - 45° with PC lens

    Color & White generation

    • 6-color LED engine

    • Linear CCT (1800 K - 10000 K)

    • Linear ‘Green saturation’

    • 100 gel filters emulation:
    - Linear crossfade from gel filters emulation to CCT whites
    - Linear crossfade between emulated gel filters
    - True color of gel filters emulation at any CCT values

    • “Raw” RGBACL color-mixing in Advanced’ mode


    • ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values

    • Tungsten emulation - CCT variation emulates behavior of Halo-lamps


    • LCD graphic display + Jog Shuttle

    • RDM/DMX 512 protocols

    • ‘Standard’, ‘Silent’, ‘Ultra Silent’ and ‘Automatic’ fan modes

    • Noise level
    - Standard: 34dBA @ 1m (normal operation, 100% power)
    - Silent: 29dBA @ 1m (normal operation, 87% power)
    - Ultra Silent: 26dBA @ 1m (normal operation, 70% power)
    - Automatic: fans adapt to operational status (output power priority)

    • Firmware updatable via DTS firmware uploader dongle


    • 5 DMX modes:

    CCT (Default) - Correlated Color Temperature
    Advanced - Correlated Color Temperature + Raw control for color channels RGBACL
    Basic - Correlated Color Temperature with priority on Gel Library and RGBACL color
    Expo - Dimmer 8 bit; Correlated Color Temperature priority on Gel Library
    CMY Emulation - Cyan, Magenta, Yellow and CTO emulation Mode

    Power supply

    • Wide range100/240 Vac 50-60 Hz

    • Power consumption: 390 W max / 230Vac

    • Power Factor: PF >0.94


    • DMX: XLR 5 pole In/Out panel connectors

    • Power supply: PowerCON TRUE1 In/Out panel connectors

    Circuits protections

    Overvoltage and overtemperature circuits protection

    Operating temperature

    -10° / 45° C

    Storage temperature

    -20° / 60° C


    • IP20

    • Weight:
    - FR - 9.3 Kg (20.5 lbs)
    - PC - 10.4 Kg (22.9 lbs)

    • Finishing: Black

    Accessories included

    • 1x PowerCON TRUE1 female cable connector (code 0520P066)

    • 1x XLR 5 pins female cable connector (code 0508B147)

    • 1x XLR 5 pins male cable connector (code 0508B148)

    • 1x Filter frame Black finishing - already installed on the projector (code 02M093424.49)

    Accessories on request

    • Barndoor 4 leaf Black finishing (code 03.TBD07.49)

    • Barndoor 8 leaf Black finishing (code 03.TBD09.49)

    • Outdoor DMX cable 2 x 0,25 mm2 - Flame retardant (code 0509C158)

    • Aliscaf clamp for Ø 48-51 mm tube-max load 100 Kg 8code 0521A033)

    • Professional G-QUICK clamp - max load 100 Kg (code 0521A037)

    • Safety cable 3 x 600 mm - BGV-C1 certified (code 0521A049)
    - Single stranded: Max 20 Kg (44 lbs)
    - Double stranded: Max 30 Kg (66 lbs)

    • Safety cable for Barndoor / FIlterframe - Ø 0,8mm (code 0521A048)

    • DTS firmware uploader dongle (code 03.LA.206)
